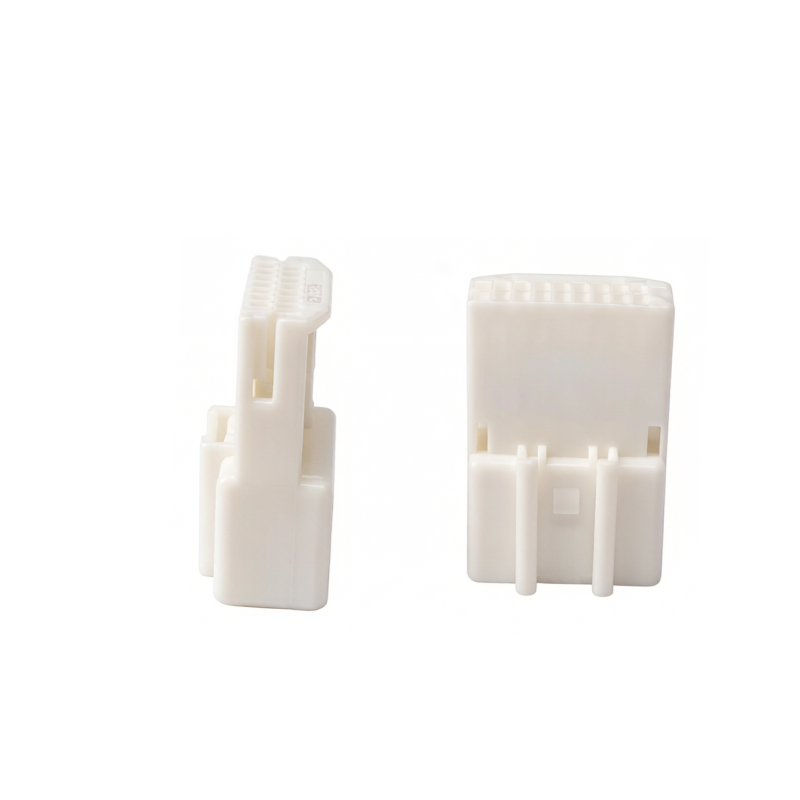

[1565380-1] 2.2Pitch 16P Wire End Female Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

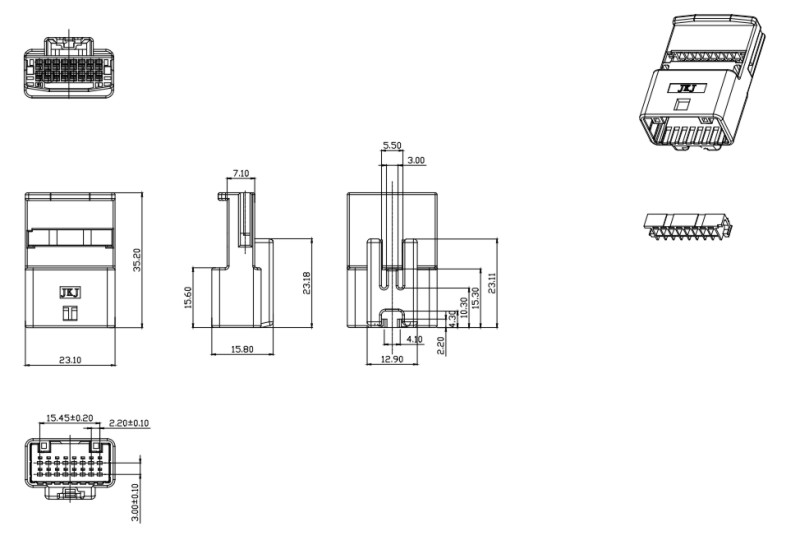

Drawing/Model

Product Features

This 2.2 Pitch 16P Wire End Female Housing features a compact dual-row layout with a secure locking mechanism that produces audible feedback upon full engagement, providing immediate assembly verification without requiring visual inspection of the connector interface. The housing is molded from UL94 V-0 rated material, meeting stringent flammability requirements for electronic enclosures in both automotive and consumer product applications where fire safety is a regulatory concern. Terminal retention force is engineered to withstand vibration levels typical of automotive and industrial environments, preventing contact displacement that could cause intermittent circuit operation and system malfunctions. Molded polarization ribs on the mating interface prevent mismating with male housings of similar appearance but different circuit configurations, a critical safeguard in multi-connector installations. The housing accommodates an optional secondary lock insert for applications requiring extra terminal retention assurance. A natural finish facilitates visual inspection of terminal seating during quality control processes, while color-coded variants are available for circuit identification strategies that reduce assembly errors in complex harness manufacturing environments.

Application Scenarios

The 2.2 Pitch 16P Wire End Female Housing is extensively used in automotive lighting assemblies, including headlight clusters, tail lamp modules, and daytime running light units, where it connects power feeds and control signals from the body controller to the lighting electronics that must operate reliably in all weather conditions. Its sixteen circuit positions accommodate the multiple channels typically required for modern adaptive lighting systems that incorporate directional beams, cornering lamps, and automatic leveling actuators. Medical device manufacturers incorporate this housing in infusion pump systems and portable diagnostic instruments, where reliable low-voltage connections are critical for patient safety and regulatory compliance. Industrial packaging machinery also utilizes this connector for organizing sensor and actuator wiring within limited panel space where connector density must be maximized. The female cavity design accepts industry-standard crimp terminals, enabling straightforward harness fabrication with widely available tooling and established production processes. Compact dimensions allow multiple housings to be positioned adjacent to one another on the same PCB header footprint, supporting modular system architectures that require multiple identical or functionally grouped connections within a limited panel area.

Why Choose [1473410-1] 2.2Pitch 16P Wire End Female Housing

• 16-position female housing of this 2.2Pitch 16P Female Housing strikes a practical balance between circuit count and manageability for a wide range of harness needs.

• Secure locking design of this Wire End 16P Female Housing maintains reliable mating under vibration, changes, and repeated cycles typical of vehicle operation environments.

• Precision-molded dimensions of this 2.2Pitch 16P Female Housing ensure consistent terminal alignment, reducing resistance variation and supporting predictable electrical performance.

• Compatible with the broad pitch terminal ecosystem, this 16P Female Housing enables flexible gauge selection and simplified manufacturing tooling requirements.

• Established product with proven field performance, this 2.2Pitch Wire End 16P Female Housing has professional technical service and reliable volume supply for programs.
