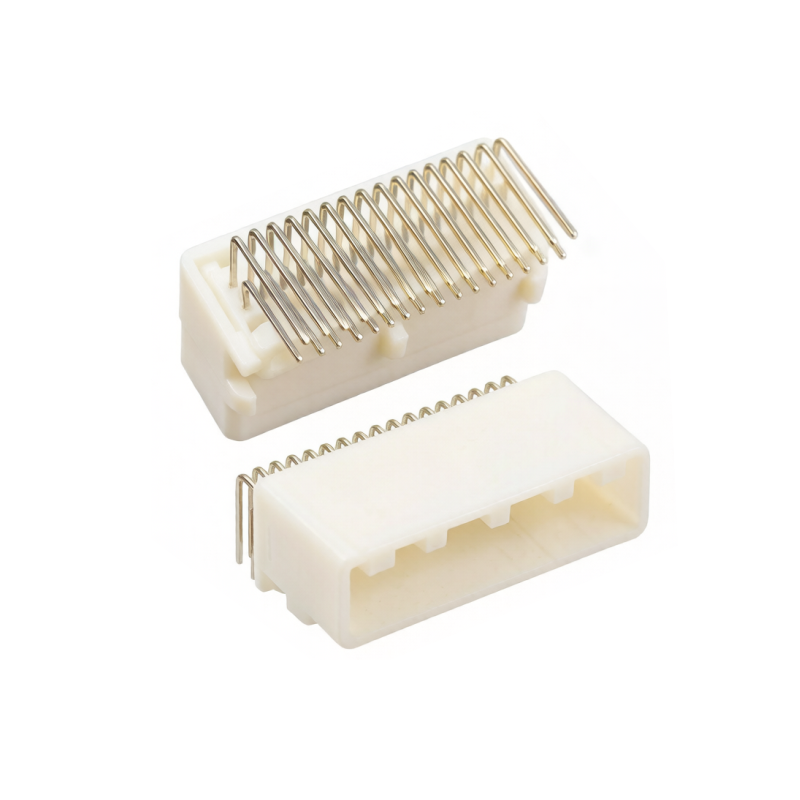

[1318745-5] 2.2Pitch 32P Board Connector

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

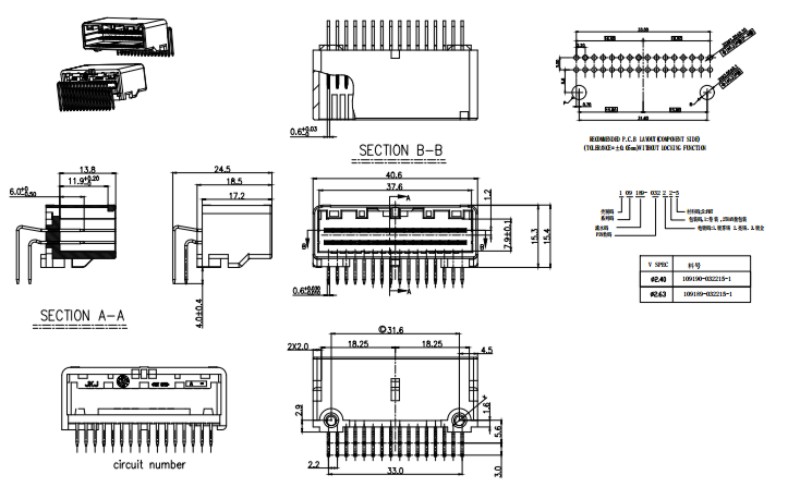

Drawing/Model

Product Features

This 2.2 Pitch 32P Board Connector features a dual-row contact arrangement with molded polarization ribs that prevent misalignment during mating, protecting contacts from damage caused by off-center insertion attempts. The housing is constructed from UL94 V-0 rated thermoplastic, providing self-extinguishing properties that enhance fire safety in enclosed electronic assemblies where multiple heat-generating components operate in close proximity. Contacts are fabricated from phosphor bronze with selective gold plating in the contact zone, balancing low mating force with high durability across thousands of engagement cycles required in field-serviceable equipment. A locking ramp integrated into the housing ensures secure retention when mated with the corresponding wire-end housing, resisting disengagement from vibration or accidental pull forces during maintenance operations. The staggered contact layout reduces near-end crosstalk between adjacent signal pairs, improving signal integrity in high-speed data applications. An optional secondary lock insert provides an additional layer of terminal retention assurance, preventing contact back-out that could cause intermittent failures. The connector's solder tails are designed for reliable wave soldering or press-fit insertion into plated through-holes.

Application Scenarios

The 2.2 Pitch 32P Board Connector serves as a high-density board-to-wire interface in industrial automation controllers, programmable logic controller modules, and distributed I/O systems where numerous sensor and actuator signals converge on a single circuit board and must be routed efficiently to processing elements. Its thirty-two contact positions enable dense wiring consolidation, significantly reducing the number of individual connectors required and simplifying overall harness design and assembly. In medical equipment such as patient monitoring systems and diagnostic imaging workstations, this connector provides reliable signal pathways for biometric sensors, display interfaces, and control circuits that must operate continuously without intermittent connections. The compact pitch conserves valuable PCB real estate, allowing designers to allocate more board area to processing, memory, and communication components rather than connector footprints. Automotive body control modules also employ this connector to aggregate door lock, lighting, and window motor circuits into a unified interface that reduces wiring complexity and vehicle weight. In telecommunications infrastructure, it connects line cards to backplanes in switching equipment, supporting both signal and power distribution through a single connector system.

Why Choose [1318745-5] 2.2Pitch 32P Board Connector

• 32-position contact array at a compact pitch on this 2.2Pitch Board Connector maximizes circuit density on PCB layouts, reducing area consumption in space-critical designs.

• Robust housing construction and terminal retention of this 32P Board Connector ensure consistent electrical contact through thousands of mating cycles in production environments.

• Designed for reliable board-to-wire connectivity in automotive modules, this 2.2Pitch Board Connector offers stable signal transmission under vibration and thermal cycling.

• Standardized contact pitch of this 32P Board Connector enables compatibility with widely available crimp terminals and housings, simplifying procurement and inventory management.

• Supported by mature connector documentation and application engineering resources, this 2.2Pitch 32P Board Connector accelerates integration into new system developments.
