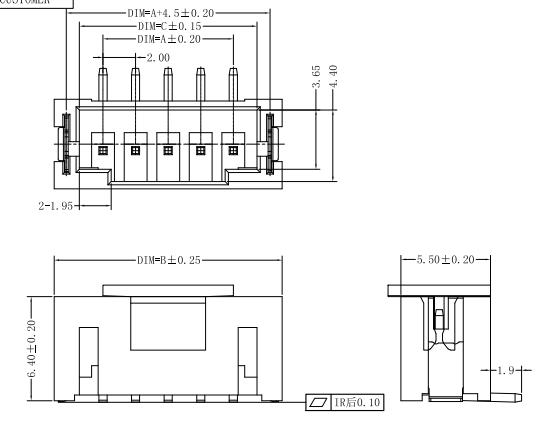

103097-***111-2
| Current Rating：2A | Insulation Resistance：1000MΩ/min |
| Voltage Rating：250V | Withstand Voltage：800 V AC / 1 minute |
| Contact Resistance：≤20mΩ | Operating Temperature Range：-40℃~+105℃ |
| Plastic maerial：LCP Natural UL94V-0 | Terminal material：H65 |
tape and reel、 tube packaging、Tape and Reel Package
Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact
customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.
Housing — LCP in natural color, rated UL94 V-0. The material keeps its shape through reflow and limits flame spread, supporting automated assembly.
Contacts — H65 brass with a nickel underplate of at least 30 micro-inches and a tin finish of at least 100 micro-inches (matte or bright); the contact face is gold plated for low, stable resistance.
Electrical — Rated 2.0A per contact at 250V AC/DC, with contact resistance at or below 20 milliohms and insulation resistance of 1000 megohms minimum.
Environmental — Withstands 800V AC for one minute and operates from -40C to +105C.
Termination — Surface-mount terminals support pick-and-place and reflow, with a tin finish suited to standard solder processes.
A pocket audio device stacks a main board and a key board inside a 1.5mm clearance. Right-angle sockets exceed the budget and force a larger shell. The 2.0mm Pitch Vertical SMT Pin Socket fits the gap with its upright body, while gold-plated contacts keep signal clean across the hinge flex zone. Reflow assembly places it in one pass with the other parts.
Scenario 2: Industrial Sensor Module - Throughput
A sensor line needs high-volume PCB assembly without selective wave soldering. Through-hole sockets slow the line and add cold-joint risk. Mounting the 2.0mm Pitch Vertical SMT Pin Socket by reflow lets pick-and-place set it beside ICs in a single pass, and the LCP UL94 V-0 housing holds tolerance through the heat.
Scenario 3: Light Automotive Telematics - Temperature
A telematics control unit sits in a cabin that sees -40C to +105C across seasons. Connectors that drift at temperature cause intermittent drops. The 2.0mm Pitch Vertical SMT Pin Socket is rated across that band, and its nickel-underplated H65 contacts resist oxidation that would raise contact resistance over time.
Reel-ready SMT build — The LCP body and vertical terminal form suit standard pick-and-place and reflow, so the part drops into existing automated lines without secondary soldering.
Stable contact plating — Gold on the contact face over a nickel barrier gives steady mating resistance and protects against oxidation through repeated mating cycles.
Thermal stability — LCP in natural color with UL94 V-0 rating keeps the housing dimensionally stable during reflow and limits flame spread in the end product.
Height-saving form — A vertical body saves board height where a right-angle link would exceed the enclosure budget, supporting denser stacked layouts.
Q: Where does the 2.0mm Pitch Vertical SMT Pin Socket mount on the board?
A: It mounts on the PCB surface by reflow, standing upright, so the mating face points up from the board for straight-through connection to 2.0mm pitch headers.
Q: Can the 2.0mm Pitch Vertical SMT Pin Socket handle 250V?
A: Yes. It is rated 2.0A per contact at 250V AC/DC, with 800V AC dielectric withstand for one minute and 1000MΩ minimum insulation resistance, covering signal and low-power distribution tasks.
Q: Is the 2.0mm Pitch Vertical SMT Pin Socket housing flame rated?
A: Yes. The housing is LCP in natural color and meets UL94 V-0, which limits flame spread and holds the part's shape through reflow soldering and in the finished device.
Q: Does gold plating on the 2.0mm Pitch Vertical SMT Pin Socket lower contact resistance?
A: The contact face is gold plated over a nickel underplate, which helps keep contact resistance at or below 20mΩ and slows oxidation across repeated mating cycles in field use.
