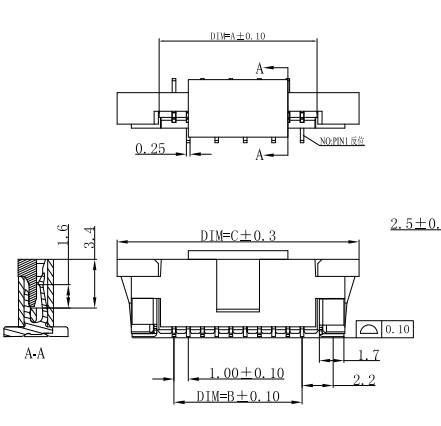

101097-****111-1
| Current Rating：1.0 A | Insulation Resistance：800MΩ/min |
| Voltage Rating：50 V | Withstand Voltage：200 V AC/min |
| Contact Resistance：≤40mΩ | Operating Temperature Range：-40℃~+105℃ |
| Plastic maerial：LCP Natural UL94V-0 | Terminal material：CuSn |
tape and reel、 tube packaging、Tape and Reel Package
Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact
customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.
**Vertical insertion** — The flex plugs straight down into the body instead of entering from the side, so the board's edge stays clear for other parts and the link fits stacks where the flex must approach from above.
**Bottom-contact routing** — The contacts engage the flex pads from below, routing the cable under the connector. This keeps the assembly flat and suits boards where the flex must run close to the PCB surface.
**Locking with cover** — A lock secures the seated flex against pull and vibration, while a cover closes over the entry to protect the contacts from handling damage and guide the next insertion. The pair gives repeatable mating without extra tooling.
**Stacked consumer modules** — In a thin handheld or wearable, the flex drops in from the top to a daughter board; the bottom-contact routing keeps the link flat and the cover protects contacts during battery or module swaps.
**Display and touch links** — Flat-panel and touch modules route their flex vertically into the driver board, holding z-height down so the bezel stays slim while the lock survives repeated service.
**Compact control boards** — Small controllers use the 1.0mm pitch to fit several signals on a short edge, with the cover guarding the contact area in dusty or handled environments.
**Connector specialist since 2000** — Shenzhen Jinkeji Technology Co., Ltd. has manufactured connectors and wire harnesses since 2000, covering tooling through finished parts.
**Certified quality system** — Production runs under ISO 9001 and IATF 16949, supporting both consumer and automotive-grade programs on the same lines.
**Full in-house chain** — In-house tooling, stamping, and molding let one facility take a flex connector from drawing to shipment, shortening lead time on custom pitches.
**Q: Is the FPC inserted from the top on this connector?**
A: Yes. The FPC 1.0mm Pitch Vertical Bottom Contact Locking With Cover Connector takes the flex straight down into the body, so the board edge stays open for neighbouring parts and the link suits stacks that feed the flex from above.
**Q: Which contact face does the flex meet inside the connector?**
A: The contacts sit below the flex path, so the FPC pads meet them from underneath. The cable then routes under the connector, keeping the assembly flat against the PCB.
**Q: What keeps the FPC from pulling out after seating?**
A: A lock holds the seated flex against pull and vibration, and the cover closes over the entry to protect the contacts and guide re-insertion, giving repeatable mating without tools.
