High-Performance FPC Connectors for High-Density Electronics
As modern electronics continue to evolve toward miniaturization and ultra-high-speed data processing, FPC Connectors (Flexible Printed Circuit Connectors) play a critical role in enabling stable signal transmission in compact electronic architectures.
At Shenzhen JinKeJi Electronic Co., Ltd, we specialize in the design and manufacturing of high-precision FPC interconnect solutions for demanding industrial, consumer, medical, and automotive applications. Our products are engineered to support ultra-fine pitch layouts, high-speed transmission, and long-term mechanical reliability in space-constrained environments.
Technical Specifications Overview
Our FPC Connectors are engineered with advanced materials and precision manufacturing processes to ensure superior electrical and mechanical performance.
| Parameter | Specification |
|---|
| Pitch Range | 0.3mm – 1.25mm |
| Pin Count | 4 – 64 positions |
| Profile Height | 0.6mm – 1.0mm ultra-low profile |
| Data Rate | Up to 80 Gbps (PAM4) |
| Insulator Material | High-performance LCP (Liquid Crystal Polymer) |
| Contact Material | Gold-plated phosphor bronze terminals |
| Contact Resistance | ≤ 20mΩ |
| Insulation Resistance | ≥ 100MΩ |
| Operating Temperature | -40°C to +125°C |
| Mating Durability | Up to 10,000 cycles |
These specifications ensure reliable performance under high-speed, high-frequency, and thermally demanding environments.
Engineering Advantages
Our FPC Connector solutions deliver significant design and performance benefits for next-generation electronics:
Reduced footprint by 40–60% compared to conventional connectors
Optimized for ultra-high-density PCB integration
Optional EMI shielding to minimize crosstalk and signal interference
High resistance to thermal shock and continuous vibration environments
Stable performance under high-speed PAM4 data transmission
These advantages enable engineers to achieve higher integration density without compromising signal integrity or mechanical stability.
Application Benefits
By adopting JinKeJi FPC Connectors, manufacturers can significantly improve product competitiveness and design flexibility:
Maximize internal space for larger batteries and advanced sensors
Enable thinner, lighter, and more compact device architectures
Improve signal reliability in high-speed digital systems
Reduce design iteration cycles and accelerate time-to-market
Our solutions are widely used in smartphones, wearable devices, portable medical instruments, automotive electronics, and industrial control systems.
Application Engineering Support
We provide engineering-level support for integration into:
High-speed consumer electronics
Medical diagnostic and monitoring equipment
Automotive infotainment and control modules
Industrial automation and smart sensing systems
Each solution is optimized for mechanical stability, electrical integrity, and long-term durability in real-world operating conditions.
Company Capability Statement
Shenzhen JinKeJi Electronic Co., Ltd is a professional manufacturer specializing in high-precision electronic connectors and interconnect systems. With strong R&D capabilities and advanced automated production lines, we focus on delivering stable, high-performance connectivity solutions for global customers across electronics, automotive, and industrial sectors.
Our engineering-driven approach ensures consistent quality, scalable production, and reliable support for both prototyping and mass production requirements.Please contact our technical sales team today to discuss specifications and request a custom quotation.
FPC Connectors FAQ
What defines your FPC Connector performance standard?
Our connectors are built with ultra-fine pitch structures, LCP insulation, and gold-plated terminals to ensure high-speed PAM4 transmission up to 80Gbps with stable electrical performance.
Do your connectors support miniaturized designs?
Yes, our products are optimized for 0.3mm pitch and ultra-low profile heights, enabling significant PCB space reduction and higher component density.
How do you ensure signal integrity?
We utilize low-resistance contact structures, EMI shielding options, and precision manufacturing controls to minimize interference and maintain stable transmission quality.
Where are these connectors typically used?
They are widely applied in smartphones, wearable devices, medical electronics, automotive systems, and other compact high-speed electronic devices.

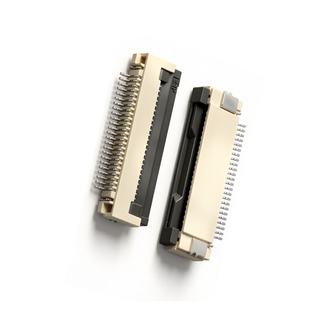

![[FH28-**S-0.5SH(**)] 0.5Pitch H2.55 Flip-Cover Connector](http://iororwxhimpllk5p-static.micyjz.com/cloud/lrBpkKlmliSRolkpjirkkq/29-FH28-S-0-5SH-640-640.png)
