FPC 1.0mm Pitch 2.0H Drawer Top Contact Full Shield

The FPC 1.0mm Pitch 2.0H Drawer Top Contact Full Shield connector sits in the 1.0mm flexible-circuit class, where board space is tight but the link still has to survive heat, vibration, and electrical noise. Its slide-in drawer actuator lets the flex cable seat without force, then clamps it through a black LCP latch that holds through repeated service. Contacts are stamped from phosphor bronze and finished in gold, which keeps the contact resistance near 40 milliohms initial and supports stable signal over the rated 0.5A per pin. The full-shield housing wraps the contact area to limit EMI onto neighboring traces, a practical choice for display and control boards that run close to RF or switching sections. An operating range of -40 to 105°C lets the part serve both consumer enclosures and harsher industrial settings. With a 50V rating and 200VAC withstanding voltage, it covers the usual low-power flex interconnects found in panels, sensors, and portable instruments.

Availability:



Inquire Add to Basket

Model:
101002-******-2

Wafer connector‌ Wire-to-Board Connector Board-to-Board Connectors Wire-to-Wire Connector FAKRA Connectors HSD Connectors vertical connector Horizontal Connector

Product Description

Specifications

Current Rating‌：0.5 A	Insulation Resistance‌：800MΩ/min
Voltage Rating：50 V	‌Withstand Voltage：200 V AC/min
Contact Resistance‌：≤40mΩ	Operating Temperature Range‌：-40℃~+105℃

Material

Plastic maerial‌：LCP Natural UL94V-0

Terminal material：Phosphor Bronze, Gold Plated

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact

customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

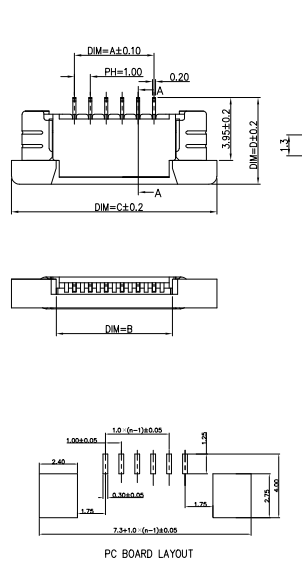

Drawing/Model

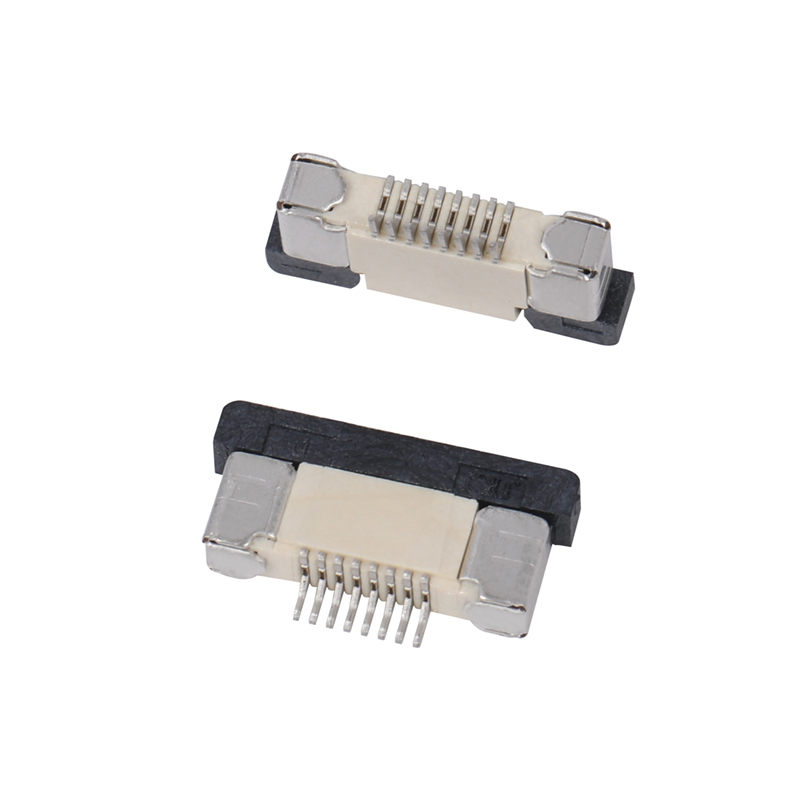

FPC 1.0mm Pitch 2.0H Drawer Top Contact Full Shield

Product Features

The FPC 1.0mm Pitch 2.0H Drawer Top Contact Full Shield connector pairs a slide-in drawer with a fully shielded body for low-profile flexible-circuit links.

Drawer Actuation — A slide drawer opens the contact gap so the FPC inserts with near-zero force, then closes to clamp the flex in place through the black LCP latch.

Top Contact Face — The flex-circuit pads meet contacts on the upper side, so the gold finish faces up toward the cable and the housing underside stays flush to the board.

Full EMI Shield — A metal shield with a tin-plated copper grounding tab wraps the contact cavity to reduce radiated noise coupling into adjacent circuits, useful where the connector sits near RF or power stages.

Gold-Plated Phosphor Bronze — Stamped phosphor bronze terminals carry a gold finish, holding contact resistance at 40 mΩ max initial across the 0.5A per-pin rating.

LCP UL94V-0 Housing — The black LCP mold meets the UL94V-0 flame class and keeps its shape through reflow, with the integrated lock giving tactile retention.

Wide Thermal Range — Rated for -40 to 105°C operation, the part fits both indoor consumer gear and outdoor or industrial enclosures.

Application Scenarios

The FPC 1.0mm Pitch 2.0H Drawer Top Contact Full Shield connector fits link paths where a flexible circuit must cross from a display or sensor to a main board.

Display and Control Panels — On an industrial HMI or instrument front panel, the connector carries the flex from the LCD to the main board; the full shield cuts EMI onto display signals while the drawer lets technicians swap the flex without tools.

Portable and Outdoor Sensors — Battery-powered loggers and outdoor modules use the -40 to 105°C range and 50V rating, where the LCP latch keeps the link seated through temperature swings and light shock.

Why Choose FPC 1.0mm Pitch 2.0H Drawer Top Contact Full Shield

The FPC 1.0mm Pitch 2.0H Drawer Top Contact Full Shield connector is built to a fixed specification, so the material and rating choices below stay consistent across production.

Phosphor Bronze with Gold Finish — Terminals are stamped from phosphor bronze and gold plated, holding initial contact resistance at 40 mΩ max and supporting the 0.5A per-pin current rating.

LCP UL94V-0 Molded Housing — The black LCP body meets the UL94V-0 flame class and keeps its shape through reflow, with an integrated latch for repeatable retention.

Full-Shield EMI Enclosure — A full metal shield with a tin-plated copper grounding tab wraps the contact area to reduce radiated coupling, allowing placement near sensitive or noisy circuitry.

Fixed Electrical Specification — As specified, the connector is rated 50V AC/DC, 200VAC withstanding voltage, 800 MΩ min insulation resistance, and -40 to 105°C operation.

FAQs

Q: What pitch and height does this FPC connector use?

A: The connector uses a 1.0mm contact pitch with a 2.0mm stacked height (2.0H). This profile fits boards where the flexible circuit must lie close to a parallel PCB without raising the enclosure wall.

Q: Does top contact mean the flex pads face up inside the connector?

A: Top contact means the flex-circuit gold pads face upward and meet the upper contact row when the drawer closes. The cable enters from the top, and the black LCP latch clamps it against the upper terminals.

Q: How is the FPC inserted and locked in this drawer connector?

A: The FPC slides into the open drawer with little insertion force, then the actuator is pushed shut to clamp the flex through the LCP latch. Opening the drawer releases the cable for reseating.

Q: What are the electrical and temperature ratings of this connector?

A: The FPC 1.0mm Pitch 2.0H Drawer Top Contact Full Shield is rated 50V AC/DC at 0.5A per pin, with 200VAC withstanding voltage and 800 MΩ min insulation resistance. It operates from -40 to 105°C.
