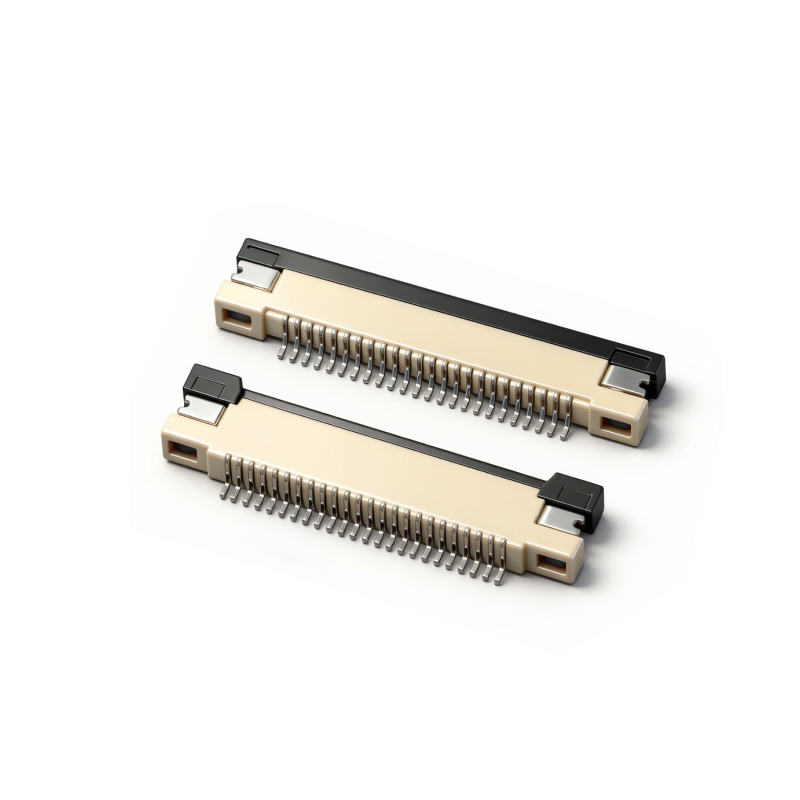

0.5Pitch SMT FPC Connector

FPC 0.5mm Pitch 2.0H Drawer Top Contact Full Shield answers that need as a fine-pitch flex connector built on a pull-out drawer actuator. Inserting the FPC is a straight push-pull motion — the contact drawer slides out, the cable seats, and it slides back to lock, so there is no flip lever requiring swing clearance above the board. Its top-contact arrangement routes the flex pads upward, which suits layouts where the cable exits over the connector, while the fully shielded housing contains EMI for adjacent high-speed lines. At a 2.0 mm stack height and 0.5 mm pitch, it targets compact consumer, display, and industrial assemblies where board edge and z-height are both tight.

Availability:



Inquire Add to Basket

Model:
18、101002-******-1

Wafer Connector FPC connector Wire-to-Board Connector Board-to-Board Connectors Wire-to-Wire Connectors FAKRA connector HSD Connector

Product Description

Specifications

Current Rating‌：0.5A	Insulation Resistance‌：500MΩ
Voltage Rating：50V	‌Withstand Voltage：200V AC/min
Contact Resistance‌：≤40mΩ	Operating Temperature Range‌：-40℃~+105℃

Material

Plastic material‌：PPS，UL94V-0

Contact Material：Phosphor Bronze

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

Drawing/Model

Product Features

The FPC 0.5mm Pitch 2.0H Drawer Top Contact Full Shield targets ultra-thin applications in flagship smartphones, smart watches, and hearing aids where miniaturization drives every design decision. Bottom-contact design minimizes total connector height contribution to the module Z-axis, enabling the slimmest possible device profiles demanded by consumer market trends. The flip-lock actuator secures FPC and FFC cables at heights below 1.5mm total stack height, leaving more space for batteries and other components that directly impact user experience through runtime and device thickness. Vacuum-capable pick surface enables automated SMT placement at high production speeds without special feeder modifications required for fragile components. Operating temperature of -40 to +105 degrees Celsius covers the full range of portable device environmental conditions from cold weather storage to elevated temperatures during charging.

Application Scenarios

The SMT FPC connector with 0.5mm pitch enables display interconnect in ultra-thin flagship smartphones where every tenth of a millimeter of connector height directly impacts device thickness, battery capacity, and consumer appeal. Bottom-contact design minimizes the connector's contribution to total module height, leaving more space for the battery that directly determines how long consumers can use their devices between charges. Flip-actuation locks flexible display cables without requiring additional sealing features or complex mechanical interlocks, simplifying the assembly process for high-volume manufacturing lines producing millions of devices annually.

Why Choose FPC 0.5mm Pitch 2.0H Drawer Top Contact Full Shield

Automotive-grade FPC connector designed to withstand extreme conditions and vibrations.
IP67/IP68 rated FPC connector providing complete protection against dust and water.
Factory-direct FPC connector with competitive pricing and reliable supply chain.
