How the FPC 0.5mm Pitch 2.0H Drawer Top Contact Full Shield Controls EMI in Compact Layouts

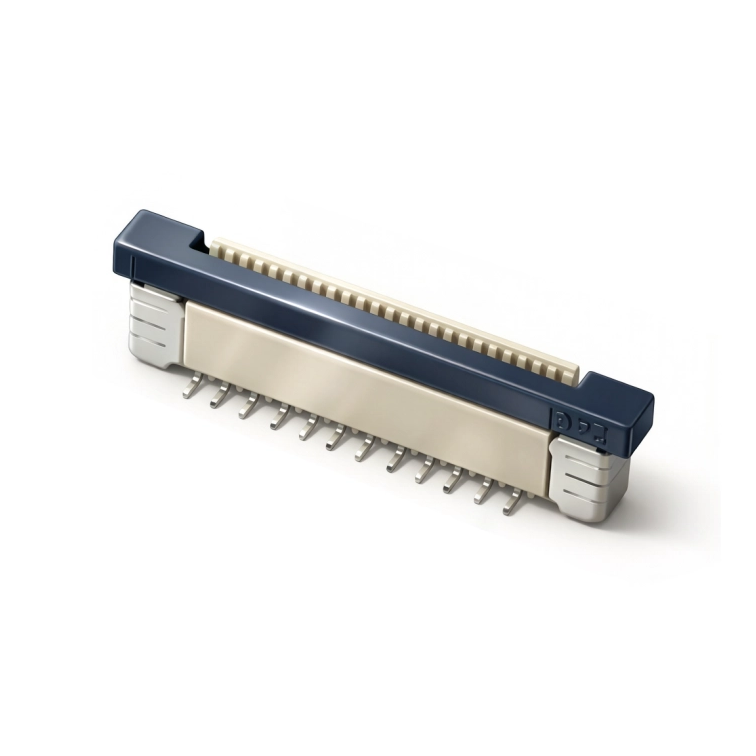

The FPC 0.5mm Pitch 2.0H Drawer Top Contact Full Shield is a low-profile board-to-flex interconnect built for compact electronics where board space is tight and electromagnetic noise is a real concern. It carries a fine 0.5 mm contact pitch, stands just 2.0 mm above the PCB (the 2.0H rating), and pairs a sliding drawer actuator with a top-facing contact surface and a full metal shield. The combination keeps a flexible circuit seated through vibration while containing the radio-frequency energy that denser, faster boards tend to radiate. Designers typically choose it when a thin flex tail must ride close to a shielded enclosure or a sensitive analog section without adding a separate shielding gasket.

At 0.5 mm pitch the contact array fits more circuits into a narrower row than coarser 1.0 mm parts, which matters when a display, camera, or sensor module leaves only a sliver of board edge for the flex. The 2.0H height holds the part under the tight height envelope that stacked modules demand, so it clears a neighboring shield can or battery bracket. The drawer actuator is the practical difference from a flip-lock style: pull the slider out, lay the FPC flat onto the top contacts, and push the slider home to lock it. That top-contact arrangement lets the flex pads meet upward-facing contacts, giving a clear insertion view and consistent normal force. Around the lot, the full shield wraps the top and sides of the housing and ties to board ground, returning stray EMI instead of letting it couple into a nearby radio or touch controller.

Why does the shield matter more at 0.5 mm pitch? The same fine geometry that adds circuit count also narrows the gaps between signals, so crosstalk and radiated noise climb as data rates rise. A continuous metal shield with a low-impedance ground path holds those fields away from sensitive traces, which is why this build fits RF-adjacent modules, high-resolution displays, and industrial boards that must clear emissions limits.

Typical homes for the FPC 0.5mm Pitch 2.0H Drawer Top Contact Full Shield include slim consumer devices, portable test instruments, and automotive or industrial flex links where shielding and a low standoff both matter. Shenzhen Jinkeji Technology Co., Ltd. has supplied connectors and wire harnesses since 2000 under ISO 9001 and IATF 16949, and its FPC family spans pitches, heights, and shielding levels to match a given layout. Because the same basic footprint can be quoted with or without the full shield, a team can standardize one board and choose shielding by variant. Share your pin count, FPC thickness, and board-height budget with the engineering team, and they will confirm footprint fit and sample lead time.
