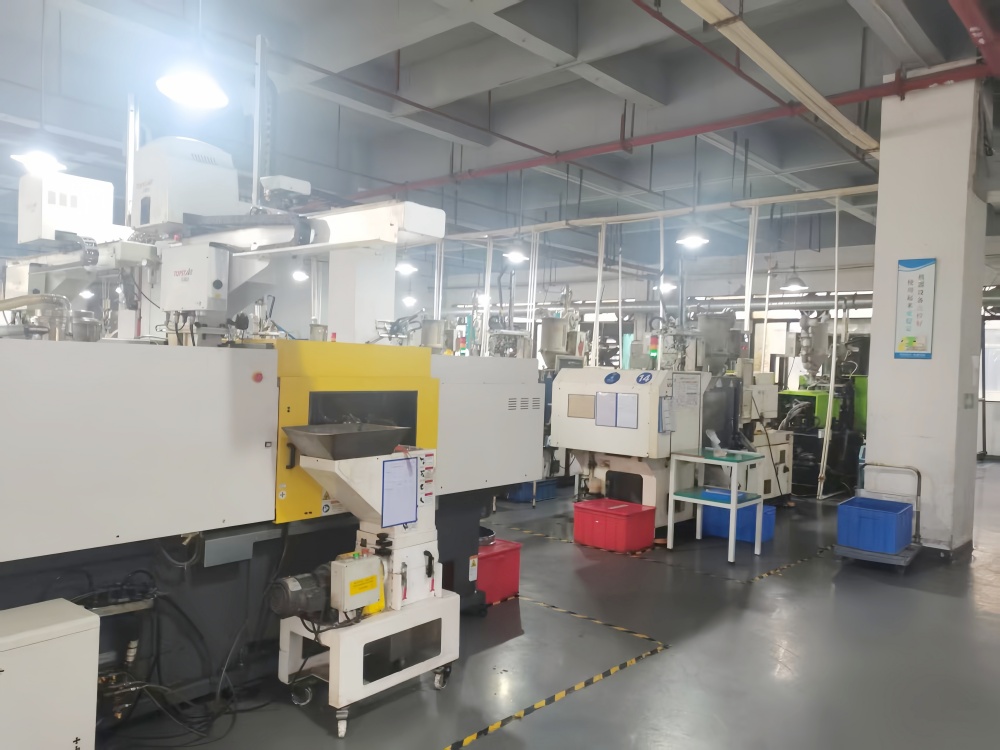

The core of any connector lies in its contacts, typically stamped from high-conductivity copper alloys such as phosphor bronze or beryllium copper. These are then plated with gold, tin, or silver to enhance conductivity and resist corrosion. The insulating housing, molded from engineering-grade thermoplastics like PBT, PA66, or LCP, provides structural support and electrical isolation while withstanding high soldering temperatures...

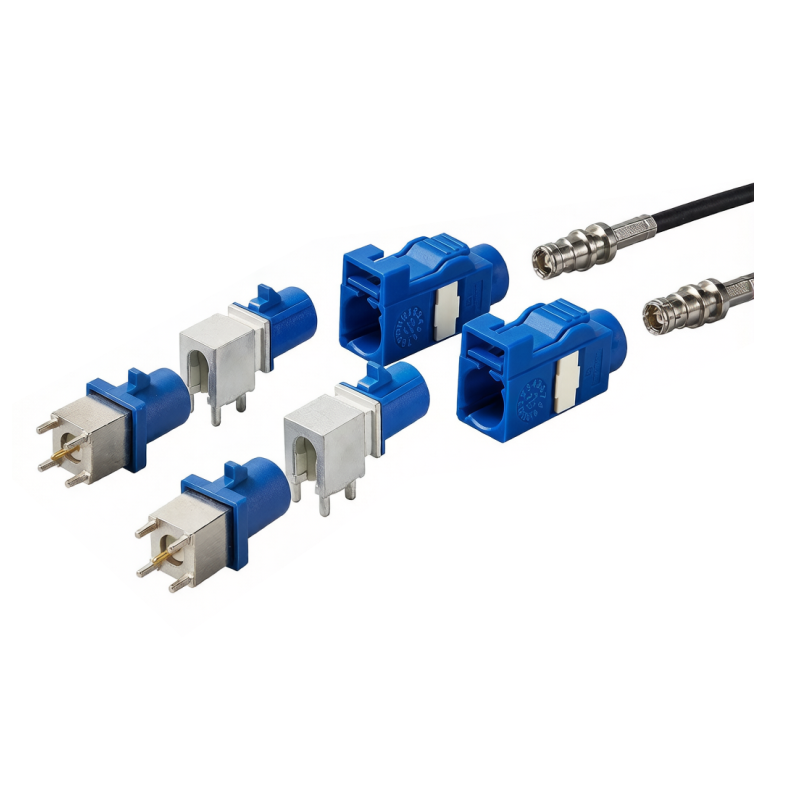

The FAKRA Connector, standardized under the USCAR specification, has become the automotive industry's connector of choice for these critical RF links. Its color-coded coding system simplifies assembly and prevents mismating on the production line, while the secure locking mechanism ensures vibration-resistant performance throughout the vehicle's service life...
Vertical connectors stand perpendicular to the PCB, with the mating interface pointing upward and the cable entering from above. This orientation works best when overhead clearance is available and the signal path to the IC must be short and direct — critical for high-speed designs...

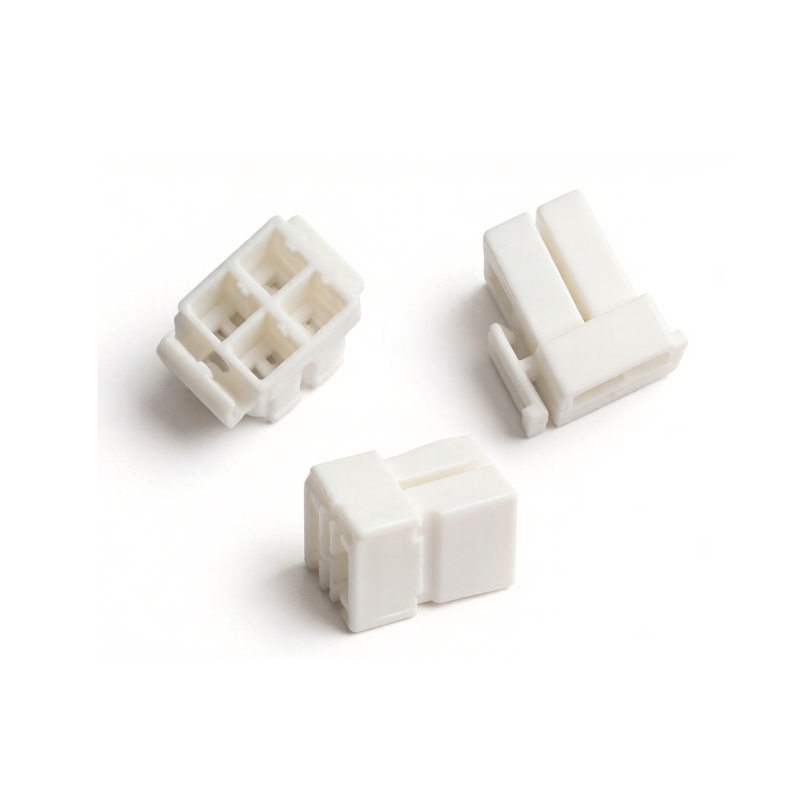

![[XLP-04V] 5.0Pitch 4P Wire End Housing](http://iororwxhimpllk5p-static.micyjz.com/cloud/lqBpkKlmliSRolkpjipjkq/30-XLP-04V.png)

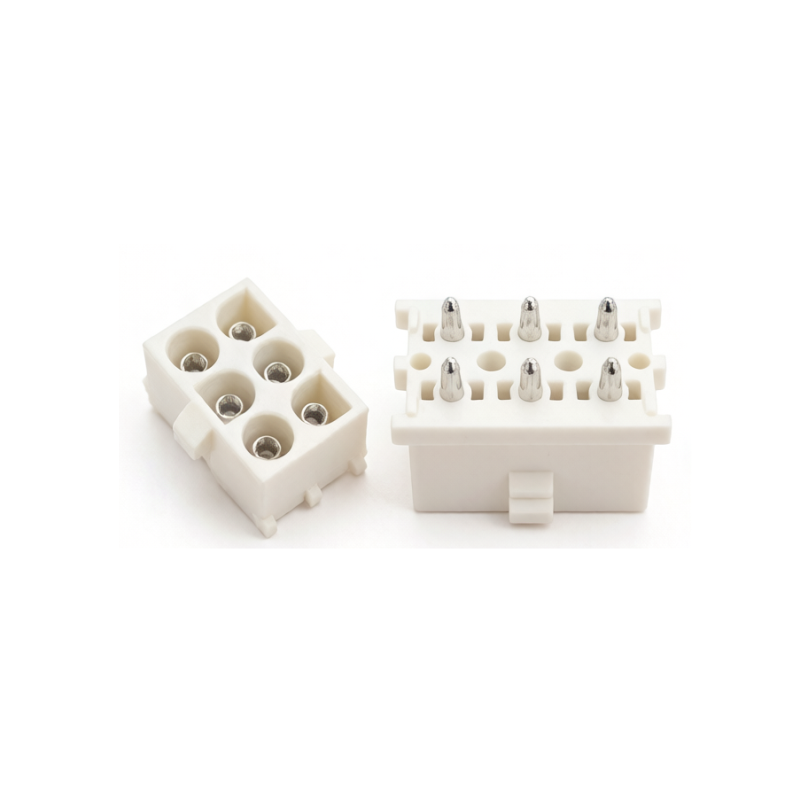

![[C-350431-1] 6.35Pitch 6P Female Connector](http://iororwxhimpllk5p-static.micyjz.com/cloud/liBpkKlmliSRolkpiiilkq/5-C.png)

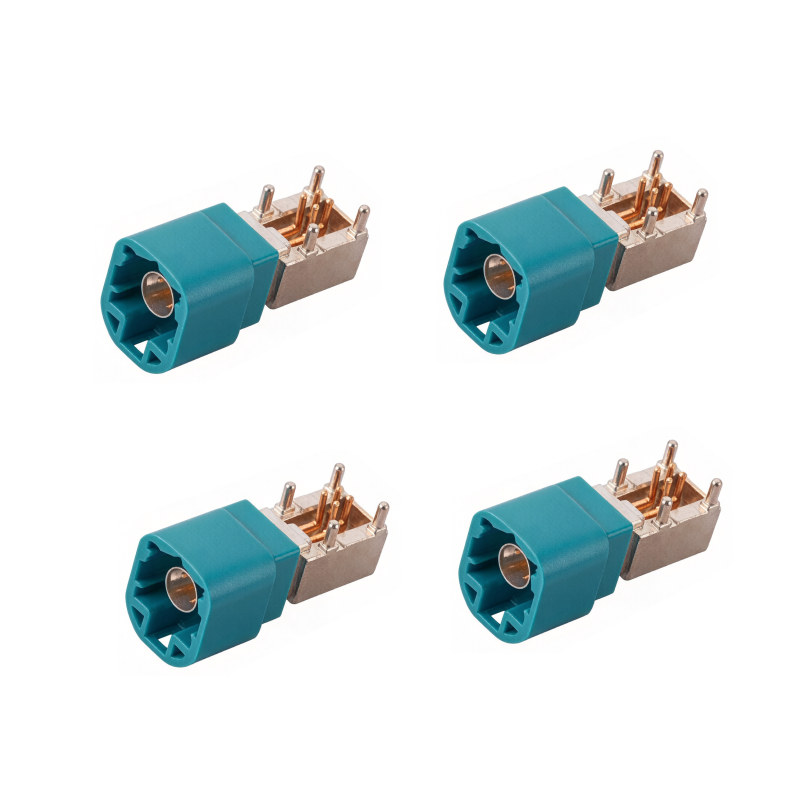

![[HSDNXRPPCB18X] HSD 4pitch Horizontal Connector](http://iororwxhimpllk5p-static.micyjz.com/cloud/lkBpkKlmliSRoljprjllkq/60-HSDNXRPPCB18X.png)
![[HSDSJZSJXXX-19] HSD 4P Female Connector](http://iororwxhimpllk5p-static.micyjz.com/cloud/lkBpkKlmliSRoljprjjokq/62-HSDSJZSJXXX.png)

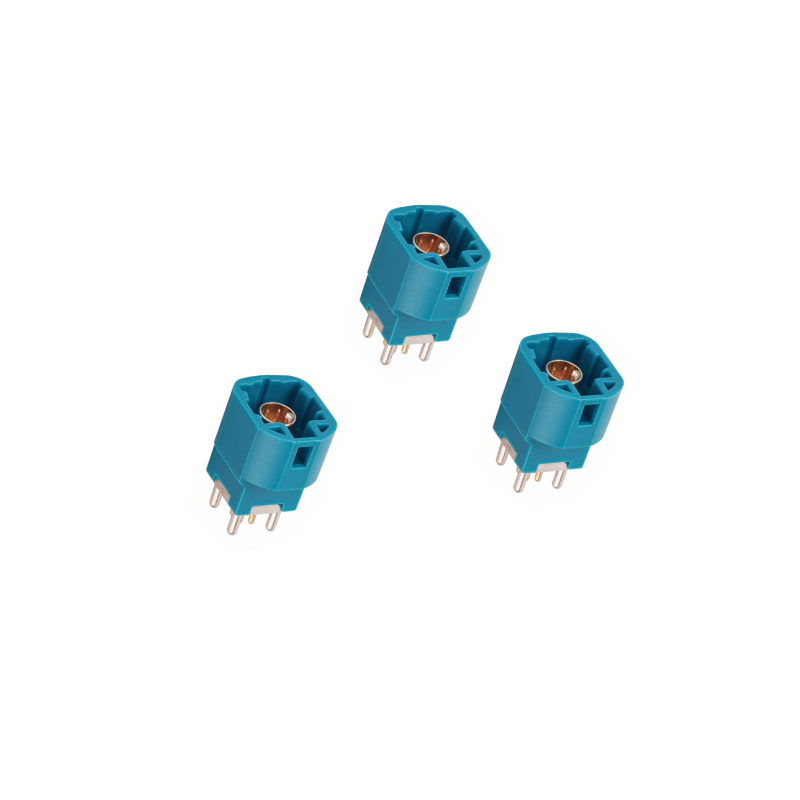

![[HSDNXRPPCB14WBX] HSD 4P Vertical Connector](http://iororwxhimpllk5p-static.micyjz.com/cloud/lrBpkKlmliSRoljprjrnkq/61-HSDNXRPPCB14WBX.png)
