How Are Connectors Made? — Inside the Precision Manufacturing Process

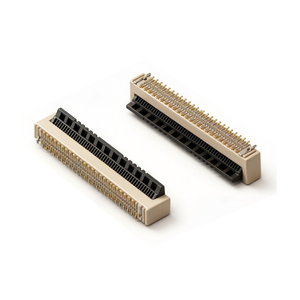

Connectors are the unsung backbone of modern electronics, enabling reliable signal and power transmission across countless devices and systems. From consumer gadgets to automotive platforms, these precision components ensure seamless communication between electronic modules. Among the most widely used types, FPC connectors enable flexible circuit integration in space-constrained applications, while Board-to-Board Connectors provide stable inter-board links in densely packed PCB assemblies. Understanding how these components are manufactured reveals why quality and precision are paramount at every stage of production.

The manufacturing process begins with high-speed precision stamping, where thin metal strips—typically copper alloys—are formed into contact terminals with micron-level accuracy. These terminals then undergo electroplating, applying gold or tin coatings to enhance conductivity and corrosion resistance. Simultaneously, the insulating housings are produced via precision injection molding using high-temperature thermoplastics. The terminals are then carefully inserted into the housings through automated assembly lines, where each unit is inspected for dimensional integrity and contact force consistency. For high-frequency applications, such as FAKRA Connectors used in automotive telematics, additional RF shielding and impedance tuning are integrated to meet stringent signal integrity requirements.

Before shipment, every connector undergoes rigorous quality control. Fully automated CCD vision systems inspect each part for defects, while electrical testing verifies contact resistance, insulation resistance, and dielectric withstand voltage. Products must also pass mechanical endurance tests simulating thousands of mating cycles. Certifications such as ISO 9001 and IATF 16949 ensure that manufacturing processes meet international standards. This unwavering commitment to quality is what enables connectors to perform reliably in the field—where failure is never an option.
