[1743164-2] 2.54 Pitch, 3P black Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

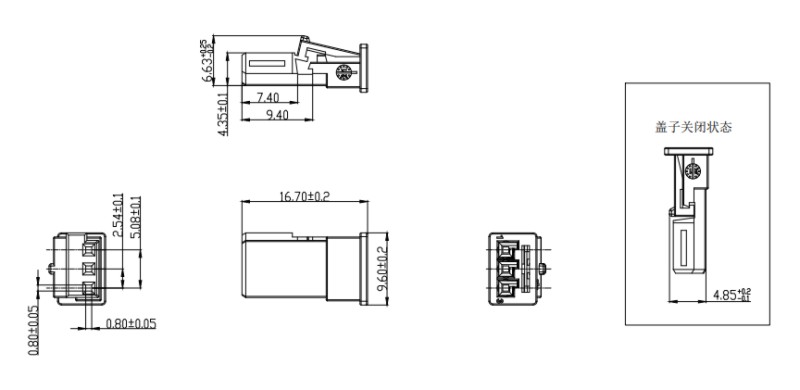

Drawing/Model

Product Features

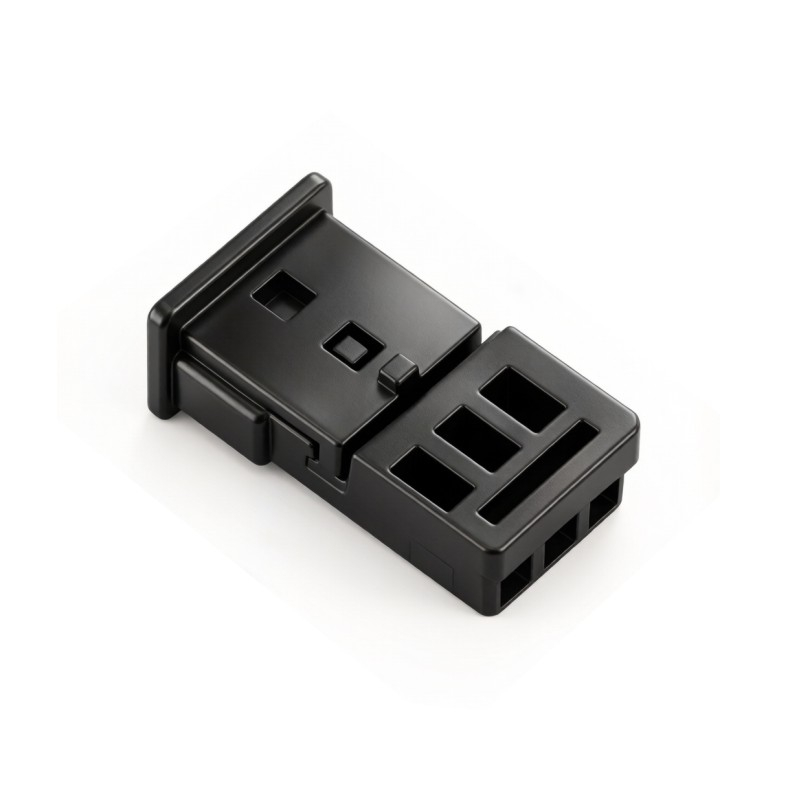

This 2.54 Pitch 3P Black Housing features a compact single-row design with a locking ramp that retains crimped terminals securely in their designated positions, preventing contact displacement during handling and operation. The housing body is molded from UL94 V-0 rated nylon, providing self-extinguishing properties that enhance safety in enclosed electronic assemblies where fire safety is a concern. Terminal cavities accept standard crimp contacts designed for industry-common pitch headers, ensuring broad compatibility with existing board-level interconnect systems and prototyping platforms. A polarization feature prevents reverse insertion relative to the mating header, eliminating a common source of assembly defects that could damage components or create short circuits. The low-profile design is compatible with breadboard and perfboard layouts commonly used in educational and prototyping environments where connector height must not interfere with adjacent components or jumper wires. The black housing color distinguishes this connector from other colored variants in the same product family, supporting circuit identification strategies in multi-connector assemblies. Optional strain relief provisions protect wire terminations from mechanical stress.

Application Scenarios

The 2.54 Pitch 3P Black Housing is commonly used in prototyping boards, Arduino-compatible shields, and maker-platform projects where jumper wires and breadboard-compatible connections are required for rapid circuit development and educational electronics experimentation. Its industry-standard pitch ensures direct compatibility with perfboards, stripboards, and general-purpose printed circuit boards used in educational, hobbyist, and prototype electronics where custom PCB fabrication is not yet warranted. Small appliance timer modules and power supply indicator circuits also employ this housing for organizing low-voltage wire-to-board connections in cost-sensitive consumer products where connector expense must be minimized. Industrial control panels use it for connecting small signal relays and indicator lamps to terminal strips in cabinet wiring applications. The black housing color provides visual contrast against lighter-colored connector panels, facilitating identification in multi-connector installations where rapid visual distinction between connector types is helpful. In automotive accessory installations, the housing supports aftermarket wiring for auxiliary lighting and sensor modules that require simple three-position connections.

Why Choose [1743164-2] 2.54 Pitch, 3P black Housing

• Industry-standard 2.54mm pitch of this 3P Black Housing ensures universal compatibility with available pin headers, crimp terminals, and mating connectors across suppliers.

• Black housing color of this 2.54 Pitch Housing provides easy visual identification and polarity recognition in boards, reducing errors during production assembly.

• Simple 3-position circuit count makes this 3P Black Housing ideal for sensor signal wiring, power-plus-ground, and serial communication in embedded designs.

• Robust terminal retention within this 2.54 Pitch Housing prevents contact pullout during flexing and repeated mating in development and production use.

• Extremely broad market availability with low cost and consistent quality of this 3P Black Housing, supported by extensive documentation for designs.
