103191-XXX211-1
| Current Rating：1A | Insulation Resistance：1000MΩ/min |
| Voltage Rating：100V | Withstand Voltage：500 V AC / 1 minute |
| Contact Resistance：≤20mΩ | Operating Temperature Range：-40℃~+105℃ |
| Plastic maerial：LCP Natural UL94V-0 | Terminal material：Brass |
tape and reel、 tube packaging、Tape and Reel Package
Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact
customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

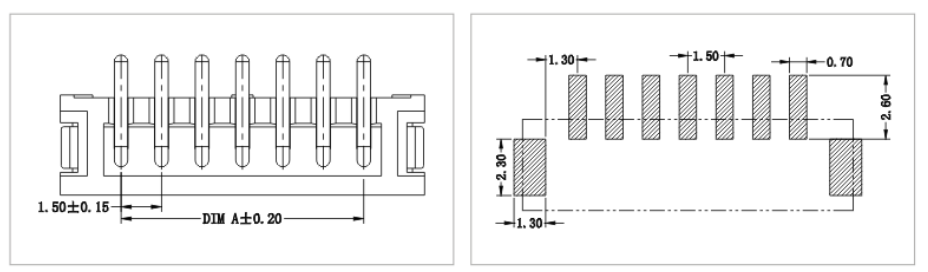

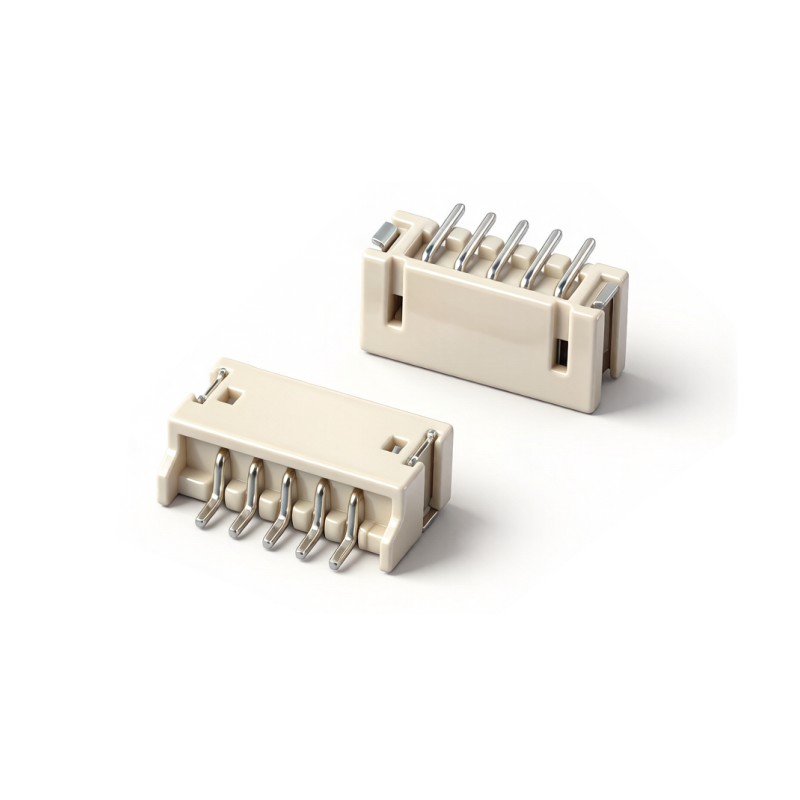

Covered 1.5mm vertical headers add a shield over the pins while keeping the 1.5mm pitch and the side-accessible build that mid-density boards prefer for service. This surface-mount part stands upright and snaps a cover across the contact zone after mating, closing the opening that a bare header leaves to the air. The LCP body is reflow rated and the cover guards the pins in open gear without raising the height much above a bare part.
Brass contacts with tin-over-nickel plating give 20 milliohm maximum resistance at 100V and 1A, a clear step up from the finer-pitch class in voltage carried. Insulation resistance is 1000MΩ minimum with a 500V dielectric-withstand rating that suits power-aware logic and sensor lines on the run. It handles -40 through 105°C for industrial and consumer use without special screening or a second source.
The cover is a low-cost safety step where the mate is exposed but the pitch must stay at 1.5mm for density on the board. Use it where a vertical 1.5mm header needs pin protection without moving to the bulkier coarser pitch that would waste space.
Where a 1.5mm vertical header sits in reach of users or debris, this covered version adds protection after the mate is made without costing the density the design needs. The snap cover closes over the pins once the cable is in, keeping the 100V and 1A link safe from a stray finger or a bit of dust on the line in the field.
Brass tin-over-nickel contacts and 1000MΩ insulation hold the 500V dielectric margin through reflow and service without fuss. The LCP shell survives the oven and the -40 to 105°C span fits kiosks and field units that move between temperatures during the day.
The cover costs little yet shields the contacts where a bare header would leave them open to the air. Choose it where a vertical 1.5mm part must keep its pins covered and the pitch cannot grow to the coarser size for space or cost reasons in the layout.
SMT-optimized: a flat cover surface lets placement machines handle the part cleanly.
Strong isolation: 100V rating with 500V AC dielectric strength and 1000 megohm insulation resistance.
Low-loss contacts: a low 20 milliohm maximum contact resistance allows efficient transfer.
High-temperature body: LCP housing rated UL94V-0 tolerates reflow heat and holds tolerances.
Compact and stable: the 1.5mm pitch across a minus 40 to 105 degree range fits dense boards.
Q: How does this differ from the horizontal 1.5mm header?
A: This version mates vertically (straight up from the board) and includes a pick-and-place cover, while the horizontal version routes the interface parallel to the PCB.
Q: What electrical limits does this Vertical SMT Pin Header with Cover carry?
A: It runs at 100V and 1A, with a low 20 milliohm contact resistance, 500V AC dielectric withstanding, and 1000 megohm minimum insulation resistance.
Q: What material forms the Vertical SMT Pin Header with Cover housing?
A: The housing is natural LCP rated UL94V-0, chosen for reflow heat tolerance and dimensional stability.
