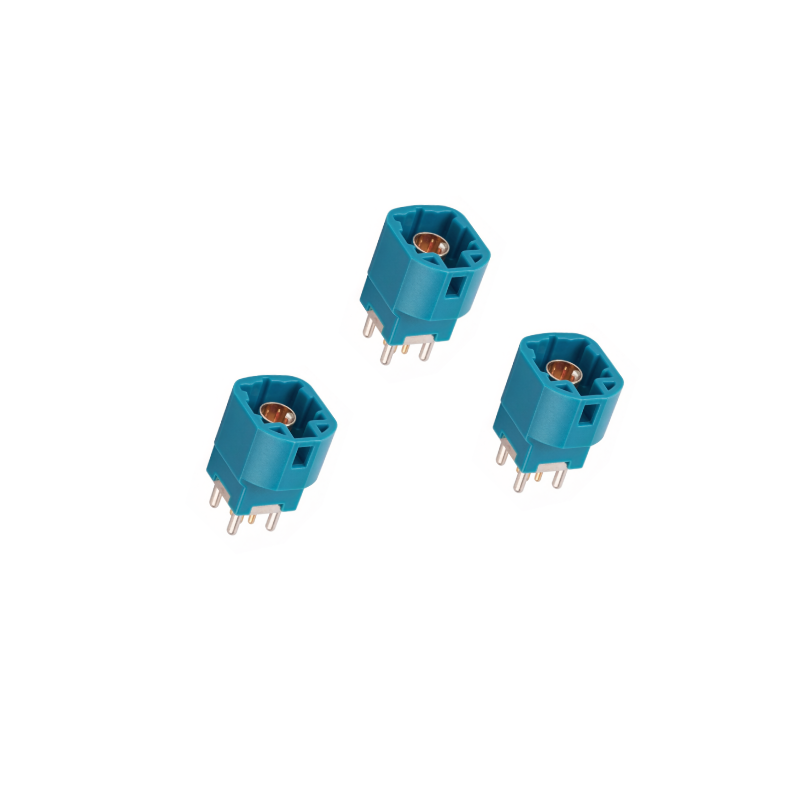

61、HSDNXRPPCB14WBX
Specifications
Current Rating：2A | Insulation Resistance：500MΩ/min |
Voltage Rating：50V | Withstand Voltage：500V AC/min |
Contact Resistance：≤20mΩ | Operating Temperature Range：-40℃~+105℃ |
Material
Plastic material：PA669T UL94V-0 | Terminal material：Cu |
Package Type
tape and reel、 tube packaging、Tape and Reel Package
Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

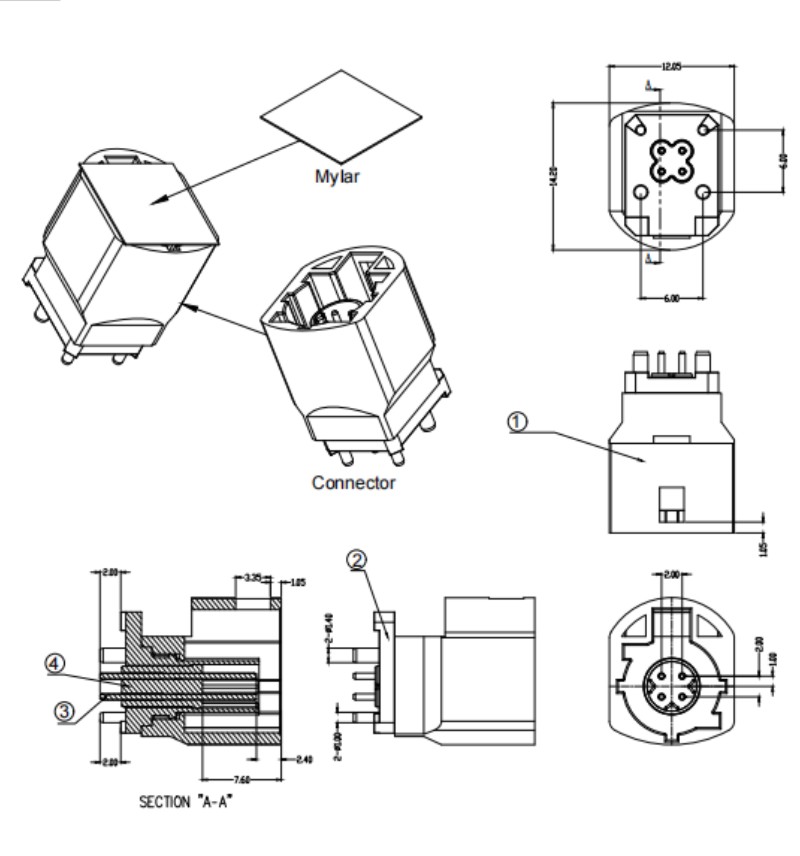

Drawing/Model
![[HSDNXRPPCB14WBX] HSD 4P Vertical Connector from China manufacturer - Connector](http://iororwxhimpllk5p-static.micyjz.com/cloud/pjBpkKlmliSRqljrononkp/61.jpg "HSD 4P Vertical Connector")
Product Features
The HSD 4P vertical connector integrates a 90-degree board-to-wire interface with precisely controlled pin spacing to ensure consistent signal integrity across production volumes. Its electromagnetic-shielded one-piece housing provides excellent EMC performance, effectively suppressing conducted and radiated emissions in high-speed LVDS and USB data transmission applications. The connector is designed with internal impedance matching to minimize signal reflection and insertion loss across its operational frequency range. Tin-plated brass terminals offer a cost-effective balance of conductivity and durability, while the audible click mechanism confirms complete mating engagement during assembly. The connector accommodates a standard range of wire gauges and supports high-volume automated termination with tooling widely available from major equipment manufacturers globally.
Application Scenarios
The HSD vertical connector variant is ideally suited for infotainment head units requiring cable entry from above the PCB where harness routing approaches the board from the dashboard wiring bundle. The 90-degree board-to-wire exit angle provides routing flexibility that simplifies wire harness layout in the space-constrained head unit enclosure behind the center stack. High-speed LVDS, USB 2.0, and USB 3.0 signals pass through this connector without degradation in signal quality, supporting video streaming, smartphone mirroring, and mobile device charging functions that modern consumers expect in new vehicles. The vertical orientation also works in instrument cluster applications where connectors mount to the back of the PCB facing the wiring bundle in the steering column area. Multiple keying options allow automotive OEMs to specify unique polarization configurations that prevent cross-mating between adjacent connectors during assembly or service operations.
Why Choose HSDNXRPPCB14WBX HSD 4P Vertical Connector
High-speed HSD connector optimized for fast signal transmission with minimal loss.
Durable HSD connector engineered for thousands of mating cycles without degradation.
Factory-direct HSD connector with competitive pricing and reliable supply chain.
Professional HSD connector supplier with comprehensive technical documentation included.
