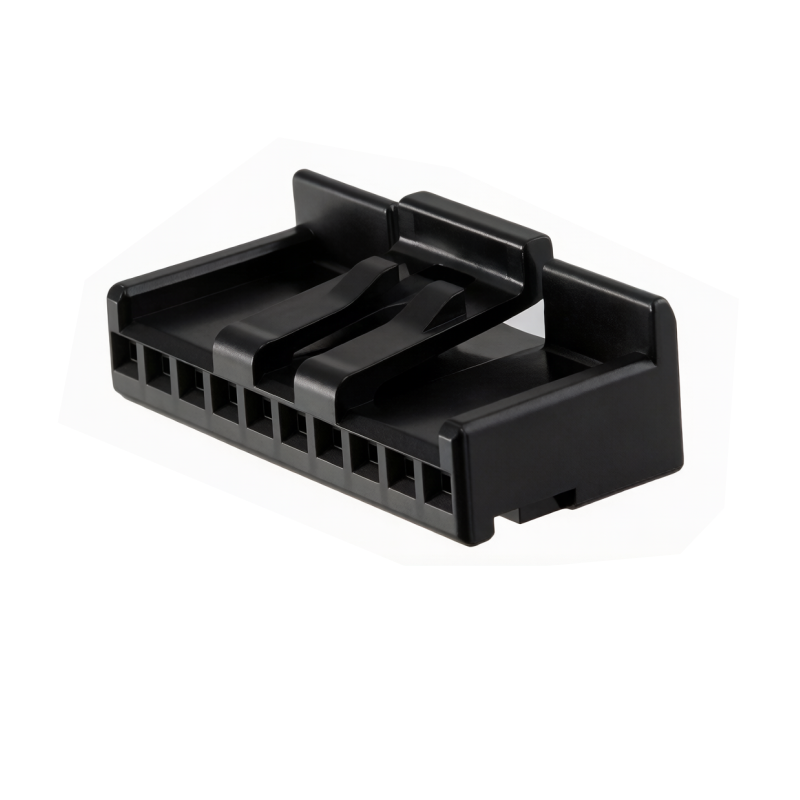

[GT8E-10S-HU] 2.0 Pitch 10P Plastic Housing

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

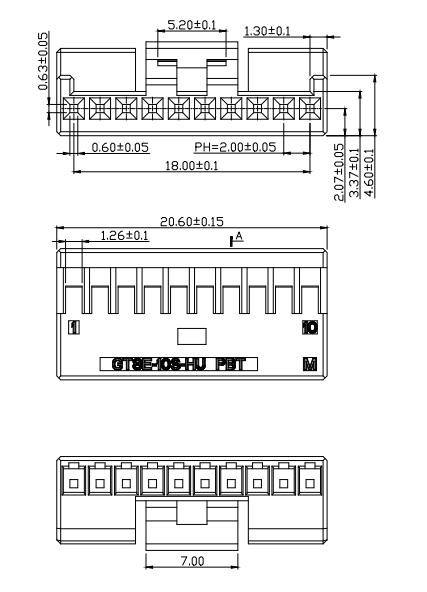

Drawing/Model

Product Features

This 2.0 Pitch 10P Plastic Housing features a ten-position cavity layout on the 2.0mm pitch standard, providing a mid-range circuit count that serves applications requiring more connections than a four or six-position connector provides but without the width and cost of higher-pin-count alternatives. The housing is molded from glass-reinforced thermoplastic that delivers the mechanical strength required to withstand automotive vibration levels and the dimensional stability needed to maintain cavity alignment across the operating temperature range from cold-soak to under-hood heat conditions. Each cavity incorporates a terminal retention lance that snaps into place when a crimp terminal is fully inserted, providing audible and tactile feedback that confirms proper terminal seating during harness assembly operations. A primary latch on the housing exterior engages with the mating connector to provide secure retention of the mated pair, preventing accidental disconnection due to vibration, cable pull, or mechanical shock during vehicle operation. The housing design includes a polarization feature that ensures correct mating orientation, preventing reverse insertion that could cause electrical damage to sensitive circuit components. Color-coded and keyed variants are available to distinguish between different circuit configurations within the same vehicle platform, reducing the risk of misconnection during production assembly and field service operations. The housing wall thickness and rib design provide adequate structural rigidity to resist deformation during terminal insertion and extraction, preserving cavity geometry for reliable mating performance throughout the connector service life.

Application Scenarios

The 2.0 Pitch 10P Plastic Housing is extensively used in automotive body electronics and power distribution systems, connecting door modules, seat adjusters, lighting controllers, and climate control units where the ten-position capacity accommodates multiple signal and power circuits within a single compact connector body. Industrial control equipment manufacturers apply this housing in programmable logic controller I/O modules and motor drive interface connections where the mid-range pin count matches the channel density of typical distributed control nodes. In commercial vehicles, the connector housing links auxiliary lighting controllers, trailer brake interfaces, and diagnostic communication ports where the ten-circuit capacity supports comprehensive signal routing within a single serviceable disconnect point. Agricultural and construction equipment utilize the housing for hydraulic valve controller connections and implement sensor interfaces where the robust thermoplastic construction withstands the environmental exposure and vibration typical of off-highway operating conditions. The housing also serves in renewable energy systems, connecting solar panel junction box wiring and wind turbine sensor arrays where the compact multi-position design consolidates multiple circuit paths within a weather-resistant connector shell.

Why Choose [GT8E-10S-HU] 2.0 Pitch 10P Plastic Housing

• Ten-position 2.0mm pitch cavity layout of this Plastic Housing provides mid-range circuit capacity, serving applications that require more connections than low-pin-count alternatives without the width of higher-position connectors.

• Glass-reinforced thermoplastic construction withstands automotive vibration and maintains cavity alignment across the full operating temperature range for reliable long-term mating performance.

• Terminal retention lances provide snap-in confirmation during harness assembly, ensuring proper terminal seating with audible and tactile feedback for production line operators.

• Primary latch and polarization features prevent accidental disconnection and reverse mating, safeguarding circuit integrity in vehicle and industrial operating environments.

• Color-coded and keyed variants distinguish between circuit configurations within the same platform, reducing misconnection risks during assembly and field service operations.
