[ZE05-2022SCF] 2.0pitch 4~16P Crimp Terminal

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

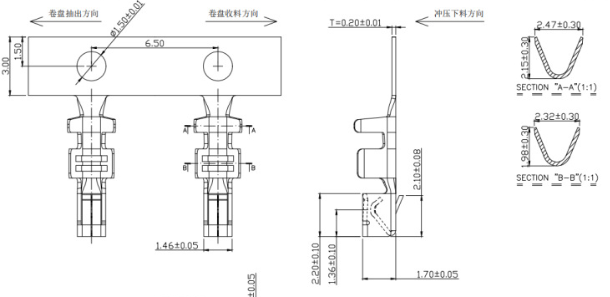

Drawing/Model

Product Features

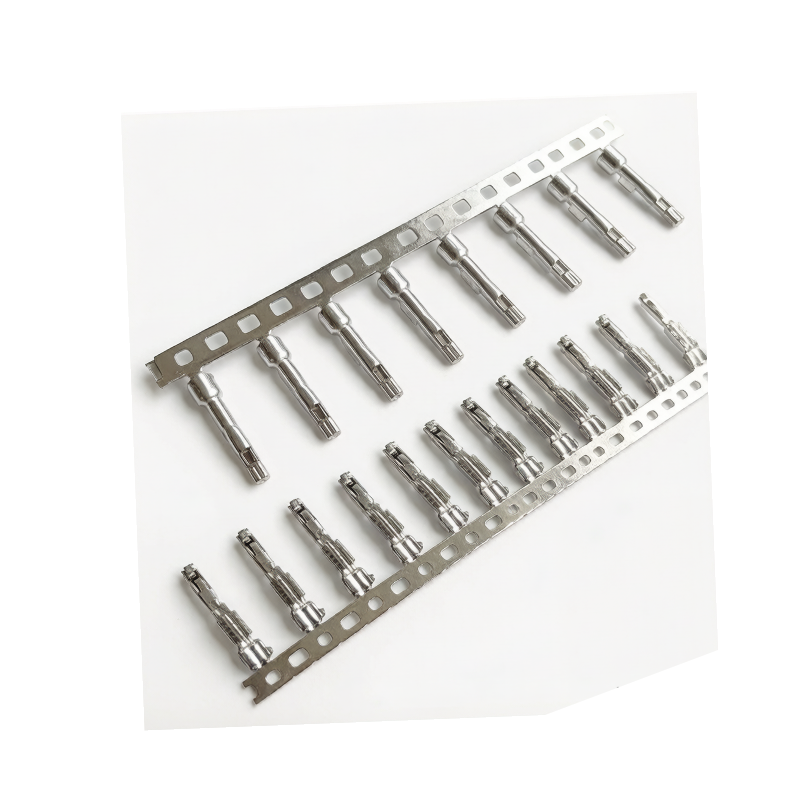

This 2.0 Pitch Crimp Terminal is manufactured from high-conductivity copper alloy using precision stamping techniques that ensure consistent terminal geometry across high-volume production lots, providing the dimensional uniformity required for reliable automated crimping and consistent insertion into ZE series connector housings. The closed-barrel crimp design creates a gas-tight connection between the conductor and terminal when crimped with the recommended tooling, preventing the formation of high-resistance oxide layers at the conductor-to-terminal interface that could degrade electrical performance over time. Contact surfaces receive a selective precious metal plating that provides low and stable contact resistance at the mating interface while resisting corrosion and fretting wear during connector engagement and disengagement cycles. The terminal incorporates a flexible locking lance that engages with the housing cavity retention feature upon insertion, providing a secure snap-in seat that prevents terminal back-out under vibration and mechanical shock conditions. A conductor crimp zone and an insulation crimp zone are designed to accommodate a specified range of wire gauges, providing the strain relief necessary to prevent conductor fatigue at the crimp point during flexing and vibration exposure in the operating environment. The terminal design is compatible with both open-barrel and closed-barrel crimp tooling setups, offering flexibility in harness manufacturing equipment selection. Quality control during terminal production includes dimensional inspection and plating thickness verification to ensure each lot meets the specification requirements for reliable crimp formation and mating performance.

Application Scenarios

The 2.0 Pitch Crimp Terminal is used throughout the ZE series connector system in automotive wiring harness applications, providing the wire termination interface for connections to electronic control units, sensor modules, and actuator drive circuits across the full range of vehicle body, chassis, and powertrain electrical systems. Industrial equipment manufacturers specify these terminals for control panel wiring and field device connections in factory automation systems where the ZE connector platform provides the standardized interconnect for sensor and actuator signal routing. In commercial vehicle electrical systems, the terminals serve in trailer lighting connectors, ABS module interfaces, and instrument panel connections where reliable wire termination is essential for safety-critical circuit integrity. Building automation systems utilize these crimp terminals in HVAC controller connections and fire alarm panel wiring where consistent crimp quality ensures reliable long-term signal transmission in life-safety applications. The terminals also support prototype and low-volume production of custom wiring harnesses for specialty vehicles, test equipment, and research apparatus where the standardized ZE crimp tooling ensures professional-quality wire termination.

Why Choose [ZE05-2022SCF] 2.0 Pitch Crimp Terminal

• Precision-stamped copper alloy construction of this Crimp Terminal ensures consistent geometry for reliable automated crimping and uniform insertion into ZE series connector housings across production lots.

• Closed-barrel crimp design creates gas-tight conductor connections that prevent oxide formation, maintaining low contact resistance throughout the terminal service life.

• Selective precious metal plating on contact surfaces provides low mating resistance while resisting corrosion and fretting wear during connector engagement cycles.

• Flexible locking lance engages the housing cavity retention feature, providing a secure snap-in seat that prevents terminal back-out under vibration and shock.

• Compatible with a range of wire gauges, this Crimp Terminal accommodates diverse harness design requirements while maintaining reliable mechanical and electrical performance at the conductor crimp point.
