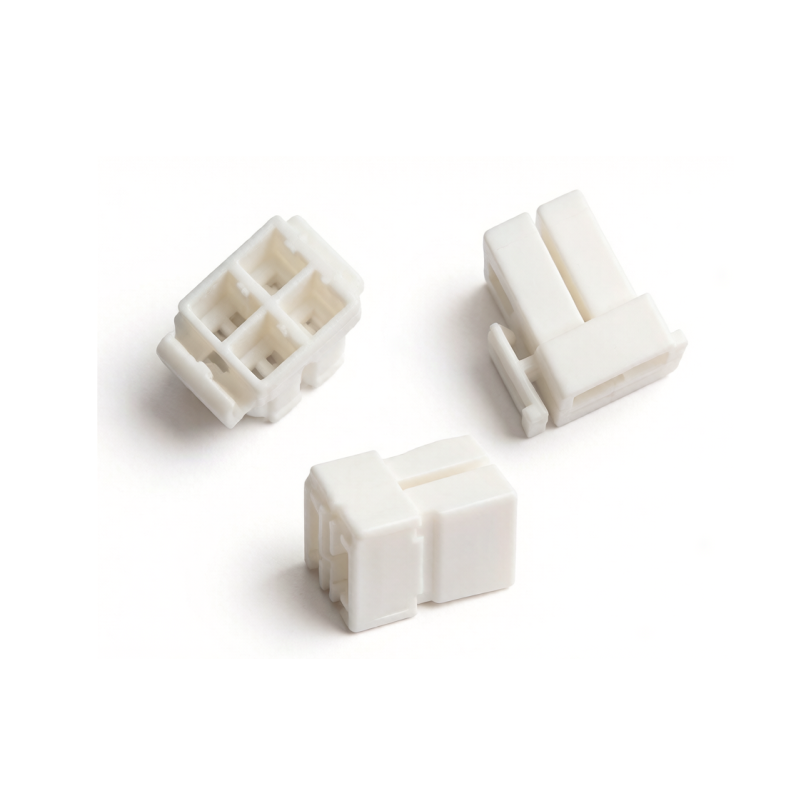

[XLP-04V] 5.0Pitch 4P Wire End Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

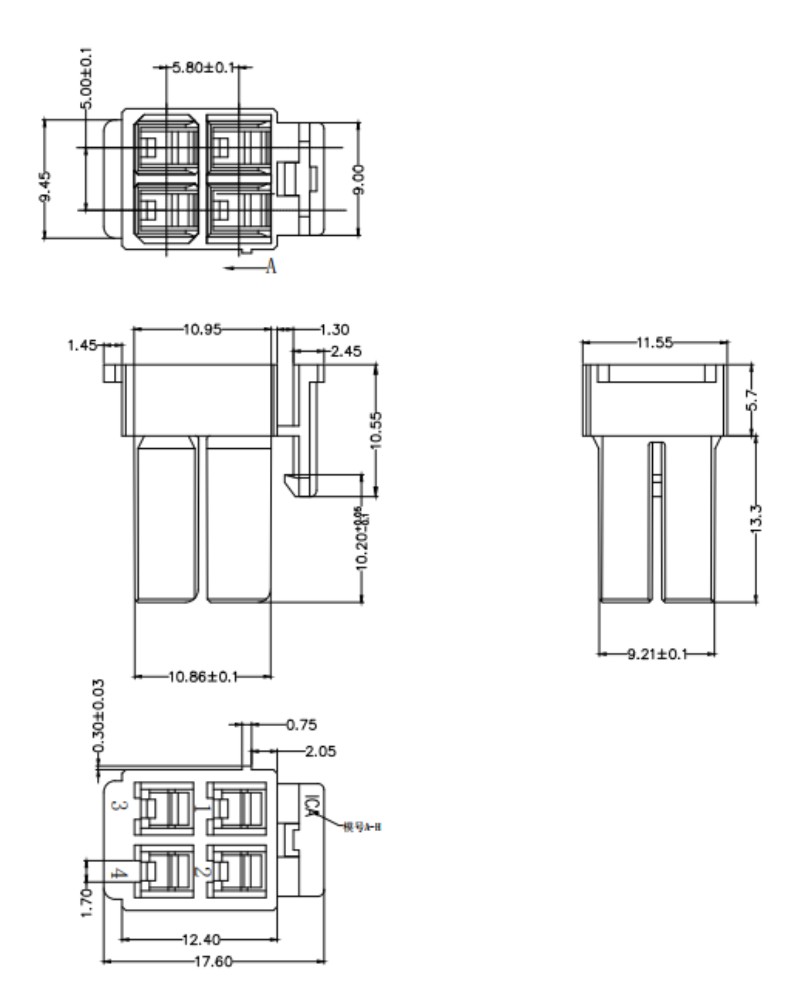

Drawing/Model

Product Features

This 5.0 Pitch 4P Wire End Housing features a heavy-duty construction with reinforced sidewalls engineered to withstand the mechanical stresses associated with high-current cable connections, including the substantial insertion and withdrawal forces required when connecting thick power cables in field installations. The housing body is molded from UL94 V-0 rated thermoplastic, meeting stringent flammability requirements for electrical equipment in both consumer and industrial applications where fire safety is a primary concern. Terminal cavities are sized to accept large-gauge crimp contacts, providing secure retention even under the substantial insertion and withdrawal forces encountered with thick power cables during installation and maintenance. A polarization system molded into the housing prevents mismating, protecting equipment from reverse-polarity connections that could cause component damage, battery damage, or safety hazards. The finger-proof housing design prevents accidental contact with live terminals during installation and maintenance, enhancing operator safety in compliance with workplace electrical safety standards. Integrated strain relief features at the cable entry distribute mechanical loads, protecting crimp joints from fatigue failure.

Application Scenarios

The 5.0 Pitch 4P Wire End Housing addresses high-power connection requirements in electric scooter battery packs, solar panel junction boxes, and uninterruptible power supply systems where thick-gauge conductors must be securely terminated with generous insulation spacing for safety and regulatory compliance. Its wide pitch provides adequate creepage and clearance distances for high-voltage isolation in renewable energy and energy storage applications that must meet international electrical safety standards. Industrial motor controllers employ this housing for connecting power input cables and field wiring to drive electronics within enclosed control cabinets where reliable high-current connections are essential for continuous operation. Electric forklift battery management systems use it for linking individual cell modules to the central monitoring unit that tracks state of charge, cell balance, and thermal conditions. The housing's robust construction accommodates large wire cross-sections while maintaining reliable terminal retention under high-current operating conditions where resistive heating could compromise less robust connector designs. Its standardized five-millimeter pitch ensures compatibility with corresponding headers from multiple suppliers, providing sourcing flexibility.

Why Choose [XLP-04V] 5.0Pitch 4P Wire End Housing

• Wide 5.0mm contact pitch of this XLP-04V 4P Wire End Housing accommodates larger gauges and ratings, suitable for industrial power and motor control wiring.

• Four-position circuit layout of this 5.0Pitch 4P Housing provides a simple and robust interface for equipment control wiring while maintaining reliable connectivity.

• Sturdy housing construction of this XLP Wire End Housing withstands stress from heavy cable weight and repeated mating in control panel applications.

• Wide pitch of this 4P Wire End Housing simplifies termination and visual inspection during assembly, reducing errors and improving quality in field installation.

• Compatible with XLP family counterparts and tooling, this 5.0Pitch 4P Housing is supported by mature documentation and availability for industrial system sourcing.
