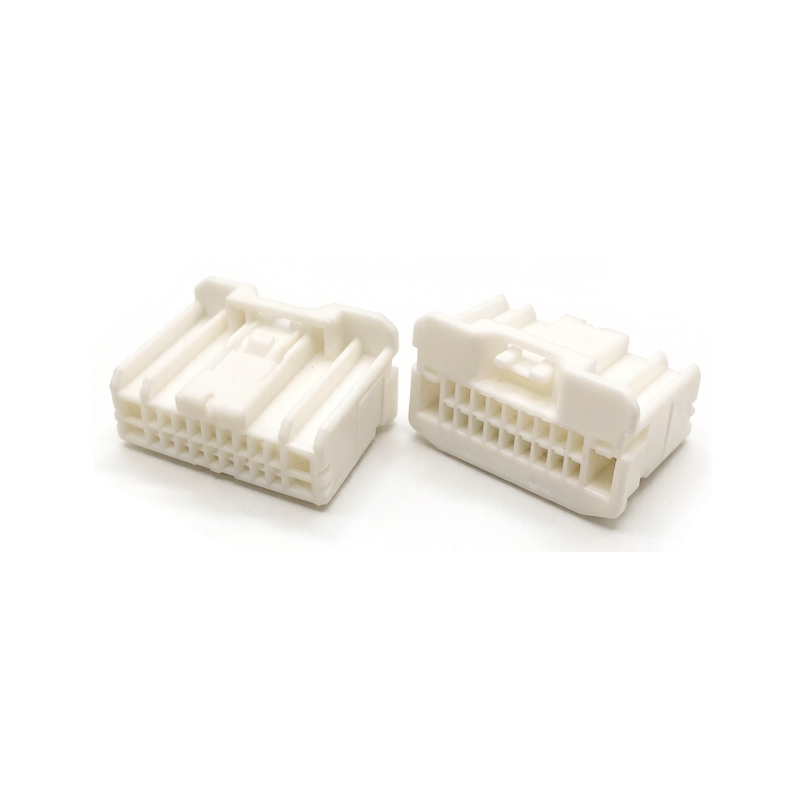

[6098-7261] 2.2Pitch 20P Male Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

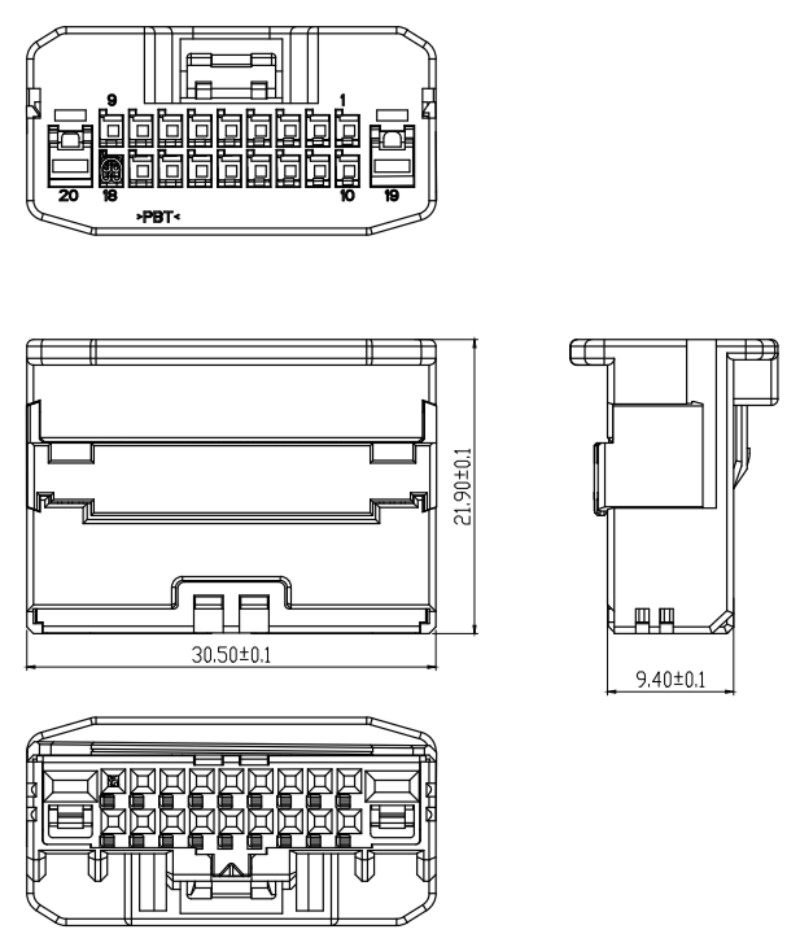

Drawing/Model

Product Features

This 2.2 Pitch 20P Male Housing features a compact form factor with integrated locking ears that produce a secure, vibration-resistant connection when engaged with the female mating connector, maintaining electrical continuity in applications subject to mechanical shock and sustained vibration from rotating machinery. The housing is injection-molded from glass-filled nylon, delivering enhanced mechanical strength and resistance to thermal deformation compared to unfilled thermoplastic grades, maintaining precise cavity alignment throughout the operating temperature range. Terminal cavities incorporate chamfered entry guides that facilitate smooth terminal insertion during harness assembly, reducing the risk of contact damage from misaligned insertion attempts. A polarization system prevents reverse or off-center mating, protecting both the connector and the mating header from insertion forces that could bend contacts or crack housing features. Custom keying configurations are available to differentiate between connectors sharing identical cavity counts but serving distinct circuit functions within the same equipment. The housing's material composition ensures compatibility with lead-free soldering and potting processes.

Application Scenarios

The 2.2 Pitch 20P Male Housing is employed in automotive parking assist systems and blind spot detection modules, routing radar and camera signals from distributed sensor nodes to the central processing unit that performs object detection and collision avoidance calculations. Industrial automation platforms use this housing for actuator control wiring in robotic work cells and assembly line stations where reliable signal transmission between controllers and field devices is essential for safe and productive automated operation. Commercial elevator control systems incorporate it for connecting door sensors, call buttons, and safety interlocks to the elevator controller board in both hydraulic and traction elevator installations. In marine navigation equipment, the housing links radar antennas and GPS receivers to display processors through vibration-resistant connector interfaces that must maintain signal integrity despite constant motion and shock loading. The male housing's compact design allows installation in tight panel spaces while providing adequate contact density for the required number of circuits. Standard pitch and cavity geometry ensure compatibility with corresponding female headers from multiple suppliers, offering supply chain flexibility.

Why Choose [6098-7261] 2.2Pitch 20P Male Housing

• Compact 20-pin plug housing of this 2.2Pitch 20P Male Housing consolidates multiple circuits efficiently, reducing connector count in lighting and control architectures.

• Secure locking mechanism of this 20P Male Housing ensures positive retention with mating female housing, preventing vibration-induced disconnection in vehicle environments.

• Durable engineering plastic of this 2.2Pitch 20P Male Housing provides resistance to fuels and thermal cycling, ensuring consistent performance throughout product lifespan.

• Standardized pitch of this 20P Male Housing enables wide terminal compatibility, simplifying procurement and reducing design complexity across vehicle platforms.

• Proven performance in volume applications supported by established supply and comprehensive documentation, this 2.2Pitch 20P Male Housing aids harness designers.
