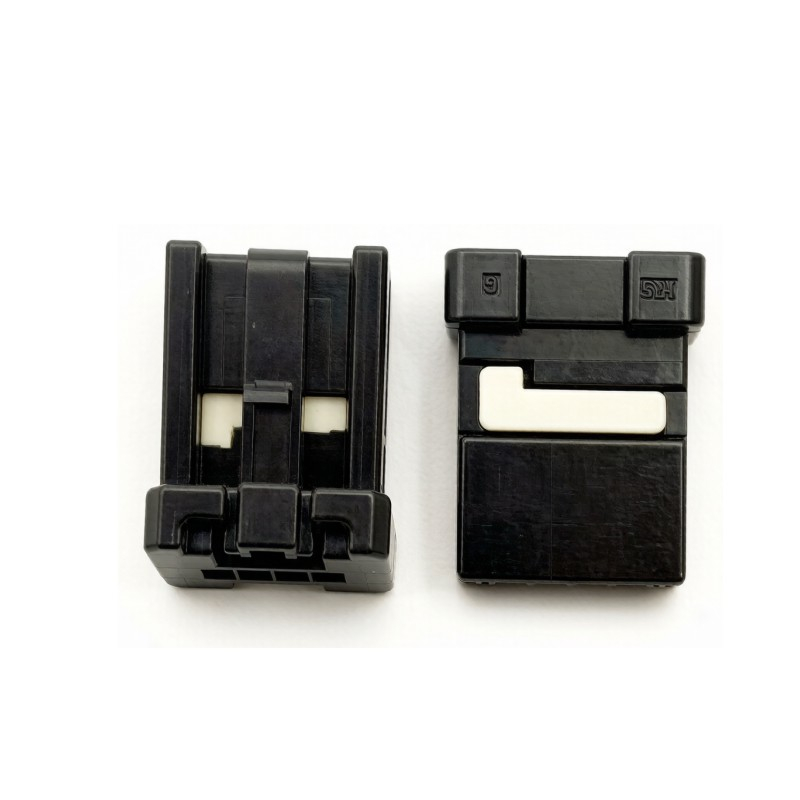

[ZE05-4S-HU/R] 2.0pitch 4P Spacing Connector Assembly

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

Drawing/Model

Product Features

This 2.0 Pitch 4P Connector Assembly features a four-position cavity layout on a 2.0mm pitch, providing a compact and efficient interconnect solution for applications requiring a limited number of circuit connections without the space overhead of larger multi-position connector housings. The housing design incorporates a positive locking latch that provides clear tactile and audible feedback upon full mating engagement, enabling production line operators to confirm proper connector installation by feel without visual verification in tight or hidden installation spaces. Each cavity is engineered to accept precision crimp terminals that provide reliable gas-tight electrical connections with low contact resistance, ensuring consistent signal integrity and power delivery across all four circuit paths throughout the connector service life. The connector housing includes polarization features that prevent reverse or cross-mating with other connectors in the ZE series family, reducing the risk of assembly errors in vehicle or equipment harness systems that may incorporate multiple similar-looking connectors in close proximity. Molded from glass-reinforced thermoplastic, the housing provides the mechanical strength required to withstand automotive vibration levels and the dimensional stability needed to maintain cavity alignment across the full operating temperature range. The compact four-position design is particularly cost-effective for applications where only a few circuits need to be connected, eliminating the expense and board space penalty of specifying connectors with more positions than required. The 2.0mm pitch provides adequate creepage and clearance between adjacent contacts for the voltage ratings typical of automotive signal circuits and low-power distribution applications.

Application Scenarios

The 2.0 Pitch 4P Connector Assembly is widely used in automotive sensor interfaces, connecting temperature sensors, pressure transducers, and position detectors to their respective electronic control units with a compact four-circuit connector that matches the typical signal channel count of individual sensor elements. In vehicle communication networks, it provides the physical interface for CAN bus, LIN bus, and other in-vehicle network segments where the four-position capacity accommodates signal, power, and ground connections within a single compact housing. Industrial equipment manufacturers apply this connector in distributed I/O modules and field device connections where the small pin count suits individual sensor or actuator interface points in factory automation systems. Building automation and security systems utilize the connector for door position sensors, card reader interfaces, and occupancy detector connections where the four-circuit design provides adequate capacity for signal and power distribution. The connector also serves in household appliance control circuits, linking user interface panels to main controller boards in washing machines, dishwashers, and cooking appliances where compact connector size supports slim cabinet designs.

Why Choose [ZE05-4S-HU/R] 2.0pitch 4P Spacing Connector Assembly

✅ **Compact 4-Position Design for Space-Constrained Applications**   The compact four-position 2.0mm pitch design provides an efficient solution for limited-circuit applications, eliminating the space overhead of larger multi-position connector housings in compact electronic assemblies.

✅ **Audible and Tactile Latch Confirmation**   Positive locking latch with audible and tactile feedback enables production line operators to confirm proper mating by feel, reducing the risk of incomplete connections in hidden installation spaces or hard-to-see assembly areas.

✅ **Polarization Prevents Cross-Mating**   Polarization features prevent cross-mating within the ZE connector family, eliminating assembly errors in harness systems with multiple similar connectors in close proximity, improving production efficiency and quality.

✅ **Durable Glass-Reinforced Housing**   Glass-reinforced thermoplastic housing withstands automotive vibration levels and maintains cavity alignment across the full operating temperature range, ensuring reliable long-term performance in demanding environments.

✅ **Cost-Effective 4-Position Solution**   Cost-effective four-position design matches the circuit count of individual sensor and actuator interface points, avoiding the expense of over-specified connector positions and reducing overall system cost.
