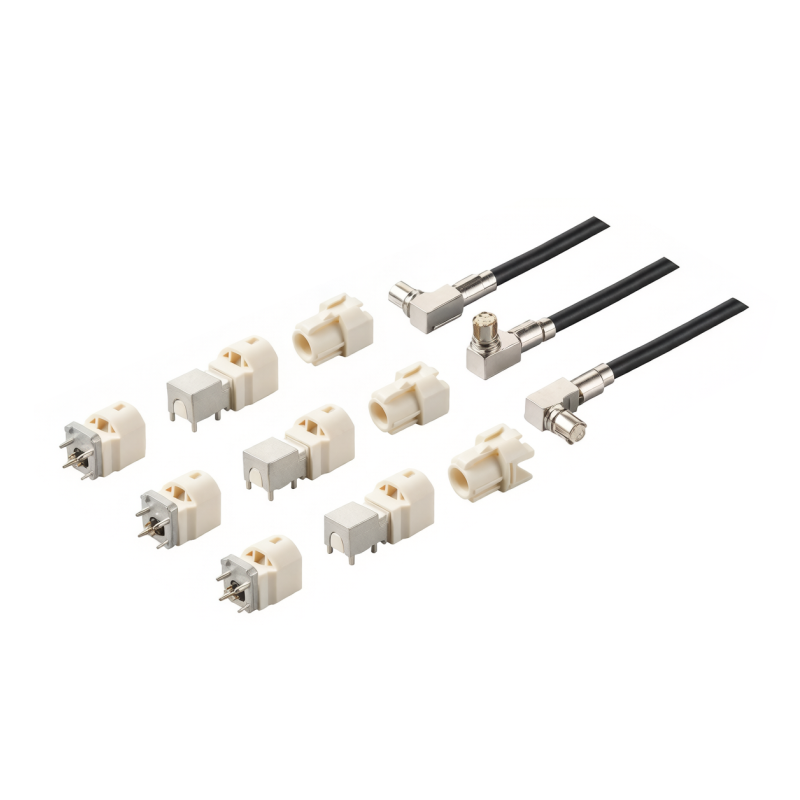

[HSDSJZSJXXX-19] HSD 4P Female Connector

The HSD 4P Female Connector is a high-speed data interface designed for automotive applications, supporting data rates up to 6 GHz. It ensures reliable signal transmission with minimal loss, is compatible with protocols like LVDS and USB, and features a durable, shielded design for harsh environments。

Availability:



Inquire Add to Basket

Model:
62、HSDSJZSJXXX-19

HSD Connector High Speed Data Connector Car Camera Connector ADAS Connector V2X Connector Vehicular Network Connector

Product Attributes

Specifications

Current Rating‌：2A	Insulation Resistance‌：500MΩ/min
Voltage Rating：50V	Withstand Voltage：500V AC/min
Contact Resistance‌：≤20mΩ	Operating Temperature Range‌：-40℃~+105℃

Material

Plastic material‌：PA669T UL94V-0‌

Terminal material：Cu

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

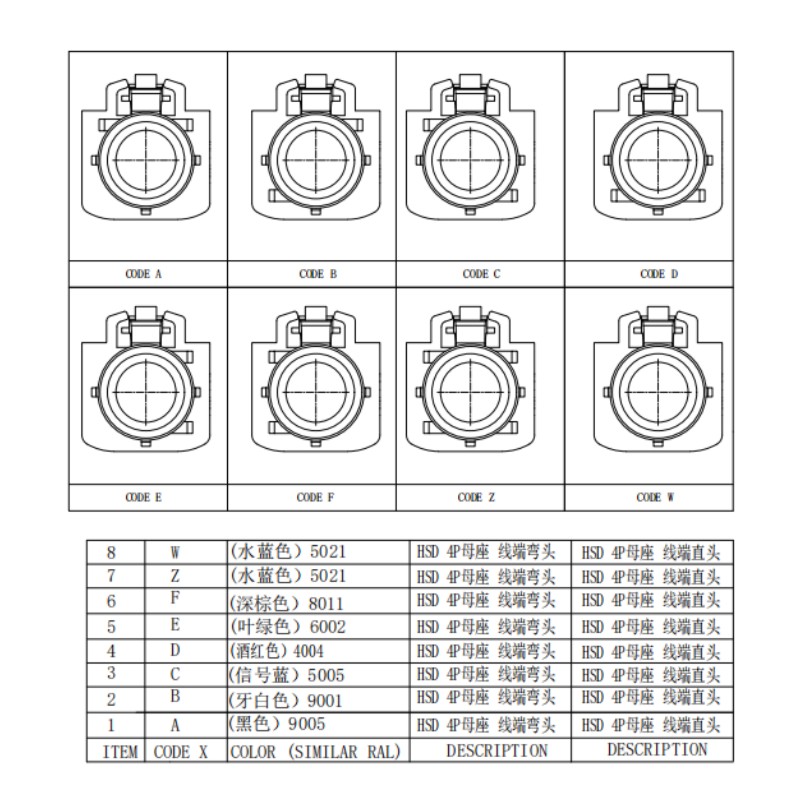

Drawing/Model

Product Features

The HSD 4P Female Connector is engineered with premium materials to ensure durability and superior performance in demanding environments. Its body is typically constructed from brass or zinc die-cast, ensuring robust mechanical strength and reliable shielding。 The insulator and dielectric components are made from high-performance thermoplastics like LCP (Liquid Crystal Polymer), which provide outstanding dimensional stability, high-temperature resistance (up to +105°C), and excellent electrical insulation。 The signal contacts utilize copper alloys such as phosphor bronze, ensuring low contact resistance, high elasticity, and robust electrical conductivity。 For environmental sealing, silicone or rubber gaskets are employed to achieve waterproof and dustproof ratings。 This material combination delivers a fully shielded, rugged connector system capable of withstanding automotive-grade vibrations and extreme temperature cycles from -40°C to +105°C。

Application Scenarios

The HSD 4P Female Connector is a key component for high-speed data transfer in automotive and industrial systems. It is widely used in Automotive Infotainment and ADAS to connect screens and cameras. Its robust, shielded design also makes it suitable for Industrial Automation and Medical Equipment. Compatible with protocols like LVDS, USB 2.0, and Ethernet, it serves as a reliable backbone for demanding connectivity applications

Why Choose HSDSJZSJXXX-19 HSD 4P Female Connector

Stable HSD connector with consistent contact resistance below 20 milliohms.
Flexible HSD connector accepting a standard range of fine-gauge wires for versatile applications.
Factory-direct HSD connector with competitive pricing and reliable supply chain.
