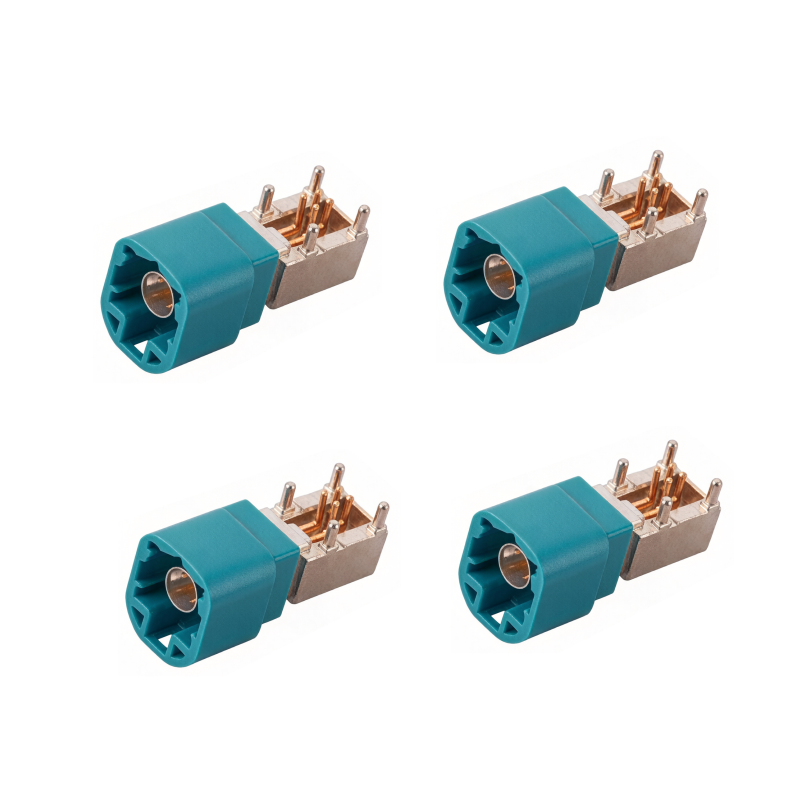

[HSDNXRPPCB18X] HSD 4pitch Horizontal Connector

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

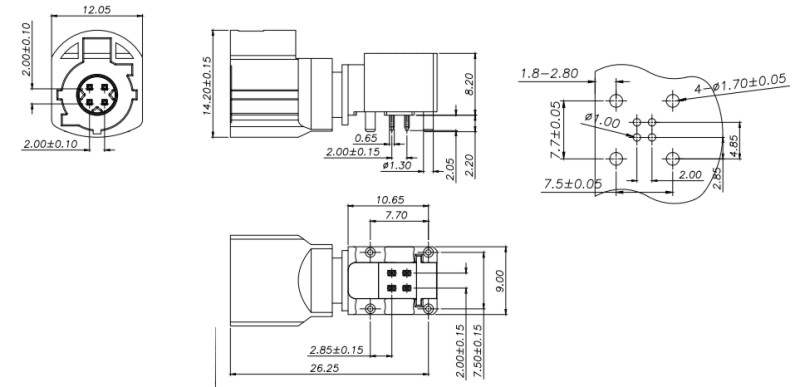

Drawing/Model

Product Features

This HSD 4-Pin horizontal connector features a precision-engineered 4mm pitch design optimized for high-speed automotive signal transmission. The fully shielded die-cast metal body delivers superior EMI suppression to protect sensitive data signals from electromagnetic interference in electrically noisy vehicle environments. Gold-plated contacts ensure consistently low contact resistance below 20 milliohms while providing excellent oxidation resistance throughout the connector's operational lifetime. Multiple PCB mounting pegs guarantee accurate alignment during solder assembly and resist mechanical stress from wire bundle weight after installation. Sealed rear-entry construction prevents debris ingress and moisture penetration in exterior mounting locations. The connector meets USCAR-2 vibration specifications and supports continuous current ratings of 2 amperes per contact at operating temperatures ranging from minus 40 to plus 105 degrees Celsius, making it ideal for engine compartment and under-body camera installations where thermal cycling and vibration are constant challenges.

Application Scenarios

This HSD horizontal connector serves automotive camera systems including rear-view backup cameras, 360-degree surround-view systems, and driver monitoring cameras positioned inside the vehicle cabin. Its fully shielded design prevents electromagnetic interference from nearby electric motors, ignition systems, and radio transmitters from corrupting the high-resolution video signals traveling between electronic control units and camera modules. The compact horizontal profile fits the narrow constraints of door panels, quarter panels, and liftgate trim where vertical space is severely limited by styling and ergonomic requirements. One-piece die-cast construction reduces assembly steps compared to multi-piece designs that require separate shielding components and additional fastening hardware. This connector is available in sealed IP67 versions for exterior camera installations where exposure to rain, car washes, and road debris requires environmental protection beyond standard interior grades. Automotive manufacturers specify HSD connectors for camera applications because the proven design has accumulated millions of field hours without significant warranty claims related to connector performance.

Why Choose [HSDNXRPPCB18X] HSD 4pitch Horizontal Connector

• Precision-HSD connector with tight tolerances ensuring consistent performance in every unit.

• Vibration-resistant HSD connector exceeding automotive LV214 and USCAR standards.

• Sealed HSD connector with multi-point sealing barriers for moisture ingress prevention.

• 4mm pitch HSD connector ensuring compatible PCB mounting and alignment.

• Factory-direct HSD connector with competitive pricing and reliable supply chain.
