2.0mm Pitch Right-angle Socket Header

The 2.0mm Pitch Right-angle Socket Header is a compact, high-reliability interconnect solution designed for PCB applications requiring space-efficient board layouts. Engineered with a standard 2.0mm pitch and right-angle orientation, it enables 90-degree mating—ideal for tight spaces and parallel board connections.
Built with high-strength PA66 GF25 housing and phosphor bronze contacts, this socket header delivers stable electrical performance: rated current up to 1A, rated voltage 100V AC, contact resistance ≤20mΩ, insulation resistance ≥1000MΩ, and dielectric withstanding voltage up to 800V AC/min. It operates reliably across a wide temperature range of -40°C to +105°C, making it suitable for demanding industrial and automotive environments.
Available in 10 to 40 pins, this RoHS-compliant connector is widely used in industrial automation, consumer electronics, IoT devices, and automotive systems. Easy to install via through-hole soldering, it provides a durable, cost-effective solution for compact PCB interconnections.

Availability:



Inquire Add to Basket

Model:
65、莫士2.0弯脚插座

FPC Connectors Wafer Connectors Board-to-Board Connectorss Wire-to-Board Connectors Wire-to-Wire Connectorss FAKRA Connectors HSD Connectors

Product Description

Specifications

Current Rating‌：1A	Insulation Resistance‌：1000MΩ/min
Voltage Rating：100V	‌Withstand Voltage：800V AC/min
Contact Resistance‌：20mΩ	Operating Temperature Range‌：-40℃~+105℃

Material

Plastic material‌：PA66 Gf25

Terminal material：—

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

Drawing/Model

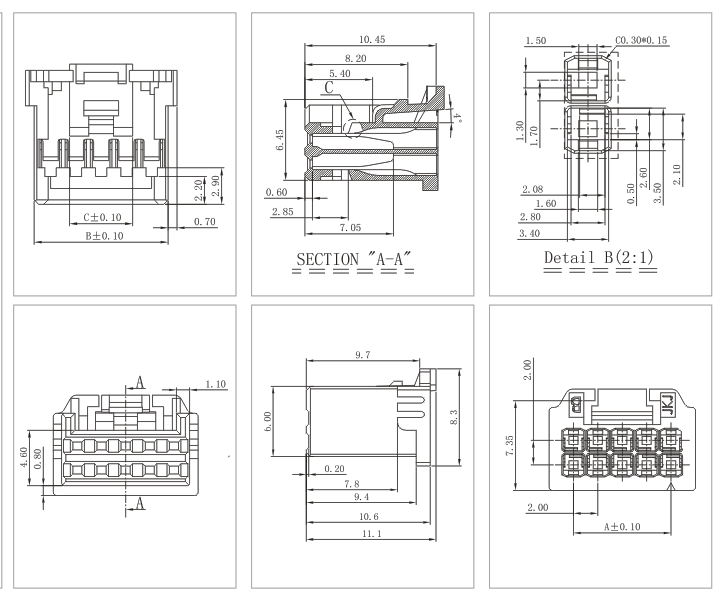

2.0mm Pitch Right-angle Socket Header Compatible

Product Features

The 2.0mm pitch right-angle socket header provides reliable interconnection with compatibility to industry standard Molex connectors. The right-angle through-hole configuration enables perpendicular board connections, optimizing PCB layout flexibility in space-constrained applications. The socket design ensures secure mating with standard pin headers and provides excellent mechanical retention.

The contacts are constructed from high-conductivity copper alloy with gold plating for superior electrical performance and corrosion resistance. The robust housing provides excellent mechanical strength and maintains contact alignment. Through-hole termination provides strong mechanical bond to the PCB and excellent resistance to mechanical stress. The connector supports various pin counts and configuration options to meet diverse application requirements.

Precision manufacturing ensures consistent contact spacing and prevents short circuits. Compatible with automated insertion equipment and wave soldering processes. The design provides excellent durability and withstands numerous mating cycles. The connector meets industry standards for electrical, mechanical, and environmental performance. Comprehensive testing validates compatibility and reliable performance with standard Molex connectors. The connector is suitable for industrial control, automotive electronics, and telecommunications applications.

Application Scenarios

Industrial control systems and automation equipment use this socket header for perpendicular board connections. Automotive electronics and infotainment systems employ this connector for space-efficient internal connections. Power supply units and converter modules utilize this socket header for reliable signal and power transmission.

Medical devices and diagnostic equipment use this connector for secure board-to-board connections. Telecommunications and networking equipment incorporate this socket header for standard interconnect applications. Audio equipment and entertainment systems employ this connector for reliable signal transmission.

IoT devices and smart home products use this socket header for compact perpendicular board connections. Test and measurement equipment utilizes this connector for reliable board-to-board connections with standard Molex compatibility. The connector is also suitable for consumer electronics requiring perpendicular board connections with industry standard compatibility.

Why Choose 2.0mm Pitch Right-angle Socket Header

The 90-degree mating orientation maximizes PCB space utilization, making it ideal for compact devices and parallel board connections where vertical clearance is limited.
The reinforced thermoplastic housing delivers superior mechanical strength, heat resistance, and dimensional stability in demanding industrial environments.
Rated at 1A current and 100V voltage, with ≤20mΩ contact resistance and 800V AC/min dielectric strength, it ensures reliable signal transmission in every connection.
It performs consistently from -40°C to +105°C, making it suitable for automotive, industrial automation, and outdoor electronics applications.
Available in multiple pin counts to match your exact design needs, with RoHS-compliant materials and easy through-hole soldering installation.
