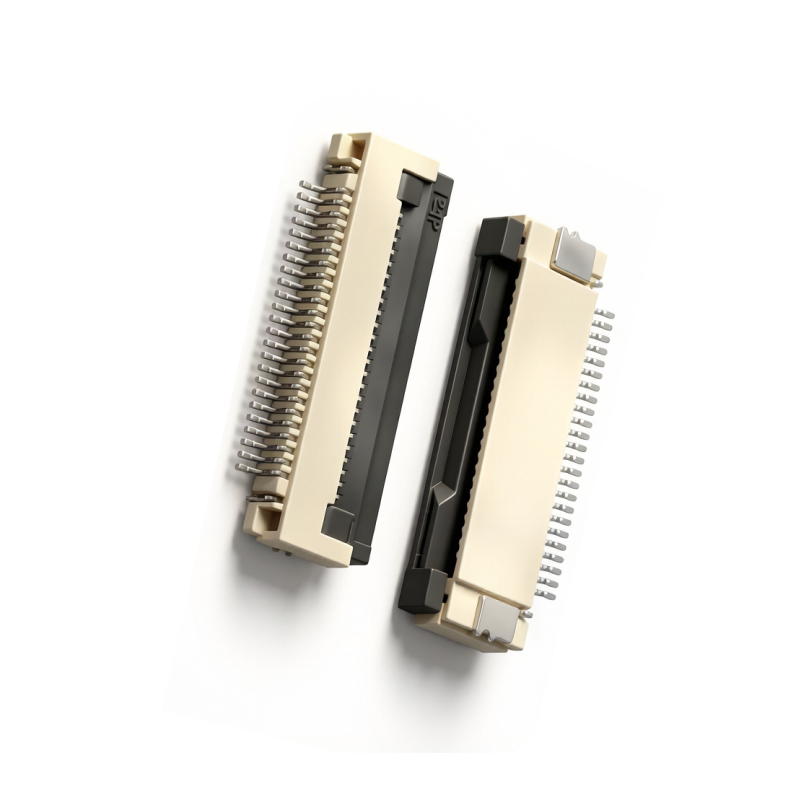

[FH28-S-0.5SH()] 0.5Pitch H2.55 Flip-Cover Connector

The 0.5Pitch H2.55 Flip-Cover Connector is a fine-pitch FPC/FFC connector featuring a 0.5mm contact pitch and a compact body height of 2.55mm. Its flip-cover actuator mechanism allows effortless flat cable insertion with zero insertion force, then locks the cable securely in place when closed to maintain reliable electrical contact. The low-profile design minimizes space consumption on densely populated circuit boards. Ideal for smartphones, portable consumer electronics, display modules, and compact camera systems where minimized connector height combined with dependable signal transmission is a critical design requirement.

Availability:



Inquire Add to Basket

Model:
29、FH28-**S-0.5SH(**)

FPC connector Flexible Flat Cable‌ vertical connector Horizontal Connector terminal block‌ power terminal‌ Wafer Connector

Product Description

Specifications

Current Rating‌：0.5A	Insulation Resistance‌：500MΩ/min
Voltage Rating：50V	Withstand Voltage：200V AC/min
Contact Resistance‌：≤40mΩ	Operating Temperature Range‌：

Material

Plastic material‌：LCP UL94V-0

Terminal material：CuSn

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

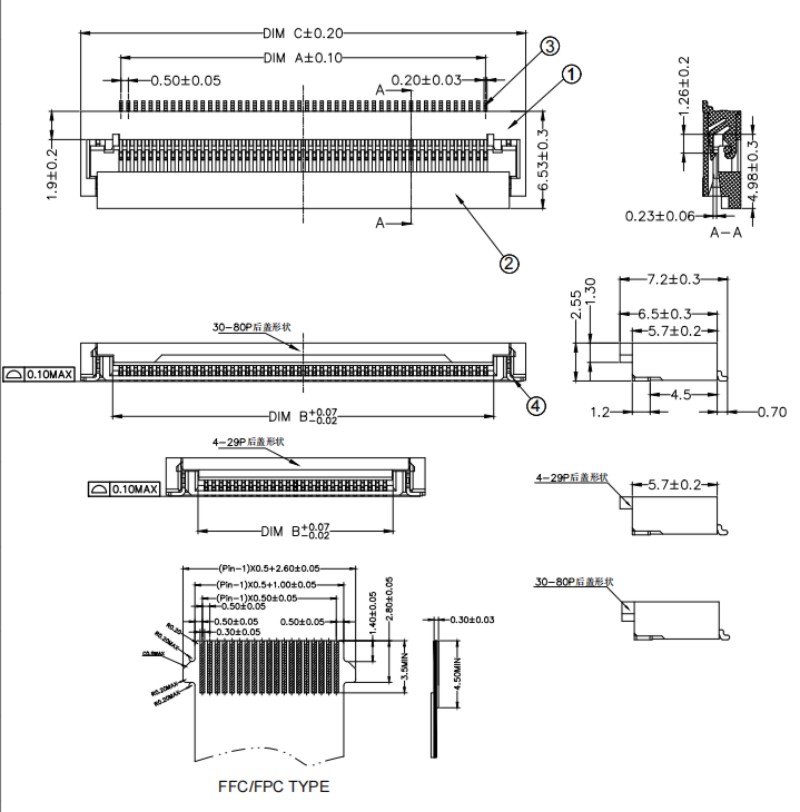

Drawing/Model

Product Features

This 0.5 Pitch H2.55 Flip-Cover Connector features a hinged actuator cover that secures the inserted FPC cable firmly against the contact array, providing reliable electrical connection and resistance to vibration-induced dislodgement during device operation and handling. The connector housing is manufactured from high-temperature liquid crystal polymer, enabling it to withstand lead-free reflow soldering processes without dimensional change that could affect contact alignment or mating performance. Contacts are precision-formed from phosphor bronze with gold plating in the contact zone, ensuring low and stable contact resistance throughout the product's operational lifetime even after exposure to humidity and mild corrosive atmospheres. The actuator provides tactile feedback when rotated to the locked position, giving operators immediate confirmation of correct engagement without requiring visual inspection. A compact footprint minimizes the board area consumed by the connector, allowing designers to allocate more space to integrated circuits and passive components. Polarization features on the FPC insertion slot prevent incorrect orientation, protecting contacts from damage during assembly operations.

Application Scenarios

The 0.5 Pitch H2.55 Flip-Cover Connector is designed for ultra-compact electronic devices such as smartphones, tablets, and wearable fitness trackers where high-density FPC cables must connect to main processing boards within extremely thin enclosures where every millimeter of thickness matters. Its flip-cover actuator mechanism allows straightforward insertion and removal of flexible printed circuits, enabling efficient assembly and field service operations without requiring specialized tools or connector-specific training. Digital cameras employ this connector for linking display modules, image processors, and control button arrays through space-saving ribbon cable interfaces that fit within the camera body alongside optical assemblies. In portable medical monitoring devices, it connects biosensor modules to data processing units within handheld or wrist-worn form factors where device compactness directly impacts patient comfort and compliance. Augmented reality headsets utilize the connector for routing display signals and sensor data between optical assemblies and computing modules within lightweight wearable frames. The low-profile design is critical for applications where overall device thickness directly impacts user experience and market competitiveness.

Why Choose 0.5Pitch H2.55 Flip-Cover Connector

1. Zero insertion force actuator of this 0.5Pitch Flip-Cover Connector enables effortless flat cable assembly while providing secure mechanical locking to prevent release.

2. Ultra-compact 2.55mm profile of this H2.55 Flip-Cover Connector minimizes board space consumption for thinnest smartphones and portable device designs.

3. Fine 0.5mm contact pitch of this Flip-Cover Connector supports high density, connecting wide cables carrying multiple display, touch, or camera data channels.

4. SMT-compatible footprint of this 0.5Pitch Connector supports automated soldering, ensuring joint quality and throughput in electronics manufacturing.

5. Backed by a mature FPC solution with industry adoption, this H2.55 Flip-Cover Connector offers application engineering for display and portable designs.
