Don't Pick the Wrong Mount: Vertical vs. Right-Angle Connector Decisions

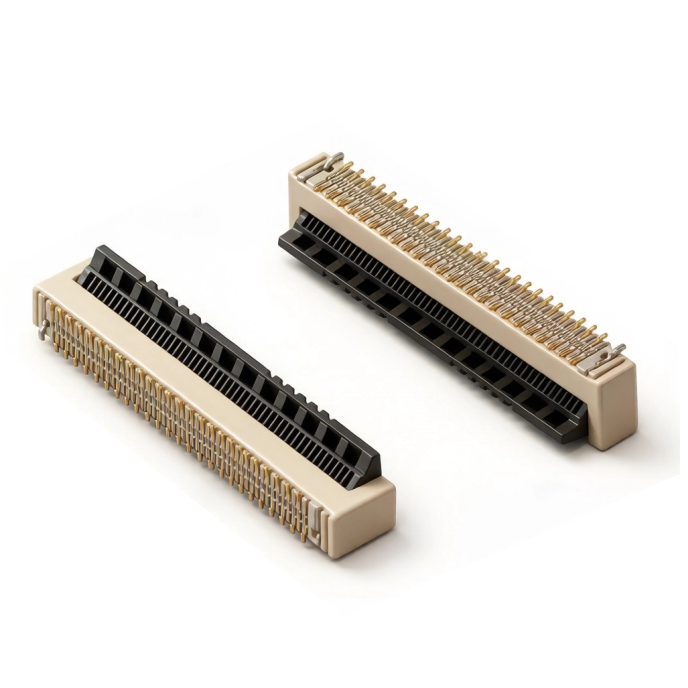

Selecting the right mounting orientation for PCB connectors affects everything from enclosure fit to long-term field reliability. The two main options — vertical mount and right-angle (horizontal) mount — serve different mechanical and electrical purposes, and choosing incorrectly can lead to clearance conflicts, solder joint failures, or costly board redesigns. Whether routing high-density traces under an FPC connector in a compact consumer device or laying out a rugged automotive control module, understanding how orientation affects your design is the first step toward a robust interconnect solution. This guide breaks down the key differences, application scenarios, and selection criteria to help you make the right choice with confidence.

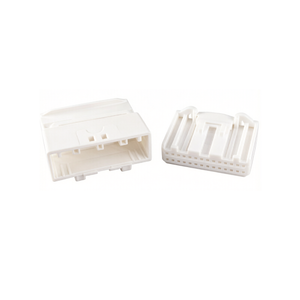

Vertical connectors stand perpendicular to the PCB, with the mating interface pointing upward and the cable entering from above. This orientation works best when overhead clearance is available and the signal path to the IC must be short and direct — critical for high-speed designs. Right-angle connectors run parallel to the board, with the mating interface exiting from the side. They are preferred for slim enclosures, dashboard modules, and behind-panel installations where height above the PCB must be minimized. Beyond saving vertical space, right-angle mounting redirects mechanical pull forces along the board plane, distributing stress more evenly across solder pads and reducing the lever effect on individual joints. For applications involving vibration or frequent harness handling — such as automotive electronics using wire-to-board connectors — this mechanical advantage significantly improves long-term joint integrity and reduces field failure risks.

The choice ultimately depends on your specific layout constraints, and many designs use both orientations on the same board. A battery management system in a new energy vehicle, for example, might use vertical connectors for inter-board stacking between monitoring ICs and the main controller, while using right-angle connectors for the cable interface to the battery pack harness. Consumer electronics like laptops and smartphones almost exclusively use right-angle variants to meet ultra-low-profile requirements, whereas industrial control panels with generous overhead clearance often default to vertical mounting for simpler harness routing. No matter which orientation your application demands, Shenzhen Jinkeji Electronics Co., Ltd. offers both vertical and right-angle versions across our full connector portfolio — including FAKRA connectors for automotive RF systems — backed by over 20 years of manufacturing experience, ISO 9001 and IATF 16949 certified quality management, and engineering support from prototyping through volume production. Contact our technical team to identify the optimal connector, mounting orientation, and customization for your next project.
