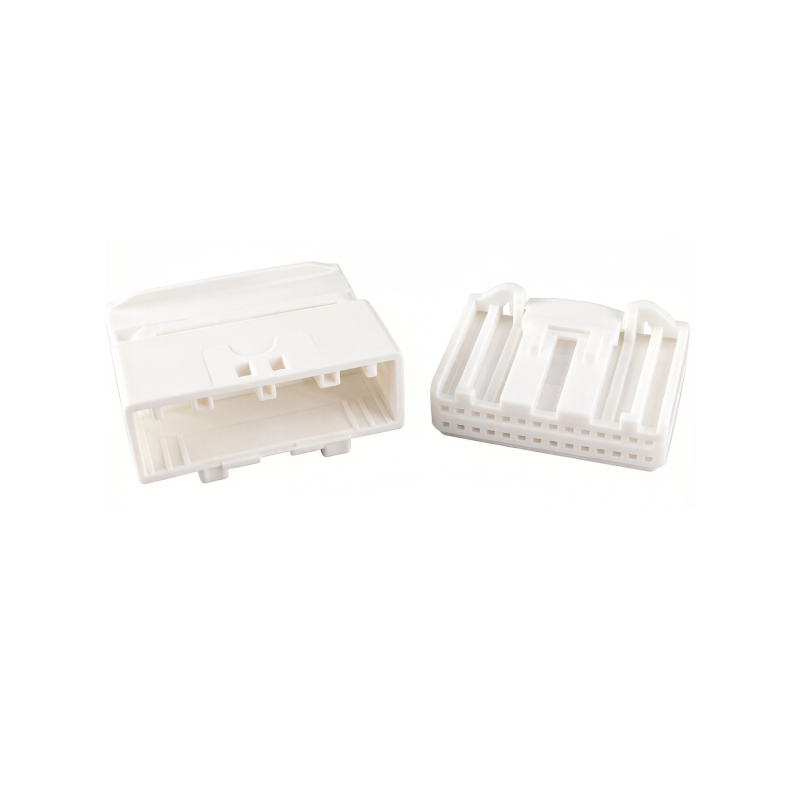

[1565377-1] 2.2Pitch 28P Wire End Female Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

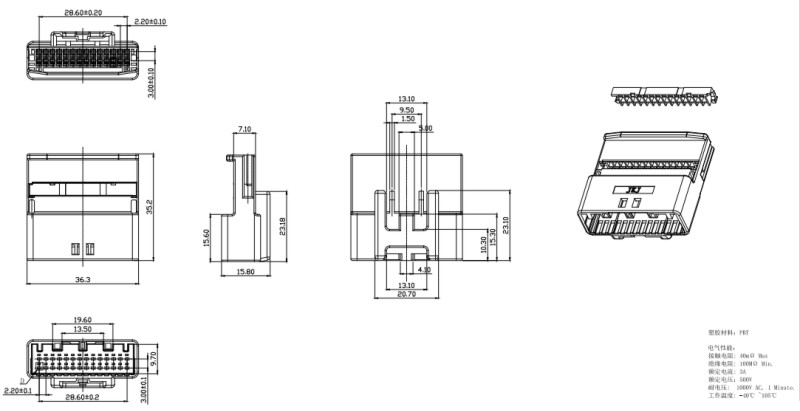

Drawing/Model

Product Features

This 2.2 Pitch 28P Wire End Female Housing features a dual-row cavity arrangement with a central locking ramp that securely retains each crimped terminal in its designated position, preventing contact displacement during handling and operation under vibration conditions. The housing body is molded from flame-retardant thermoplastic meeting automotive material standards, providing self-extinguishing properties and dimensional stability across a broad temperature range encountered in under-hood and interior vehicle environments. Keyed cavity geometries prevent incorrect terminal insertion during assembly, reducing the risk of miswired harnesses that could cause equipment damage or safety hazards. An optional secondary lock device inserts over the terminal array to provide an additional layer of retention assurance, particularly important in high-vibration applications such as off-road vehicles, construction equipment, and heavy industrial machinery. The housing's compact footprint enables dense wiring within harness bundles, while polarization features on the mating interface prevent cross-connection with similar-looking but electrically distinct headers. Strain relief provisions at the cable entry distribute mechanical loads, protecting crimp joints from fatigue failure.

Application Scenarios

The 2.2 Pitch 28P Wire End Female Housing serves as a cable-side termination component in automotive infotainment systems, connecting multiple signal wires from head units to speakers, amplifiers, display modules, and steering wheel control interfaces through a consolidated twenty-eight-circuit connector assembly. It provides a structured interface that organizes what would otherwise be a complex bundle of discrete wires into a single, manageable connector that simplifies harness design, manufacturing, and field service. In industrial control panels, this housing links programmable logic controller outputs to field devices such as solenoid valves, proximity sensors, variable frequency drives, and motor starters across distributed automation networks. Medical equipment manufacturers utilize it for organizing connections between diagnostic instrument modules and central processing units in systems that require reliable signal transmission and serviceable disconnection. The female housing design incorporates cavities that accept standard crimp terminals, enabling harness fabricators to prepare cable assemblies using conventional crimp tooling without investing in proprietary application equipment. Its standardized pitch ensures interchangeability with board-mount headers from multiple suppliers, offering procurement flexibility and reducing supply chain risk.

Why Choose [1565377-1] 2.2Pitch 28P Wire End Female Housing

• 28-position receptacle of this 2.2Pitch 28P Female Housing provides ample circuit capacity for complex wire harnesses, reducing need for multiple smaller connectors.

• Secure locking engagement of this Wire End Female Housing with the male housing prevents disconnection during vibration, ensuring uninterrupted signal and power delivery.

• Engineering plastic construction of this 28P Female Housing resists chemicals and thermal cycling, maintaining dimensional stability and retention throughout service life.

• Compatible with the standard pitch terminal ecosystem, this 2.2Pitch 28P Female Housing enables flexible harness design and simplified multi-source procurement strategies.

• Widely adopted in automotive body and powertrain applications, this 28P Wire End Female Housing has extensive field-proven performance and professional supply chain support.
