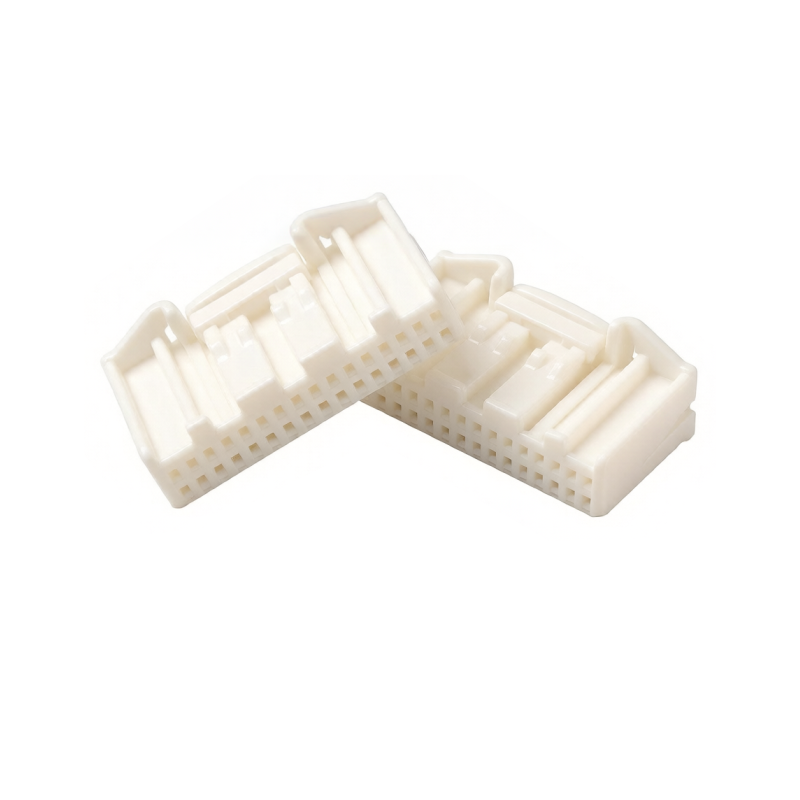

[1318747-1] 2.2Pitch 32P Wire End Male Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

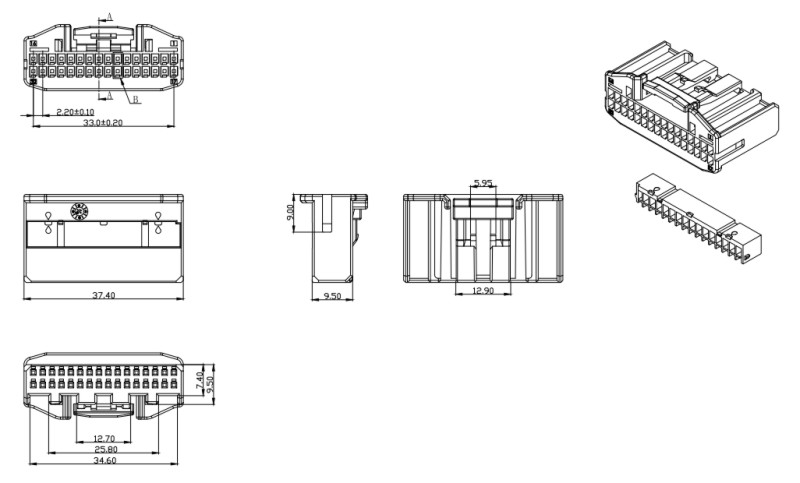

Drawing/Model

Product Features

This 2.2 Pitch 32P Wire End Male Housing features a dual-row configuration with integrated locking ears that engage the female mating connector firmly, maintaining connection integrity under vibration and mechanical stress encountered in automotive and industrial operating environments. The housing is injection-molded from high-impact nylon, providing the mechanical durability required for service applications where connectors may be repeatedly engaged and disengaged during troubleshooting and component replacement procedures. Terminal cavities incorporate chamfered lead-in surfaces that guide crimped terminals smoothly into position during insertion, reducing assembly force and protecting contact surfaces from scratch damage that could increase contact resistance. Polarization ribs molded into the mating interface ensure correct alignment, preventing insertion of the connector into an incompatible header that could damage contacts or housing features. Custom color options facilitate circuit identification and differentiate between connectors with identical physical dimensions but distinct electrical assignments. The housing accommodates optional strain relief accessories that distribute cable loads away from terminal crimp joints.

Application Scenarios

The 2.2 Pitch 32P Wire End Male Housing provides cable-side connectivity for automotive instrument cluster assemblies and HVAC control panels, routing display signals, button inputs, and illumination circuits between the dashboard electronics and the main vehicle network communication bus. Industrial test and measurement equipment manufacturers utilize this housing for data acquisition input modules that connect external sensor arrays to internal signal conditioning boards through serviceable cable-to-board interfaces. In renewable energy systems, it links inverter control boards to external communication interfaces for remote monitoring, grid management, and performance optimization across distributed generation sites. Commercial food service equipment employs it for organizing temperature probe connections and door switch circuits within compact control enclosures that must withstand regular cleaning and sanitation procedures. The male housing's standardized cavity layout accepts industry-common crimp terminals, ensuring compatibility with established harness fabrication tooling and processes. Its polarization and keying features prevent mismating, a critical safety consideration in applications where incorrect connections could damage expensive electronic assemblies or create hazardous operating conditions.

Why Choose [1318747-1] 2.2Pitch 32P Wire End Male Housing

• 32-pin plug housing of this 2.2Pitch 32P Male Housing provides extensive circuit capacity in a space-efficient form for ECU and control module harness interfaces.

• Reliable locking engagement of this 32P Male Housing with the female receptacle ensures stable retention under thermal cycling and vehicular vibration throughout service life.

• High-quality polymer construction of this 2.2Pitch Male Housing maintains mechanical and dimensional performance across typical automotive operating temperature ranges.

• Aligned with the standard pitch terminal system, this 32P Male Housing enables interchangeability with compatible housings and reduces risk in multi-source strategies.

• Supported by a mature platform with established approvals, this 2.2Pitch 32P Male Housing offers professional documentation and reliable series supply capability.
