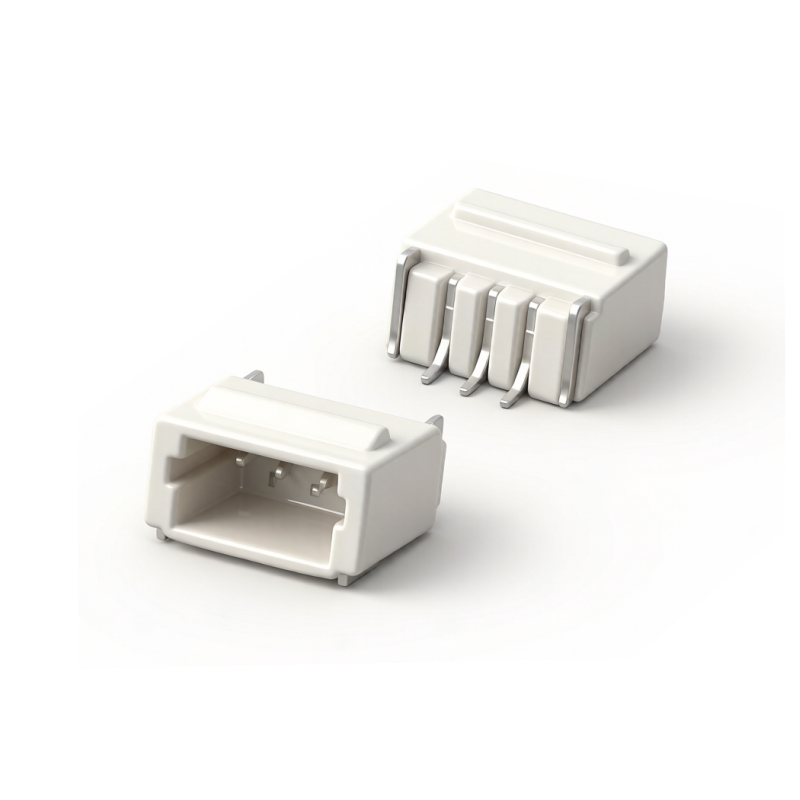

The 1.0mm Pitch Right Angle SMT Pin Header from Shenzhen Jinkeji Electronics Co., Ltd. is a compact board-to-board and board-to-cable interface that brings signals off the edge of a PCB without consuming top-side height. Its 1.0 mm pitch and right-angle (horizontal, surface-mount) body let the pins exit at 90° along the board edge, so two stacked or adjacent boards can connect sideways in space-limited enclosures while the part rides the standard SMT reflow line like any other surface-mount component.
This right-angle SMT pin header is built from an LCP (liquid crystal polymer) housing that holds pin alignment through lead-free reflow, with terminals formed from CuSn (copper-tin alloy) and finished in CuSn for stable, low-resistance mating. Electrically it is rated 1.0 A and 50 V AC(rms)/DC, with a 200 V AC withstand voltage, 800 MΩ minimum insulation resistance, and 40 mΩ maximum contact resistance. The operating range spans -40 ℃ to 105 ℃, so the part stays reliable from cold-storage and outdoor electronics up to enclosed industrial and automotive-grade modules. Because the body is surface-mount rather than through-hole, it supports automated pick-and-place and avoids the back-side protrusion that straight pin headers leave behind.
The 1.0mm Pitch Right Angle SMT Pin Header is the practical choice when a layout needs a low-profile, reflow-ready edge connection instead of a tall through-hole header. Send our engineering team your pin count, stacking height, and board-thickness requirements, and we will confirm footprint compatibility and sample availability for your build.
A straight header stands up and eats vertical clearance; a right-angle SMT header lies along the board edge, freeing the space above for a display, battery, or second PCB. At 1.0 mm pitch it keeps the row narrow, and the LCP/CuSn construction carries the part through automated reflow without losing contact alignment — exactly what compact consumer, IoT, and industrial designs need at the enclosure wall.
A: Yes. Its LCP housing and CuSn terminals are specified for a -40 ℃ to 105 ℃ operating range and are intended for standard SMT reflow assembly, so it runs on the same lead-free line as the rest of your surface-mount components.
