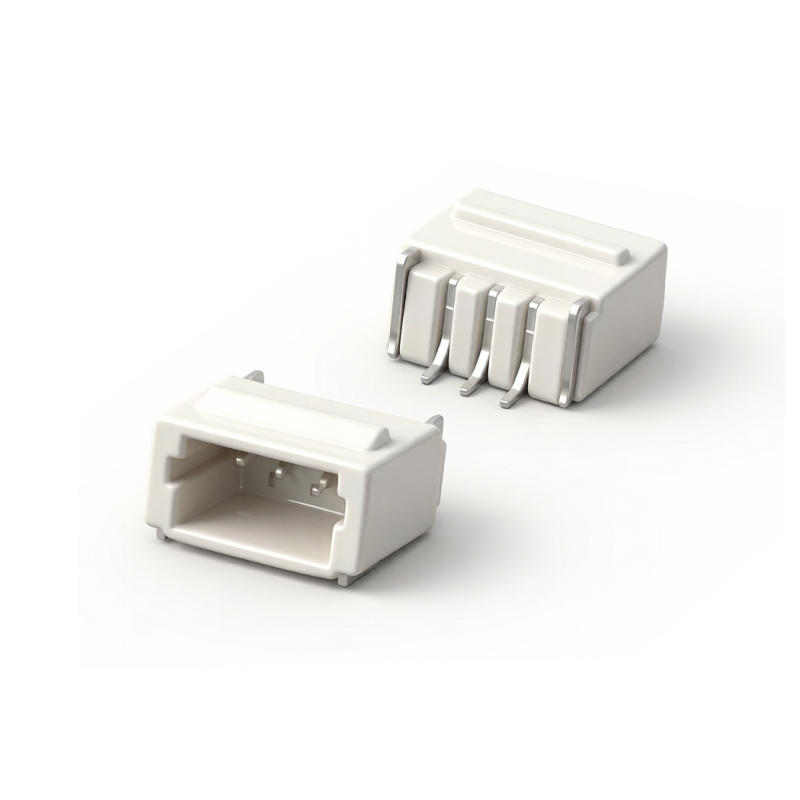

1.0mm Pitch Right Angle SMT Pin Header

For design engineers laying out compact boards, the 1.0mm Pitch Right Angle SMT Pin Header solves the common squeeze between pin density and vertical clearance. When a straight header would stand too tall or block an adjacent layer, this right-angle part redirects the mating interface to the board edge, letting the cable or matching socket approach from the side instead of straight up. CuSn terminals carry the signal path with dependable conductivity, while an LCP UL94V-0 insulator keeps its shape through lead-free reflow and meets flame-safety needs. The surface-mount footprint lines up with standard pick-and-place and solder routines, so it drops into automated assembly without special fixtures. Rated across a -40C to +105C window, it holds up from cold storage to heated enclosures. The outcome is a small, side-exit header that frees the height budget and keeps the board edge clean for the layouts where a vertical pin simply will not fit.

Availability:



Inquire Add to Basket

Model:
9、103086-0XX111-1

FPC connector Wafer connector‌ Wire-to-Board Connector Board-to-Board Connectors Wire-to-Wire Connector FAKRA Connectors HSD Connectors

Product Description

Specifications

Current Rating‌：1A	Insulation Resistance‌：800MΩ/min
Voltage Rating：100 V AC(rms)/DC	‌Withstand Voltage：200V AC/Minutes
Contact Resistance‌：≤30mΩ	Operating Temperature Range‌：-40℃~+105℃

Material

Plastic maerial‌：LCP

Terminal material：CuSn

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact

customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

Drawing/Model

1.0A Horizontal SMT Pin Header

Product Features

The right-angle pin header starts by giving the layout engineer a side-exit option where a vertical pin would collide with a cover or a neighboring component. Because the pins turn 90 degrees at the board surface, the mating connector or cable enters from the edge, so the stack height above the PCB drops and the area directly above the header stays clear for other parts. During placement, the surface-mount body seats through standard SMT reflow, and an LCP insulator rated UL94V-0 holds its form through the heat without warping. CuSn contacts provide a stable, low-resistance path that keeps the signal honest across many insertions and field conditions. When the matching female header or socket is pushed on, the right-angle geometry aligns the rows naturally and keeps mating force low, which reduces wear on the pins and speeds up hand or automated assembly. After the link is made, the compact 1.0mm spacing packs more positions into a short edge run, returning board space to the circuit around it. For any build that needs a tidy, side-facing pin interface without surrendering height or reliability, the 1.0mm Pitch Right Angle SMT Pin Header is a practical. repeatable choice.

Application Scenarios

The 1.0mm Pitch Right Angle SMT Pin Header earns its place wherever a board edge meets a tight vertical budget. In a smart-home control panel, the main PCB sits close under a molded cover, and a right-angle header lets the display or keypad flex exit sideways so the lid closes without pressing on the pins. Inside an automotive navigation or LCD module, the same side-entry approach routes the link to the panel from the board edge, clearing the height that a vertical pin would steal in a shallow dashboard cavity. On an industrial IoT sensor node, the connector faces outward toward the mating socket so technicians seat and unseat the cable along the enclosure wall rather than fighting for top-side access. Across all three, the win is the same: a compact pin interface that turns the connection to the side, keeps mating simple, and protects the board's height budget. It belongs in these builds, where edge routing and a low profile decide whether the enclosure closes at all.

Why Choose 1.0A Horizontal SMT Pin Header

1. Space-saving side exit - the 1.0mm Pitch Right Angle SMT Pin Header's 90-degree pin turn redirects mating to the board edge, so the header keeps the area above the PCB clear for other components.

2. CuSn terminals - a copper-tin alloy contact path delivers stable conductivity and dependable performance across many mating cycles.

3. LCP UL94V-0 insulator - the liquid-crystal-polymer housing survives lead-free reflow and meets flame-safety requirements.

4. Standard SMT assembly - surface-mount terminations follow common pick-and-place and solder profiles, so it drops into existing lines with no special tooling.

5. Wide temperature range - rated from -40C to +105C, it covers consumer, industrial, and automotive-cabin environments without derating.

FAQs

Q: What connectors mate with the 1.0mm Pitch Right Angle SMT Pin Header?

A: It is built for 1.0mm-pitch female headers, receptacles, or socket connectors that match the same 1.0mm spacing and row layout. Confirm the pin count, row count, and orientation against the product drawing before layout so the mating part seats correctly.

Q: Can this 1.0mm right-angle SMT pin header replace a different pitch header?

A: No - the 1.0mm pitch sets the center-to-center spacing, so it only interlocks with 1.0mm-pitch mating parts. Mixing it with a 1.27mm or 2.0mm pitch socket would misalign the contacts, so keep the pitch consistent across the mated pair.

Q: What temperature and current range does this 1.0mm right-angle pin header support?

A: The header is rated for 1.0A per contact and 50V AC/DC, with an operating range of -40C to +105C. These values cover typical consumer, industrial, and automotive-cabin use; verify against your specific application's load and environment before release.
