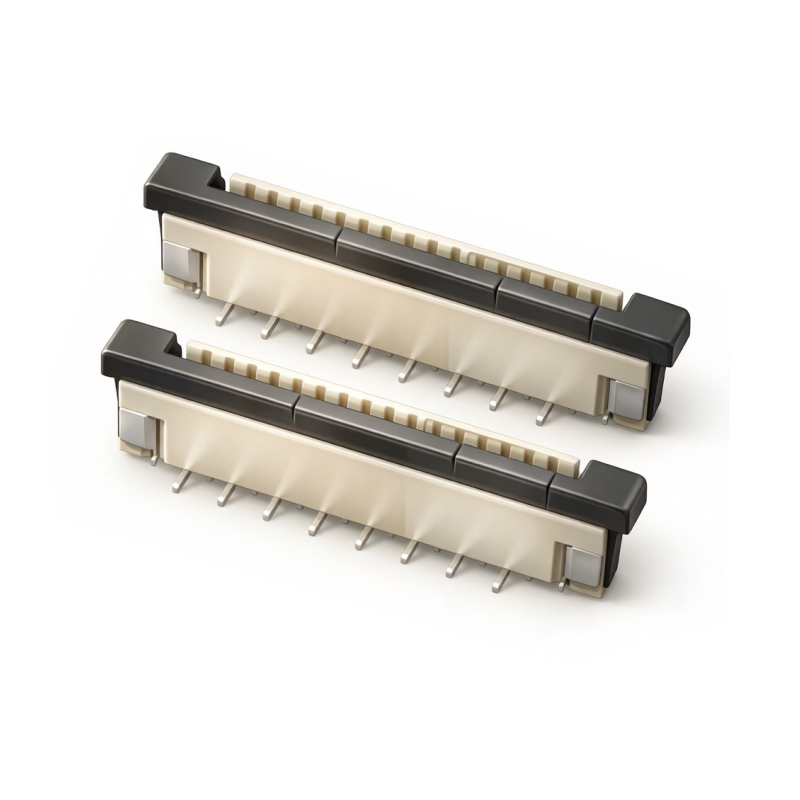

1.0mm Pitch FPC ZIF Vertical Slide Lock SMT Staggered Connector

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact

customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

Drawing/Model

Product Features

1.0mm Pitch FPC ZIF Vertical Slide Lock SMT Staggered Connector ZIF Locking Mechanism — The zero-insertion-force actuator secures the FPC without requiring insertion force, preventing gold finger wear and ensuring reliable contact after repeated mating cycles. Benefit: extends connector service life and reduces field failures in portable devices.

Vertical SMT Configuration — The connector stands the PCB, freeing board edge space for other components. This orientation is optimized for automated pick-and-place assembly and reflow soldering. Benefit: streamlines production and reduces assembly costs.

Stable Electrical Performance — Rated at 0.5A per contact with a 50V voltage rating, the connector maintains signal integrity within an operating range of -25°C to +85°C. The high-temperature LCP insulator withstands peak reflow temperatures up to 260°C. Benefit: delivers reliable performance across diverse operating environments.

Inquire about custom pin counts, plating options, and packaging configurations.

Application Scenarios

In Automotive Electronics systems, the demand for higher signal density in smaller form factors continues to drive connector miniaturization. Engineers must balance contact pitch reduction with maintained mechanical robustness and electrical reliability. The 1.0mm Pitch FPC ZIF Locking Vertical SMT Staggered Type delivers this balance through its precision 1.0mm contact spacing and rugged ZIF locking mechanism.

Within Communication Equipment environments, connectors face exposure to thermal cycling, humidity, and mechanical stress during normal operation. Standard interconnect solutions may degrade over time under these conditions. This connector's phosphor bronze contacts and high-temperature insulator maintain stable electrical performance across -25°C to +85°C, supporting long-term reliability.

JKJ provides full engineering support for integration, including recommended PCB land patterns, solder stencil design guidelines, and application-specific qualification testing upon request. This ensures smooth adoption and reduces development risk for your engineering team. With support for automated SMT assembly and standard reflow profiles, this interconnect solution integrates seamlessly into existing production lines while reducing overall manufacturing cycle time and cost.

Why Choose 0.5mm Pitch FPC ZIF Front-Insertion Rear-Flip Type

• Two Decades of Expertise — Since 2000, JKJ has focused on connector design and production, serving clients across consumer, automotive, and industrial sectors across diverse application environments.

• Customization Expertise — JKJ offers tailored connector solutions including custom pin counts, contact plating options, and packaging configurations to meet application-specific needs across diverse application environments.

• IATF 16949 & ISO 9001 Certified — Our quality management system ensures consistent product quality through traceable manufacturing processes and rigorous final testing across diverse application environments.

• Global Regulatory Compliance — JKJ connectors are manufactured with RoHS compliant materials, facilitating international trade and simplifying regulatory approval processes for customers across diverse application environments.

• Reach out to our support team for detailed compliance documentation.
