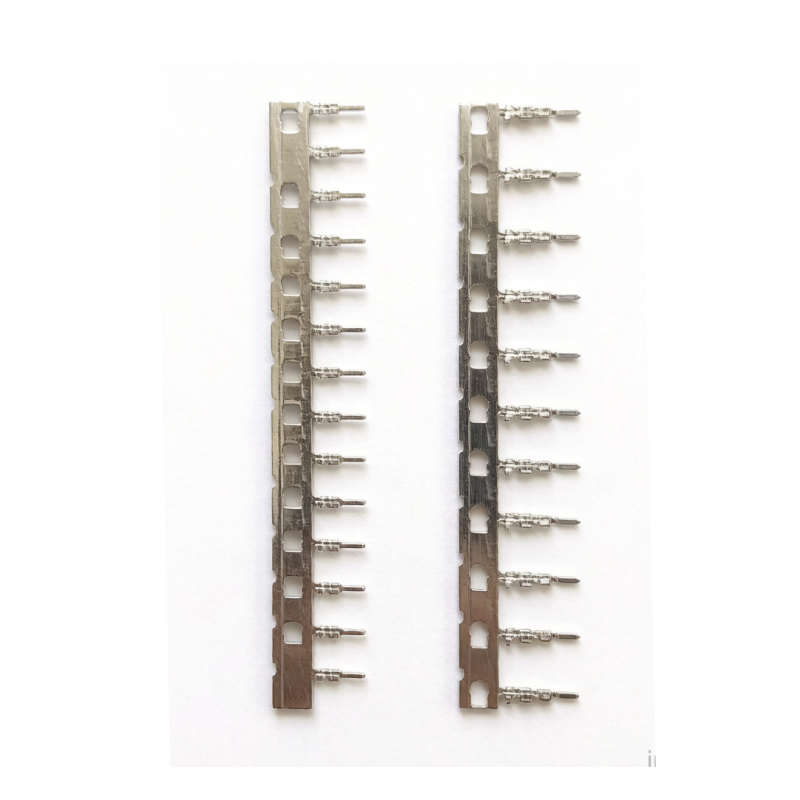

2.0pitch 10P Female Crimp Terminal

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

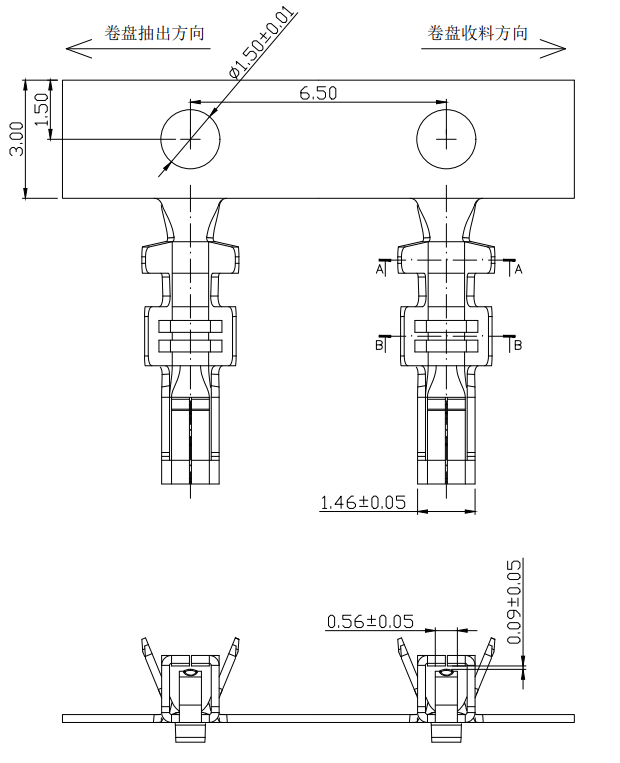

Drawing/Model

Product Features

This 2.0 Pitch 10P Female Crimp Terminal set features precision-stamped female contacts manufactured from high-conductivity copper alloy, providing the electrical performance required for both signal-level and moderate-power circuit applications within the connector system. Each female contact incorporates a closed-barrel conductor crimp zone that creates a gas-tight connection with the stripped wire conductor when crimped with recommended tooling, preventing the formation of oxide layers at the conductor interface that could increase contact resistance over time. The female contact interface is designed with a bifurcated or multi-finger beam geometry that provides consistent normal force against the mating male pin, ensuring reliable electrical continuity with low and stable contact resistance across multiple mating cycles and the operational temperature range. Selective precious metal plating on the contact surfaces provides corrosion resistance and reduces fretting wear during connector micro-motion caused by vibration and thermal cycling, maintaining contact integrity in demanding automotive and industrial environments. An insulation crimp zone behind the conductor crimp provides strain relief for the wire, gripping the insulation jacket to distribute mechanical loads and prevent conductor fatigue at the crimp point during flexing and vibration exposure. The terminal includes a flexible locking lance that engages the housing cavity retention feature upon insertion, providing a secure snap-in seat with tactile feedback that confirms proper terminal seating during harness assembly. The crimp terminals are designed to accommodate a specified range of wire gauges, providing flexibility in harness design while maintaining the mechanical and electrical performance required by the GT8E connector specification.

Application Scenarios

The 2.0 Pitch 10P Female Crimp Terminal set is used throughout the connector system in automotive wiring harness manufacturing, providing the female contact interface for connections to electronic control units, sensor modules, and power distribution blocks across vehicle body, chassis, and powertrain electrical architectures. Industrial equipment manufacturers specify these female terminals for control panel wiring in factory automation systems where the GT8E connector platform provides the standardized interconnect solution for sensor and actuator signal routing. Commercial vehicle electrical systems utilize these terminals in lighting controllers, diagnostic ports, and communication interfaces where reliable female contact performance is essential for maintaining circuit integrity under vibration and environmental exposure. In off-highway equipment, the terminals serve in hydraulic controller connections and implement sensor interfaces where robust wire termination and reliable female contact engagement are required for safe and productive machine operation. The terminal set also supports aftermarket and service harness repair applications, providing replacement contacts for damaged or corroded terminals in existing GT8E connector installations.

Why Choose  2.0pitch 10P Female Crimp Terminal

• High-conductivity copper alloy construction of these Female Crimp Terminals ensures reliable electrical performance for both signal and moderate-power circuits within the connector system.

• Closed-barrel conductor crimp creates gas-tight wire connections that prevent oxide formation, maintaining low contact resistance throughout the terminal service life.

• Multi-finger female contact geometry provides consistent normal force against the mating male pin, ensuring reliable electrical continuity across mating cycles and temperature ranges.

• Selective precious metal plating resists corrosion and fretting wear, maintaining contact integrity in demanding automotive and industrial vibration environments.

• Insulation crimp zone provides strain relief that prevents conductor fatigue at the crimp point, extending wire harness service life under flexing and vibration conditions.
