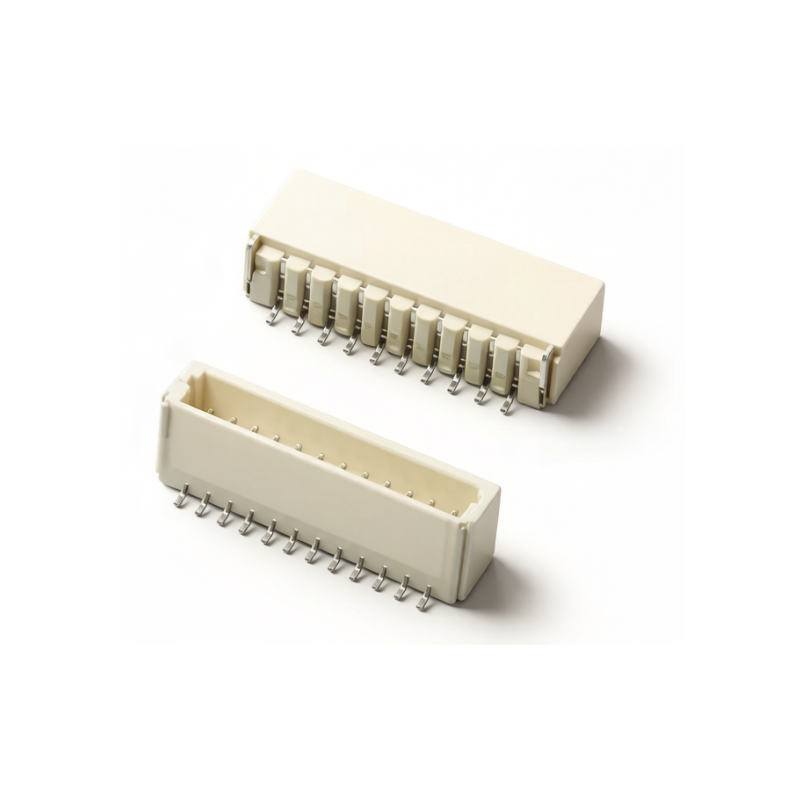

103088-XXX111-1

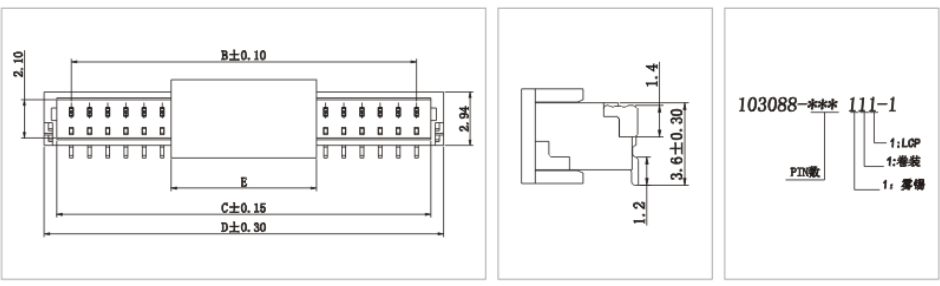

| Current Rating：1A | Insulation Resistance：800MΩ/min |
| Voltage Rating：50V | Withstand Voltage：200 V AC / 1 minute |
| Contact Resistance：≤40mΩ | Operating Temperature Range：-40℃~+105℃ |
| Plastic maerial：LCP UL94V-0 | Terminal material：CuSn |
tape and reel、 tube packaging、Tape and Reel Package
Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact
customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.
Vertical 1.0mm parts with a molded flange mount more rigidly to the board, which matters when the mate sees frequent hand coupling and the solder joints must not bear the load alone. This connector stands upright and adds a flange with through-holes that take screws or stakes for extra hold against pull-out during service. The CuSn terminal and anchor tab resist withdrawal, while the LCP UL94V-0 body survives the reflow oven without warping or losing its shape.
It is rated 50V and 1.0A with contact resistance at 40 milliohm maximum for a clean signal path across the flex. Insulation resistance is 800MΩ minimum and the dielectric-withstand rating is 200V, comfortable for logic and low-voltage rails that need isolation. Service temperature runs -40 to 105°C for general and industrial duty without a special grade or a second source.
The flange spreads mechanical stress away from the solder fillets, so the part lasts through repeated mating and the odd yank on the cable by an operator. Use it where a 1.0mm vertical link must stay put under hand force and vibration, and the board can spare the flange footprint for the sake of reliability.
In panels that operators plug by hand every day, this 1.0mm vertical connector holds its place against the force of the mate and the pull of the cable. The flange and anchor tab keep the body from lifting when the flex is yanked, protecting the solder fillets that would otherwise carry the strain and crack over time.
Rated 50V and 1.0A, it links signals and low power between the board and the flex without stressing the conductor. The LCP UL94V-0 shell handles the oven and the 800MΩ insulation preserves leakage down on sensitive logic lines. The -40 through 105°C range fits control cabinets, kiosks, and other gear that runs in varied conditions on the floor.
Where the mate is coupled and uncoupled often, the rigid mount pays off in fewer field failures and less downtime. The upright form also makes the contact visible for a quick check during assembly. Specify it where a 1.0mm vertical part needs a flange for mechanical security and the panel sees real handling from users.
Secure mounting: the integrated flange fixes the connector firmly and aids precise alignment during mating. Joint protection: stable positioning reduces mechanical stress on solder joints under handling and vibration.
Durable contacts: CuSn terminals with anchor tabs provide solid conductivity and board retention. The LCP material is rated UL94V-0 and endures reflow temperatures while keeping its dimensions.
Specified limits: 50V, 1A, and 800 megohm isolation between 40 and 105 degrees Celsius.
Q: What does the flange do?
A: The flange offers a mounting and alignment feature that fixes the connector firmly and helps position it precisely, protecting solder joints under stress.
Q: What are the terminal materials?
A: The terminals and anchor tabs are CuSn, offering solid conductivity and secure board retention.
