1.0mm Pitch FPC Vertical Non-Polarized Flip-Lock Connector

When a line moves fast and mistakes are expensive, a connector that cannot be inserted the wrong way is worth less than one that can be inserted either way without thinking. This 1.0mm FPC vertical non-polarized flip-lock connector takes that second path: the flat flex cable seats from either orientation, so assemblers never pause to check direction, and the flip-lock actuator still clamps it firmly for a low-resistance hold. The natural LCP UL94V-0 housing and black LCP lock bar resist heat and flame, while CuSn contacts with nickel, tin, and gold plating keep the path stable through reflow and long service. Rated at 50V and 1A, it fits compact vertical layouts where forgiving assembly and a secure joint both matter, and where training time is better spent elsewhere than on cable orientation. In high-volume builds the absence of a key is not a compromise but a quiet productivity gain that compounds across every unit shipped.

Availability:



Inquire Add to Basket

Model:
101097-***111-1

FPC connector Wafer connector‌ Wire-to-Board Connector Board-to-Board Connectors Wire-to-Wire Connector FAKRA Connectors HSD Connectors

Product Description

Specifications

Current Rating‌：1.0 A	Insulation Resistance‌：800MΩ/min
Voltage Rating：50 V	‌Withstand Voltage：200 V AC/min
Contact Resistance‌：≤40mΩ	Operating Temperature Range‌：-40℃~+105℃

Material

Plastic maerial‌：LCP Natural UL94V-0

Terminal material：CuSn

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact

customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

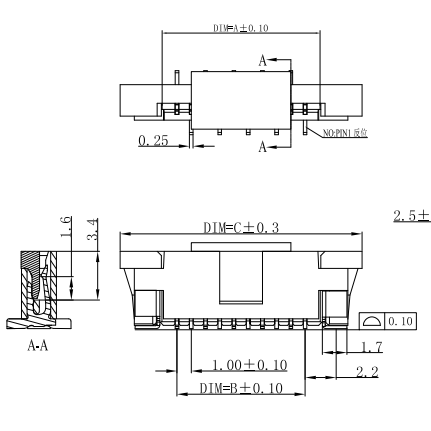

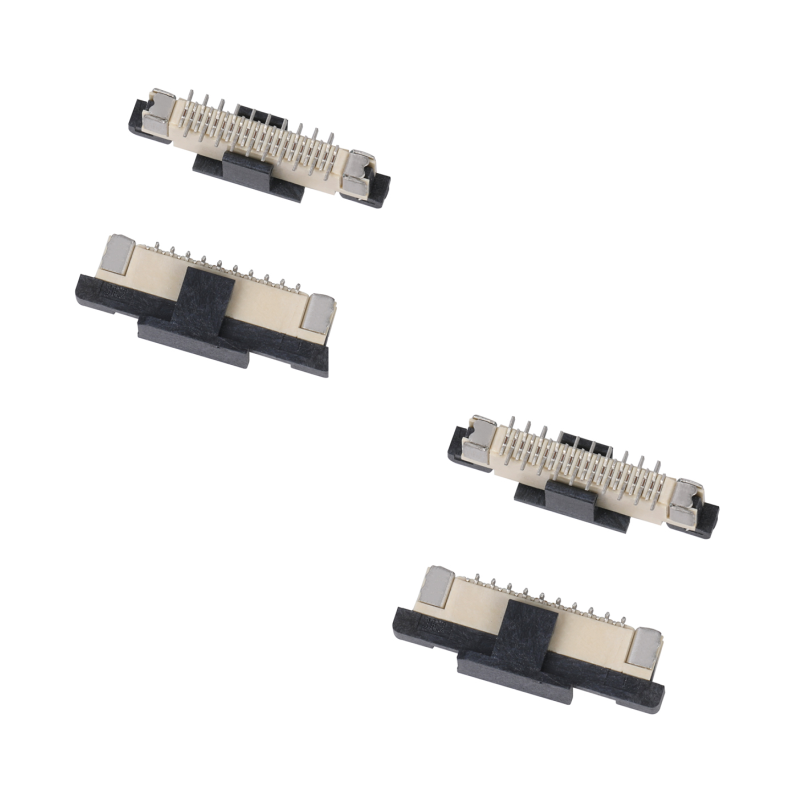

Drawing/Model

1.0mm Pitch FPC Vertical Non-Polarized Flip-Lock Connector

Product Features

The non-polarized flip-lock design is what makes this connector forgiving on a busy line. Without a keying feature, the flat flex cable can seat from either side, which speeds hand assembly and simplifies routing, while the flip-lock actuator clamps it securely for a low-resistance, pull-resistant hold that does not depend on orientation.

The natural LCP housing is rated UL94V-0 for flame retardance and withstands reflow heat with stable dimensions, and a black LCP lock bar provides durable actuation that survives many open-and-close cycles. Contacts are CuSn with a nickel underplate and tin finish, and a separate gold-plated path supports reliable board attachment that tolerates the thermal shock of soldering without cracking the joint. Electrically it carries a 50V AC(rms)/DC and 1A AC(rms)/DC rating, with 40 milliohm maximum contact resistance, 200V AC dielectric withstanding, and 800 megohm minimum insulation resistance for steady signal behavior across the product life.

The vertical entry keeps the footprint tight, and a minus 40 to 105 degree range supports operation through thermal cycling, so the part stays honest from the bench to the field. By removing the orientation question entirely, it lets an operator build at speed without trading away the security of a locked, low-resistance termination.

Application Scenarios

Where orientation-free insertion pays off is on high-volume lines and in products that get serviced by people who should not need a diagram. Modular consumer electronics, display and sensor sub-assemblies, and other goods built in quantity use this non-polarized vertical flip-lock connector because the cable can enter from either side, cutting assembly errors and the rework they cause on tight schedules. Its UL94V-0 LCP body tolerates reflow and warm operating conditions, so it suits dense gadgets and compact instruments that share an enclosure with heat sources and other active parts. With a 50V/1A rating and a minus 40 to 105 degree range, it reliably carries signal and light-power flex links in equipment that experiences handling and temperature variation, from portable devices to compact industrial controls mounted in warmer cabinets. The absence of a key is not a limitation here; it is the feature that keeps the build moving and the returns down, which matters more than a theoretical perfect orientation on a fast line.

Why Choose 1.0mm Pitch FPC Vertical Non-Polarized Flip-Lock Connector

Orientation-free assembly: the non-polarized design lets flex cable seat from either side to speed builds.

Secure hold: the flip-lock actuator clamps the cable for a firm, low-resistance connection.

Flame-retardant body: natural LCP rated UL94V-0 resists heat and flame during reflow and service.

Reliable contacts: CuSn terminals with nickel, tin, and gold plating maintain stable conductivity.

Compact and dependable: vertical entry with a 50V/1A rating across a minus 40 to 105 degree range.

FAQs

Q: How is this different from a polarized version?

A: It has no keying, so the flat flex cable can be inserted in either orientation, which speeds assembly; a polarized version forces a single correct direction.

Q: What holds the cable in place?

A: A flip-lock actuator clamps the flex cable firmly for a low-resistance, pull-resistant connection.

Q: What are the key electrical ratings?

A: It is rated at 50V and 1A, with 40 milliohm maximum contact resistance, 200V AC dielectric withstanding, and 800 megohm minimum insulation resistance.
