[6098-5275] 2.2Pitch 12P Male Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

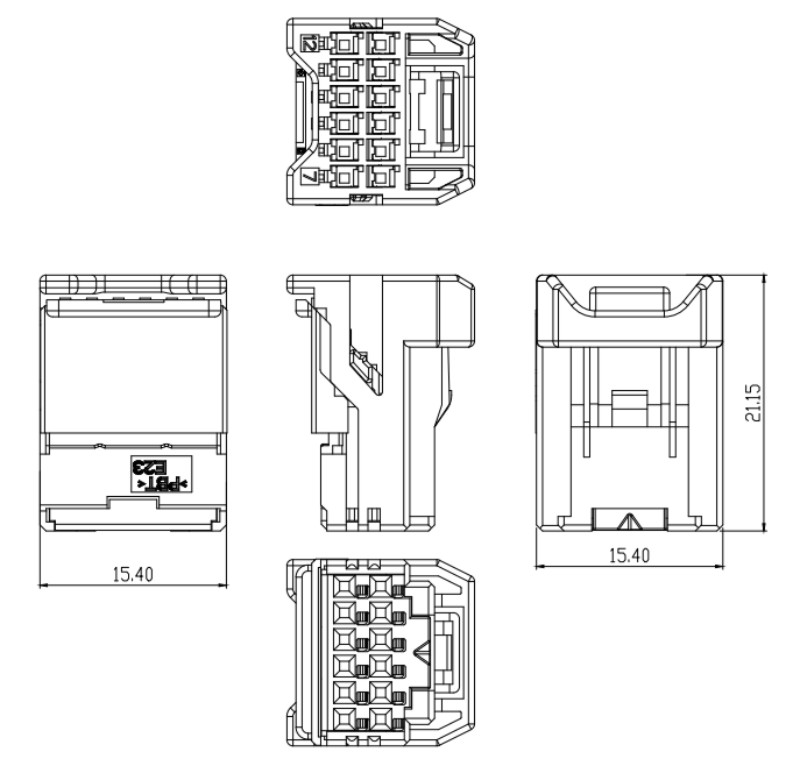

Drawing/Model

Product Features

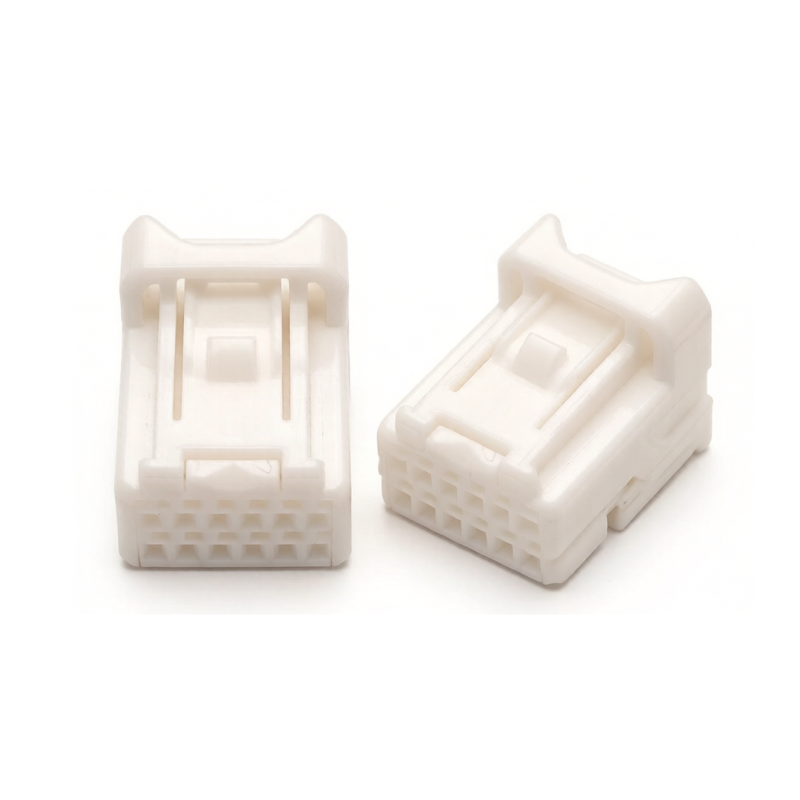

This 2.2 Pitch 12P Male Housing features a robust construction with integrated locking ears that produce a positive, vibration-resistant connection when engaged with the female mating connector, maintaining electrical continuity in applications subject to mechanical shock and sustained vibration from vehicle operation. The housing is injection-molded from glass-filled nylon, delivering enhanced mechanical strength and thermal stability compared to unfilled thermoplastic alternatives, maintaining precise cavity alignment throughout the operating temperature range encountered in automotive and industrial environments. Terminal cavities are polarized to prevent incorrect crimp contact insertion, reducing the risk of miswired harnesses that could cause equipment malfunction or safety hazards. Compact overall dimensions allow efficient use of panel space in multi-connector installations, while still providing adequate wire entry clearance for ergonomic assembly operations. Custom keying options are available to differentiate between connectors with identical cavity counts but distinct circuit assignments within the same equipment, eliminating cross-mating risk.

Application Scenarios

The 2.2 Pitch 12P Male Housing is employed in automotive steering wheel control modules and horn switch assemblies, connecting multi-function button inputs and cruise control signals to the vehicle's body electronics network through the clock spring assembly. Industrial relay panels utilize this housing for organizing control wiring between programmable logic controller outputs and field-mounted relay modules that switch high-current loads in motor control and heating applications. Commercial food processing equipment incorporates it for linking conveyor speed controllers, temperature sensors, and safety interlock circuits to the main system processor that coordinates automated cooking and packaging operations. In laboratory diagnostic instruments, the housing connects sample handling mechanisms and detection sensors through a serviceable connector interface that allows periodic calibration and maintenance without permanent wire disconnection. The male housing design provides a straightforward cable-side termination that mates securely with board-mount female headers, enabling clean wire routing within equipment enclosures while allowing convenient disconnection for service access when needed.

Why Choose [6098-5275] 2.2Pitch 12P Male Housing - Quality Wire Connector

• Quality-grade construction of this 2.2Pitch 12P Male Housing ensures accurate positioning and consistent contact across the full circuit array.

• Locking retention system of this Quality 12P Male Housing provides secure mating, withstanding repeated handling and vibration without degrading reliability over time.

• Durable housing material of this 2.2Pitch Male Housing offers excellent resistance to UV exposure, fuels, and temperature for reliable outdoor and underhood use.

• Compatible with standard pitch female housings and crimp terminals, this 12P Male Housing enables seamless integration into existing designs with minimal modification.

• Backed by dedicated inspection processes and professional support, this Quality 12P Male Housing ensures consistent performance across production batches.
