[1674643-1] 2.2Pitch 20P Female Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

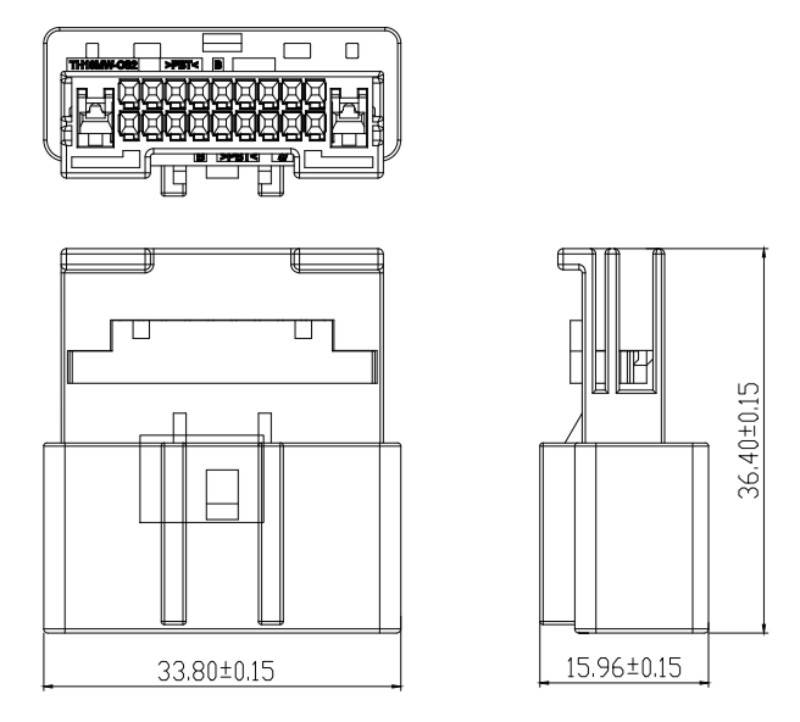

Drawing/Model

Product Features

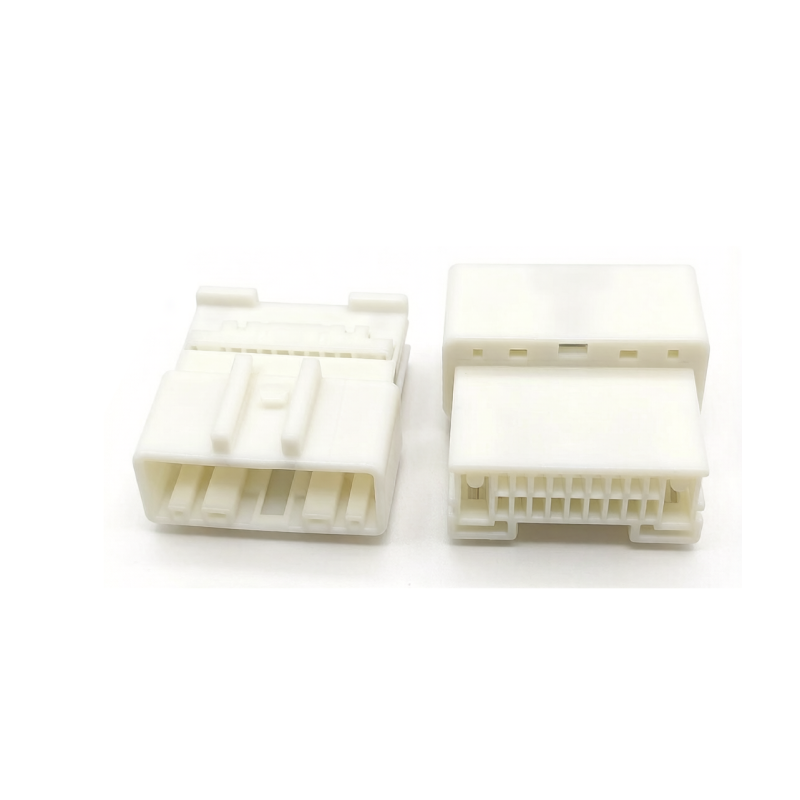

This 2.2 Pitch 20P Female Housing features a dual-row cavity layout with a locking ramp mechanism that retains crimped terminals securely in their designated positions, preventing contact displacement during handling and operation in vibration-prone environments. The housing body is molded from UL94 V-0 rated nylon, meeting flammability requirements for electronic equipment enclosures in automotive and industrial applications where fire safety is a regulatory and liability concern. Terminal cavities are keyed to accept only correctly oriented contacts, preventing assembly errors that could lead to electrical faults including short circuits between adjacent conductors. A compact footprint minimizes the space occupied on connector mounting panels, an important consideration in equipment designs where multiple connectors must be positioned within a limited area while maintaining adequate wire routing clearance. The natural finish facilitates visual inspection of terminal seating during quality control processes. An optional secondary lock insert provides an additional layer of terminal retention assurance for applications exposed to severe vibration conditions.

Application Scenarios

The 2.2 Pitch 20P Female Housing provides cable-side connectivity for automotive sunroof controllers and power seat adjustment modules, organizing motor drive outputs and position sensor inputs within a twenty-circuit connector assembly that consolidates multiple discrete wire runs into a single organized interface. Industrial vending machine manufacturers employ this housing for connecting payment systems, product dispensing mechanisms, and inventory sensors to the central control board through a serviceable connector that simplifies both initial assembly and field maintenance. Commercial laundry equipment uses it for organizing the wiring between cycle selector interfaces and motor controller units in washers and dryers that operate continuously in high-humidity environments. In laboratory instruments, the housing links analytical sensor arrays to data processing modules through a reliable separable connection that allows instrument calibration and component replacement without permanent wire modifications. The female cavity design accepts standard crimp terminals, enabling harness fabricators to produce cable assemblies using conventional tooling and established production processes. Compact dimensions allow multiple housings to be mounted in close proximity on connector panels.

Why Choose [1674643-1] 2.2Pitch 20P Female Housing

• 20-position receptacle of this 2.2Pitch 20P Female Housing supports flexible application in both wire-end harness and board-mounted configurations across platforms.

• Positive locking design of this 20P Female Housing maintains secure engagement under shock, suitable for sensor clusters and industrial multi-circuit wiring applications.

• Housing material selected for chemical and thermal resistance ensures long-term dimensional stability and reliable retention of this 2.2Pitch 20P Female Housing in service.

• Compatibility with standard pitch terminals from multiple suppliers, this 20P Female Housing enables design flexibility and supply chain risk mitigation in sourcing.

• Established product with broad field history, this 2.2Pitch 20P Female Housing has technical support for wiring harness integration and qualification needs.
