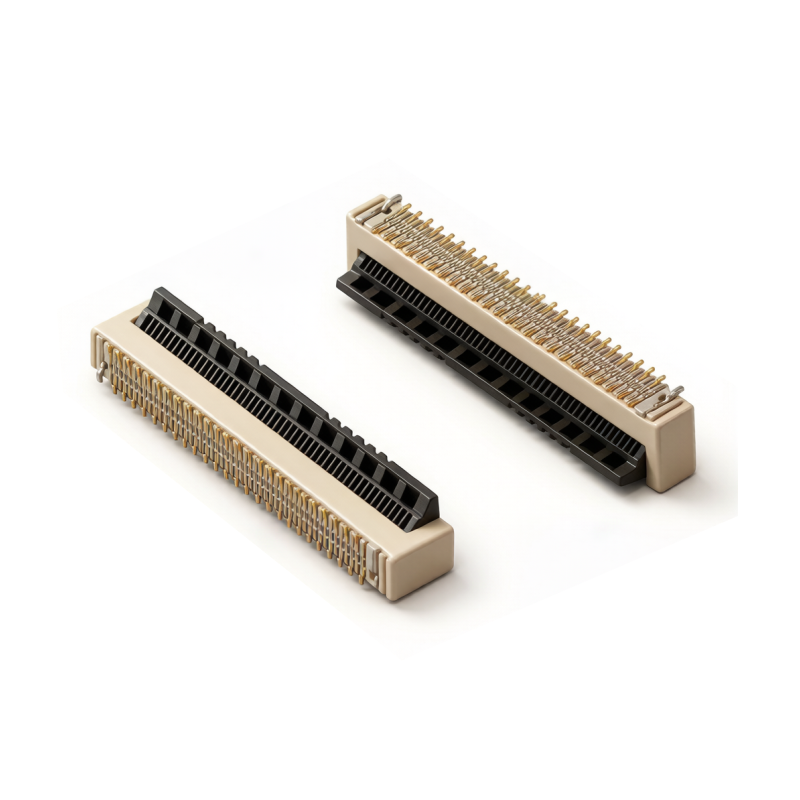

[TF38-**S-0.5SV(830)] 0.5 Pitch H5.2 Flip-Cover Vertical Connector

The 0.5 Pitch H5.2 Flip-Cover Vertical Connector is a fine-pitch FPC/FFC connector with a 0.5mm contact pitch and a taller 5.2mm body height for vertical board mounting. The flip-cover actuator facilitates easy flat cable insertion and reliable locking retention once actuated, ensuring stable signal contact throughout the connector's service life. The vertical mounting orientation accommodates board layouts that require upright cable routing. Designed for display panels, imaging modules, portable electronic devices, and handheld equipment, it delivers consistent signal performance in space-sensitive vertical assembly configurations.

Availability:



Inquire Add to Basket

Model:
28、TF38-**S-0.5SV(830)

FPC connector Flexible Flat Cable‌ FFC connector vertical connector Horizontal Connector terminal block‌ power terminal‌ Wafer Connector

Product Description

Specifications

Current Rating‌：0.5A	Insulation Resistance‌：500MΩ/min
Voltage Rating：50V	Withstand Voltage：200V AC/min
Contact Resistance‌：≤40mΩ	Operating Temperature Range‌：

Material

Plastic material‌：LCP UL94V-0

Terminal material：CuSn

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

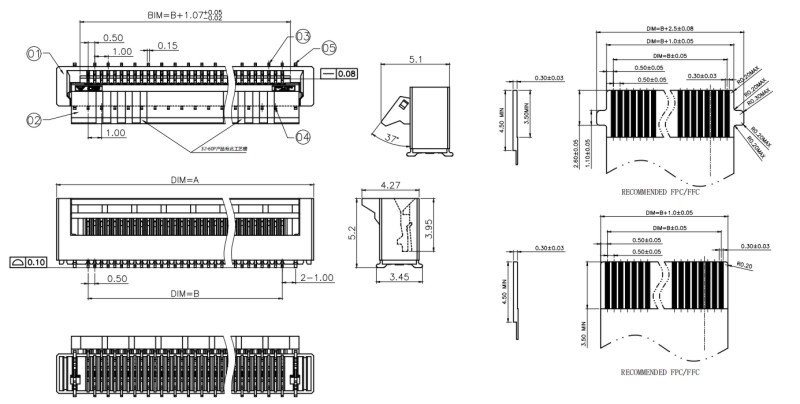

Drawing/Model

Product Features

This 0.5 Pitch H5.2 Flip-Cover Vertical Connector features a vertical flip-lock mechanism that secures the FPC cable without requiring additional tools or hardware, simplifying both automated production assembly and field service operations where technician access may be limited by adjacent components. The connector housing is manufactured from heat-resistant thermoplastic that maintains dimensional stability through lead-free reflow soldering processes, ensuring that contact alignment and mating geometry remain within specification after board-level assembly. Contacts are designed for high mating cycle durability, supporting applications where the FPC may be repeatedly connected and disconnected during development, testing, or maintenance activities without degradation of contact resistance. The actuator incorporates a positive stop position that provides consistent mating force across all contacts, ensuring reliable signal integrity across the entire contact array. Low insertion force characteristics simplify FPC loading, reducing the risk of cable damage during assembly. The vertical orientation positions the FPC parallel to the board edge, enabling efficient cable routing in slim product enclosures.

Application Scenarios

The 0.5 Pitch H5.2 Flip-Cover Vertical Connector is engineered for wearable devices and IoT sensor modules where flexible circuits must be connected in a vertical orientation to conserve PCB surface area and enable efficient board layout in miniaturized electronic assemblies. Its vertical mounting configuration allows the connector to be positioned at the edge of the circuit board, freeing interior space for components such as microcontrollers, wireless communication modules, and power management integrated circuits that require central board locations. Medical biosensor patches utilize this connector for linking thin-film electrode arrays to signal conditioning electronics within disposable or reusable monitoring devices that must be comfortable for extended patient wear. Smart home sensors and environmental monitors employ it for connecting antenna modules and display sub-assemblies in compact enclosures that mount on walls or ceilings. Industrial IoT devices that require edge-mounted connectivity for sealed cable routing also benefit from the vertical form factor that allows cables to exit perpendicular to the board surface.

Why Choose 0.5 Pitch H5.2 Flip-Cover Vertical Connector

1. Taller vertical body of this H5.2 Flip-Cover Vertical Connector accommodates flat cables routed perpendicular to the PCB plane for flexible cable management.

2. Flip-cover locking mechanism of this 0.5Pitch Vertical Connector secures insertion reliably, preventing cable pullout from vibration or incidental contact during use.

3. Fine 0.5mm pitch of this H5.2 Flip-Cover Connector supports dense routing for display panels, imaging sensors, and multi-channel data interfaces.

4. SMT footprint of this Flip-Cover Vertical Connector is compatible with reflow processes, supporting automated manufacturing and consistent joint reliability.

5. Vertically oriented design of this H5.2 Vertical Connector expands layout flexibility where horizontal connector clearance is restricted by enclosure geometry.
