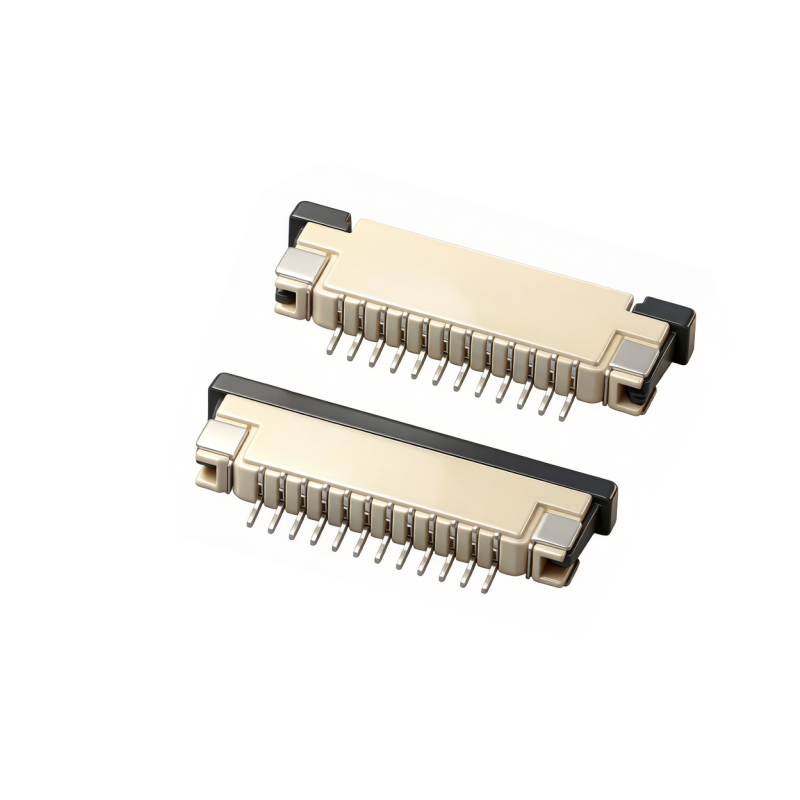

1.0Pitch SMT FPC Connector

The FPC 1.0mm Pitch 2.5H Drawer Half Shield Top Contact connector gives board designers a low-profile way to land a flexible circuit on a PCB without the swing-clearance a flip actuator needs. Its side-pull drawer slides out to accept the flex cable, then pushes back to clamp the conductors against the top contacts, so the cable seats flat and stays put through vibration and handling. A partial metal shield wraps the contact area to cut radiated noise on EMI-sensitive layouts while keeping the 2.5mm height and the cost below a fully shielded part. The 1.0mm pitch suits medium-density signal and power routing where board real estate is tight but the link has to survive repeated mating. Rated at 1 A and 50 V with an operating range of −40 °C to +105 °C, the receptacle fits display modules, handheld instruments, and industrial control boards that need a serviceable flex connection in a slim stack.

Availability:



Inquire Add to Basket

Model:
19、101026-****1-1

Wire to Board Wafer Connector Flexible Flat Cable‌ W2B Connectors B2B Connectors W2W Connectors RF Connector High Speed Data Connector

Product Description

Specifications

Current Rating‌：1A	Insulation Resistance‌：300MΩ
Voltage Rating：50V	Withstand Voltage：——
Contact Resistance‌：≤40mΩ	Operating Temperature Range‌：-40℃~+105℃

Material

Plastic material‌：——

Terminal material：——

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

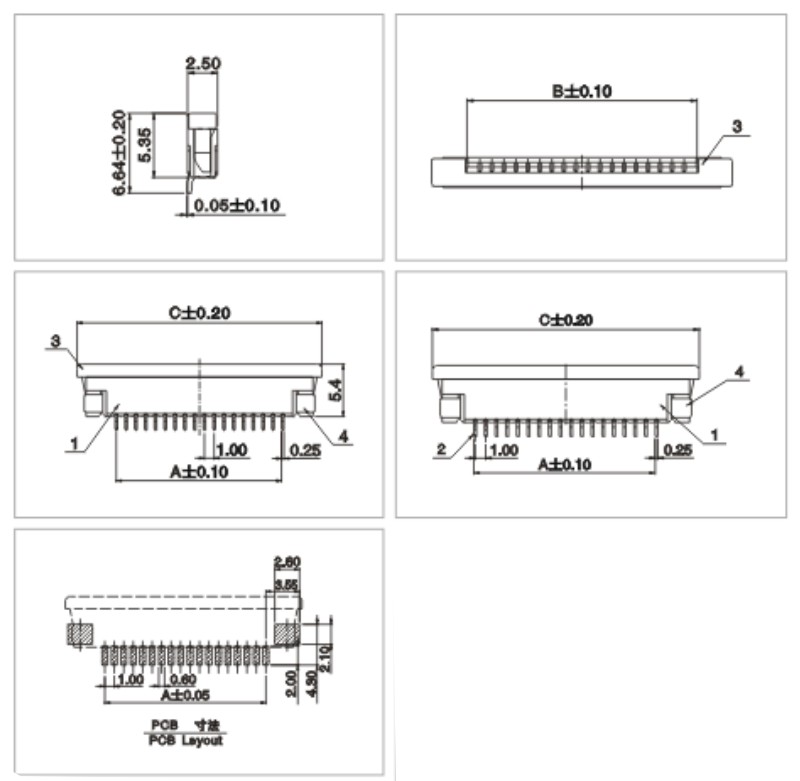

Drawing/Model

Product Features

**Drawer Actuation** — The FPC 1.0mm Pitch 2.5H Drawer Half Shield Top Contact uses a side drawer that pulls out to open the contact gap, lets the flex cable drop in flat, and pushes back to clamp the conductors onto the top contacts. This removes the rotational clearance a flip latch needs, so the part sits close to a neighbouring component or housing wall, and the cable releases without tools for field service.

**Half-Shield Cage** — A metal shield wraps the contact zone on the exposed side while leaving the rest of the body open, cutting radiated EMI on the flex run at a lower stack and cost than a full shield. Layouts that fail radiated limits near a wireless module or high-speed line regain margin without rising past the 2.5 mm height.

**Electrical Envelope** — The receptacle is specified at 1 A AC/DC and 50 V AC/DC, with contact resistance held to 40 Ω maximum at initial and insulation resistance of 300 kΩ minimum. Those figures fix the current and voltage ceiling for the flex link and guide trace and fuse sizing on the board.

Application Scenarios

**Display Modules** — In an industrial HMI or portable panel, the FPC 1.0mm Pitch 2.5H Drawer Half Shield Top Contact reaches a driver board inside a thin bezel; the 2.5 mm height and drawer actuation leave room beside the touch controller, and the half-shield keeps the flex quiet next to it.

**Handheld Instruments** — Battery or sensor modules in test and medical handhelds need a flex link that disconnects fast. The drawer release lets a technician swap the module without desoldering, and the top-contact layout keeps each re-mate aligned across service cycles.

**Industrial Control Boards** — PLC I/O and sensor boards in cabinets or on plant floors benefit from the specified −40 °C to +105 °C range and the 1 A / 50 V rating, so one connector serves links that see wide temperature swings without a separately qualified variant.

Why Choose FPC 1.0mm Pitch 2.5H Drawer Half Shield Top Contact Connector

**Locked Specification per Part Number** — The FPC 1.0mm Pitch 2.5H Drawer Half Shield Top Contact maps to part number 101026-****1-1 as a fixed configuration of pitch, height, contact style, and shielding, so every procurement lot and every rework matches the original design intent without re-confirmation.

**Stated Electrical Boundaries** — The 1 A / 50 V rating and the 40 Ω max / 300 kΩ min resistance figures are published for this part, giving designers a concrete ceiling for current, voltage, and leakage when they size the flex link.

**Wide Thermal Range** — An operating window of −40 °C to +105 °C is specified for the connector, supporting designs that move between cold storage, outdoor enclosures, and heated cabinets without a separate temperature-qualified variant.

FAQs

Q: How does the drawer-style actuator lock the FPC in place?

A: The side drawer slides out to open the contact gap, the flex cable lays in flat, and pushing the drawer back clamps the conductors onto the top contacts. The cable stays seated through vibration without a flip latch or extra tooling.

Q: Does the half-shield design suppress EMI on the flex circuit?

A: The half-shield covers the contact area on the exposed face and reduces radiated noise from the flex run, giving margin on layouts near wireless or high-speed lines. It is lighter and lower-cost than a full shield but does not enclose the cable completely.

Q: Can this connector be disconnected and reconnected for field service?

A: The drawer release supports field service: pulling it out frees the flex cable so a module or battery pack removes and refits without desoldering. The 2.5 mm height and top contacts keep each re-mate aligned and repeatable across service cycles.

Q: What operating conditions can the FPC 1.0mm Pitch 2.5H Drawer Half Shield Top Contact handle?

A: The connector is specified for −40 °C to +105 °C and carries 1 A at 50 V AC/DC. Those limits cover cold storage, outdoor enclosures, and heated cabinets, so a single part serves links that see wide temperature swings without a separately qualified variant.
