FPC 0.5mm Pitch 2.0H Drawer Bottom Contact Full Shield

FPC 0.5mm Pitch 2.0H Drawer Bottom Contact Full Shield meets that need as a fine-pitch flex connector built on a pull-out drawer actuator. The FPC inserts with its contact pads facing down, so the cable tucks under the connector and the stack stays low — a layout that suits flat consumer electronics, display links, and industrial control boards. Seating is a straight push-pull motion: the drawer slides out, the flex seats, and it slides back to lock, with no flip lever needing swing clearance above the board. The fully shielded housing suppresses electromagnetic noise for adjacent high-speed traces, while the 0.5 mm pitch packs many signals into a short board edge at a 2.0 mm height. It targets compact assemblies where both z-height and footprint are tight.

Availability:



Inquire Add to Basket

Model:
18、101005-****1-1

FPC connector Wire-to-Board Connector Board-to-Board Connectors Wire-to-Wire Connectors FAKRA connector HSD Connector Horizontal Connector vertical connector

Product Description

Specifications

Current Rating‌：0.5A	Insulation Resistance‌：500MΩ
Voltage Rating：50V	‌Withstand Voltage：200V AC/min
Contact Resistance‌：≤40mΩ	Operating Temperature Range‌：-40℃~+105℃

Material

Plastic material‌：——

Contact Material：——

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

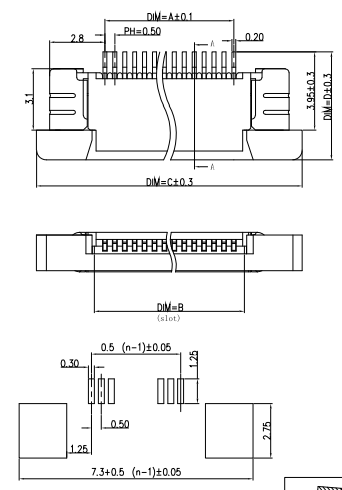

Drawing/Model

FPC 0.5mm Pitch 2.0H Drawer Bottom Contact Full Shield

Product Features

FPC 0.5mm Pitch 2.0H Drawer Bottom Contact Full Shield — key attributes

Drawer actuator — The pull-out drawer lets the FPC seat with a straight push-pull motion. Because no lever rotates, the board needs no clearance above the connector for an actuator to swing, which helps in low-z-height stacks.

Bottom-contact routing — The flex pads meet the contacts from below, so the cable lies under the connector instead of rising over it. This keeps the assembly flat and suits boards where the FPC must run close to the PCB surface.

Full shielding — The metal shield wraps the housing to contain EMI and cut crosstalk with neighboring high-speed lines, useful next to RF or fast digital traces.

Application Scenarios

Where the FPC 0.5mm Pitch 2.0H Drawer Bottom Contact Full Shield fits:

Stacked consumer modules — In a thin wearable or handheld, the connector links a main board to a daughter flex; the bottom-contact drawer keeps the link flat while the full shield protects a nearby wireless antenna feed.

Display and touch links — Flat-panel and touch modules route their flex under the connector, holding z-height down so the bezel stays slim.

Industrial control boards — Compact controllers use the 0.5 mm pitch to fit many signals on a short edge, with shielding against noisy plant environments.

Why Choose FPC 0.5mm Pitch 2.0H Drawer Bottom Contact Full Shield Connector

Shenzhen Jinkeji Technology Co., Ltd. has manufactured connectors and wire harnesses since 2000, covering the full value chain from tooling to finished parts.
Production is run under ISO 9001 and IATF 16949, supporting both consumer and automotive-grade programs on the same lines.
In-house tooling, stamping, and molding let the same facility take a flex connector from drawing to shipment, which shortens lead time on custom pitches.

FAQs

Q: Does bottom contact mean the FPC pads face down?

A: In the FPC 0.5mm Pitch 2.0H Drawer Bottom Contact Full Shield, the flex pads meet the contacts from below, so the cable routes under the connector. This keeps the stack low and suits layouts where the flex must lie close to the PCB.

Q: What holds the FPC in place after the drawer closes?

A: The drawer pulls out for insertion, the flex seats, then it pushes back to lock. No flip lever is involved, so the board needs no clearance above the connector for a lever to swing during automated seating.

Q: Why is the housing fully shielded?

A: The metal shield wraps the connector to contain electromagnetic noise and limit crosstalk with adjacent high-speed or RF traces, which matters when the FPC 0.5mm Pitch 2.0H Drawer Bottom Contact Full Shield runs near a wireless feed or fast digital lines.
