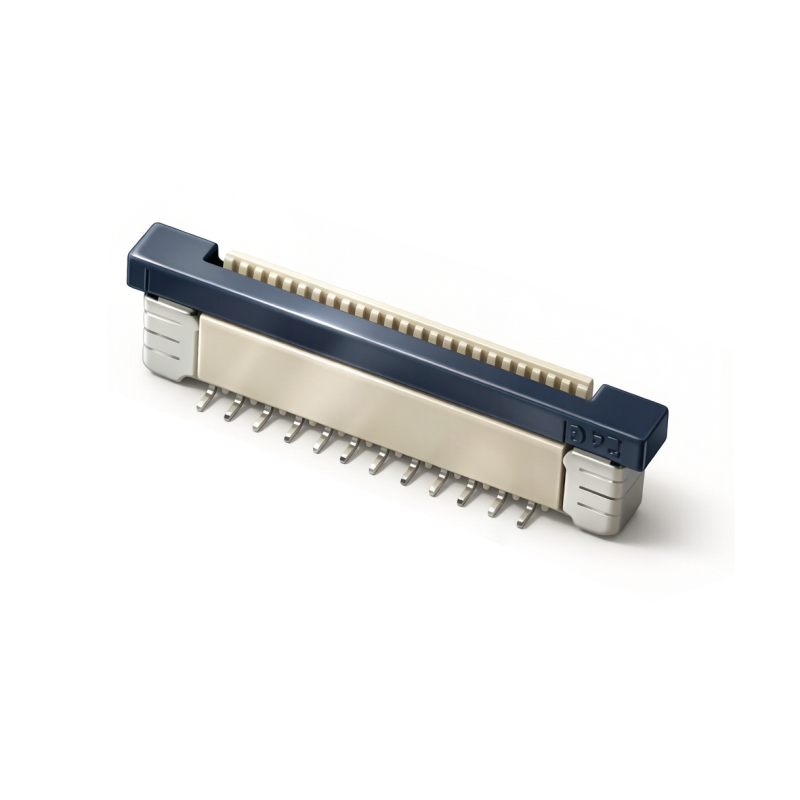

0.5mm Pitch FPC ZIF Slide-Lock Vertical SMT Type

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

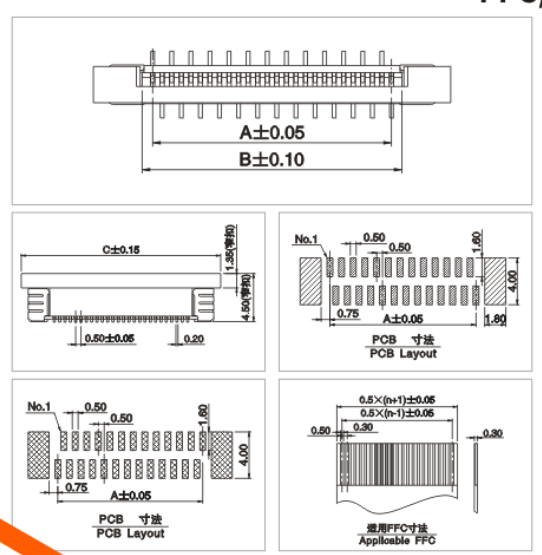

Drawing/Model

Product Features

This 0.5mm Pitch FPC ZIF Slide-Lock Vertical SMT connector is designed for applications where top-entry cable access and a secure locking mechanism are key layout priorities. The ZIF (Zero Insertion Force) slide-lock actuator slides open to allow cable insertion with virtually no friction, then slides closed to clamp the FPC firmly in position — the actuator position gives a clear visual and tactile indication of whether the cable is engaged or released, which can help reduce assembly errors on production lines. The vertical SMT mounting orientation stands the connector perpendicular to the PCB surface, directing the mating interface upward so that the FPC cable enters from above. This configuration often simplifies harness routing in enclosures where cables drop down from display panels or upper-level sub-assemblies, and it can leave adjacent board area available for component placement or trace routing. Gold-plated phosphor bronze contacts are typically rated up to 0.5A per position at 50V AC/DC, with contact resistance commonly at 20mΩ or below. The LCP housing, rated UL94 V-0, can maintain dimensional stability through lead-free reflow soldering profiles. A molded polarization feature helps prevent reverse FPC insertion, and the wide variety of available position counts can accommodate different signal density requirements.

Application Scenarios

Display modules in laptops, monitors, and industrial HMI panels commonly use this **FPC connector** to carry video signals, backlight power, and touch controller data from the display panel down to the main PCB. The vertical SMT orientation allows the FPC cable to approach from above, which can simplify cable routing inside enclosure designs where the display sits above or in front of the controller board. The slide-lock mechanism provides a secure hold that resists loosening from incidental cable movement or enclosure vibration, while the ZIF feature helps protect delicate FPC conductors during assembly and field servicing.

Portable and handheld electronics — including medical devices, handheld scanners, and measurement instruments — can benefit from the compact 0.5mm pitch and the vertical top-entry design, which often fits well within device architectures where side-entry routing space is limited. The slide actuator's visual engagement status helps technicians confirm proper cable seating during production builds and maintenance, reducing the risk of intermittent connections that may not surface until later in the product's service life. Operating temperatures can range from -40°C up to +85°C, covering the typical conditions encountered in both consumer and light-industrial portable equipment.

Industrial control boards and automation equipment can incorporate this **ZIF connector** for connecting operator panel interfaces, sensor signal paths, and communication modules that require periodic disconnection for maintenance access. The vertical footprint allows multiple connectors to be placed along the upper edge of a control card, creating a clean cable management path that may simplify harness assembly inside cabinet enclosures. **Shenzhen Jinkeji Electronics Co., Ltd.** offers this connector across a range of position counts, backed by ISO 9001 and IATF 16949 certified quality management and engineering support from prototyping through volume production.

Why Choose 0.5mm Pitch FPC ZIF Slide-Lock Vertical SMT Type

• Proven Manufacturing Experience

  With over 20 years of connector manufacturing expertise, Shenzhen Jinkeji Electronics Co., Ltd. understands the evolving needs of electronics manufacturers worldwide.

• Continuous Innovation

  Our R&D team continuously develops innovative connector solutions. The slide-lock series reflects our commitment to solving real-world assembly challenges.

• Consistent Quality You Can Trust

  Strict quality management system ensures every batch meets the same high standards. Full traceability for all production lots gives you complete confidence.

• Flexible Order Support

  We support both prototype and volume production orders. Fast turnaround for standard products, reasonable lead time for customized solutions.
