1.0mm Pitch FPC ZIF Horizontal SMT Dual-Contact Connector

Built to meet stringent quality standards, Unlike standard FPC connectors, the JKJ 1.0mm Pitch FPC ZIF Dual-Contact Horizontal SMT Type features a locking mechanism that ensures consistent contact under vibration. 1.0mm horizontal SMT design, rated at 0.5A per contact with a 50V voltage rating and operating temperature range of -25°C to +85°C. The robust construction and precision contacts ensure consistent signal integrity across the full operating range, making it a dependable choice for diverse electronic system designs. Discuss your application requirements with our engineering team.

Availability:



Inquire Add to Basket

Model:
8、FPC1.0mm双面接卧式贴片

FPC connector Wafer connector‌ Wire-to-Board Connector Board-to-Board Connectors Wire-to-Wire Connector FAKRA Connectors HSD Connectors

Product Description

Specifications

Current Rating‌：0.5A	Insulation Resistance‌：500MΩ/min
Voltage Rating：50V	‌Withstand Voltage：——
Contact Resistance‌：≤30mΩ	Operating Temperature Range‌：-25℃~+85℃

Material

Plastic maerial‌：Nylon 、PA669T UL94V-0

Terminal material：Phosphor Bronze

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact

customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

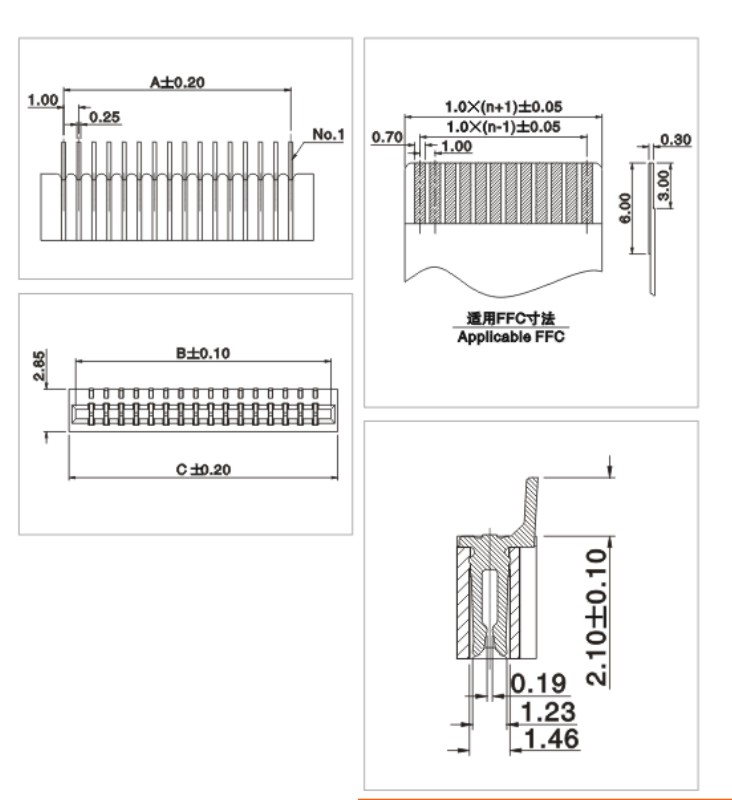

Drawing/Model

1.0mm Pitch FPC ZIF Horizontal SMT Dual-Contact Connector & from China Manufacturers

Product Features

1.0mm Pitch FPC ZIF Horizontal SMT Dual-Contact Connector — The zero-insertion-force actuator secures the FPC without requiring insertion force, preventing gold finger wear and ensuring reliable contact after repeated mating cycles. Benefit: extends connector service life and reduces field failures in portable devices.

Horizontal SMT Configuration — The connector stands flat against the PCB. This orientation is optimized for automated pick-and-place assembly and reflow soldering. Benefit: streamlines production and reduces assembly costs.

Stable Electrical Performance — Rated at 0.5A per contact with a 50V voltage rating, the connector maintains signal integrity within an operating range of -25°C to +85°C. The high-temperature LCP insulator withstands peak reflow temperatures up to 260°C. Benefit: delivers reliable performance across diverse operating environments.

Our technical support team can provide additional specification details upon request. Contact our team for samples and technical documentation.
