[501648] H2.0 Double Row Female Crimp Terminal

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

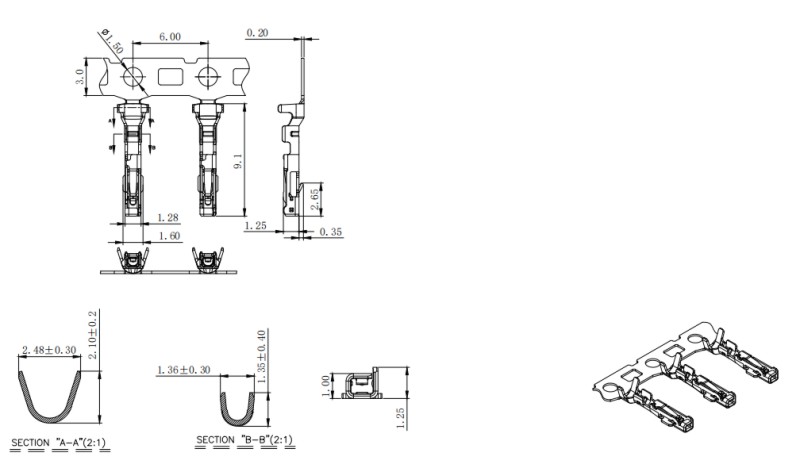

Drawing/Model

Product Features

This H2.0 Double Row Female Crimp Terminal features a box-contact design that establishes four-point electrical contact with the mating pin, ensuring low and stable connection resistance throughout the product lifecycle even after extended exposure to vibration and thermal cycling. Manufactured from phosphor bronze with selective gold plating in the contact zone, the terminal resists corrosion and maintains consistent performance in humid and mildly corrosive atmospheres where unprotected copper contacts would degrade over time. The terminal's conductor crimp section features serrated inner surfaces that grip the stranded conductor tightly, creating a gas-tight joint that prevents oxidation at the crimp interface and maintains low connection resistance indefinitely. An insulation crimp barrel simultaneously secures the wire insulation, providing strain relief that prevents conductor fatigue at the transition point where the cable exits the terminal. The funnel-shaped entry simplifies wire insertion during crimping, reducing the likelihood of missed strands that could cause short circuits or unreliable connections. A wide wire accommodation range allows a single terminal type to service multiple harness specifications, streamlining procurement and inventory management for high-volume manufacturing operations.

Application Scenarios

The H2.0 Double Row Female Crimp Terminal works in conjunction with PH2.0 series housings to establish wire-to-board connections across a broad spectrum of consumer and industrial electronics where reliable and cost-effective termination methods are required. It is found in smart home devices such as intelligent thermostats, security cameras, and voice-activated speakers, where compact and reliable power and signal wiring is essential for consumer product reliability expectations. Automotive interior lighting systems use these terminals for connecting LED driver modules to dome and map light assemblies through serviceable crimp connections. In portable medical instrumentation, the terminal provides a lightweight yet secure connection method for sensor leads and power input cables that must maintain electrical continuity despite handling and movement. Industrial sensor hubs and data acquisition modules similarly employ these crimp terminals for field wiring connections that may require periodic disconnection for calibration, testing, or component replacement. The crimp termination method eliminates the need for soldering, enabling faster and more consistent harness assembly in both manual and semi-automated production environments while producing connections that are inherently resistant to vibration-induced loosening.

Why Choose [501648] H2.0 Double Row Female Crimp Terminal

• Precision-stamped female contact geometry of this H2.0 Crimp Terminal ensures consistent insertion force and reliable electrical contact with mating pins across batches.

• Crimp construction of this Double Row Female Terminal enables secure mechanical wire attachment with low resistance, suitable for both signal and low-power circuits.

• Compatible with the H2.0 double-row housing system, this Female Crimp Terminal ensures accurate terminal-to-housing fit and preventing terminal pullout during assembly.

• Corrosion-resistant surface treatment of this H2.0 Crimp Terminal maintains conductivity in humid environments, extending service life in consumer and industrial applications.

• Designed for use with standard tooling, this Double Row Female Terminal facilitates efficient high-volume harness assembly and consistent quality across production operations.
