[501876] 2.0Pitch Right Angle Pin Header

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

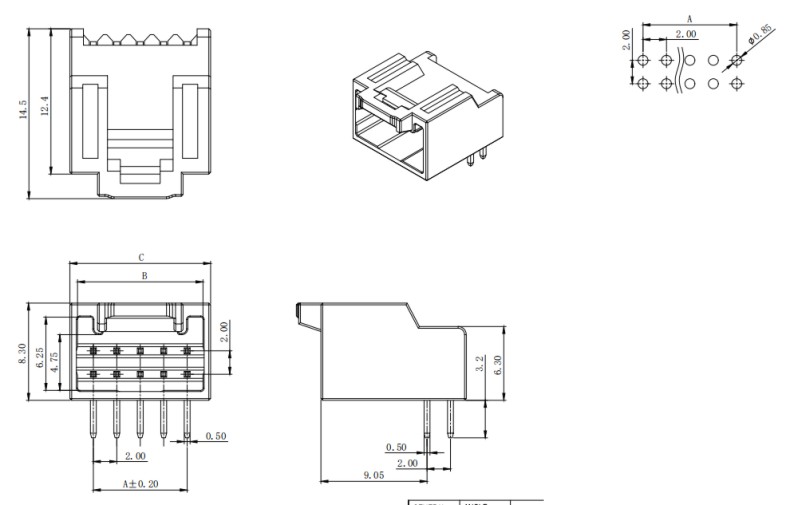

Drawing/Model

Product Features

This 2.0 Pitch Right Angle Pin Header features a precise ninety-degree bend that enables efficient PCB layout in enclosures with restricted vertical clearance, allowing the mating cable or socket to exit parallel to the board surface. The pins are manufactured from brass alloy with tin plating, ensuring excellent solderability and consistent contact performance over the product's lifetime while resisting corrosion in humid operating environments. The insulator body is molded from high-temperature nylon capable of withstanding lead-free reflow and wave soldering processes without warping, maintaining pin-to-pin spacing accuracy critical for reliable mating. Square-pin cross-section geometry provides reliable contact with female socket terminals, maintaining stable connection resistance under vibration and thermal cycling conditions. The right-angle design also serves as a natural strain relief point for attached cables, reducing mechanical stress on solder joints that could lead to fatigue cracking over time. Breakaway features molded into the header allow pin count customization without special tooling, supporting prototyping and small-batch production needs where standard pin counts may not match circuit requirements.

Application Scenarios

The 2.0 Pitch Right Angle Pin Header finds widespread use in consumer electronics, including set-top boxes, gaming consoles, and home automation hubs, where it connects daughter boards and peripheral modules to main circuit boards at a perpendicular angle. Its right-angle orientation enables parallel board stacking configurations, preserving vertical space within slim product enclosures and allowing more components to fit within a given device volume. In LED lighting driver assemblies, this pin header provides a reliable power input interface that simplifies manufacturing and field replacement without disturbing adjacent components. Automotive infotainment sub-assemblies also utilize this component for connecting display panels and control interfaces at a perpendicular angle to the main processing board. Industrial equipment designers select it for sensor module connections where horizontal cable entry is preferred over vertical routing. The pin count and row configuration can be tailored to specific application requirements, offering flexibility across diverse product platforms. Its through-hole mounting provides robust mechanical attachment that withstands vibration and thermal cycling better than surface-mount alternatives in demanding operational environments.

Why Choose [501876] 2.0Pitch Right Angle Pin Header

• Right-angle configuration of this 2.0Pitch Pin Header reduces overall assembly height, enabling PCB integration in slim enclosures where vertical connectors cannot fit.

• Contact pitch alignment of this Right Angle Pin Header with the PH2.0 standard ensures broad compatibility with available mating housings and crimp terminals.

• Through-hole soldering of this 2.0Pitch Pin Header provides robust PCB attachment, withstanding cable tension and vibration without solder joint fatigue or movement.

• Suitable for automated PCB assembly processes, this Right Angle Pin Header supports high-volume production efficiency in consumer electronics and controller manufacturing.

• Versatile right-angle interface design of this 2.0Pitch Pin Header is used across embedded systems, robotics, and automation boards with extensive integration experience.
