[2403412-1] 2.2Pitch 24P Wire End Female Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

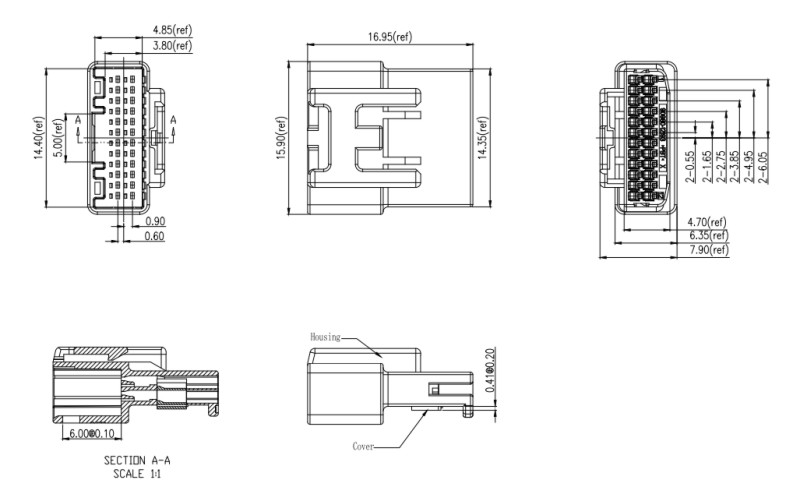

Drawing/Model

Product Features

This 2.2 Pitch 24P Wire End Female Housing features a compact dual-row layout with a central locking ramp that ensures each terminal is positively retained within its designated cavity, preventing contact displacement during handling, installation, and operation under vibration conditions. The housing body is molded from glass-reinforced nylon, combining mechanical strength with dimensional stability across a wide operating temperature range encountered in automotive and industrial environments. A positive lock mechanism provides secure engagement with the mating male header, generating feedback that confirms complete insertion and eliminates the need for visual verification in confined installation spaces. Keying features on the mating surface prevent cross-connection with housings of similar appearance but different circuit assignments, an essential safeguard in multi-connector panel installations where multiple connector types may be located adjacent to one another. The low-profile design minimizes the connector's protrusion into adjacent wire routing channels, facilitating neat harness assembly within confined enclosures. Terminal cavity geometry includes retention barbs that grip the crimp contact securely.

Application Scenarios

The 2.2 Pitch 24P Wire End Female Housing is utilized in automotive steering column modules and wiper control systems, organizing the multiple switch inputs and motor control outputs required for modern multi-function steering wheels that incorporate audio controls, cruise control, and voice activation buttons alongside variable-speed wiper assemblies with rain-sensing capabilities. Industrial packaging and material handling equipment incorporate this housing for connecting sensor arrays that monitor product position, fill levels, and conveyor speed across automated production lines. Medical laboratory automation systems use it for organizing the wiring between sample handling mechanisms and central control processors in diagnostic instruments that must operate continuously with high reliability. In commercial building security systems, the housing links door access controllers to card readers, electromagnetic locks, and alarm sensors distributed across multiple entry points and security zones. The female cavity design provides secure retention of crimped terminals while allowing field-serviceable disconnection when maintenance or circuit modifications are necessary without cutting or splicing wires.

Why Choose [2403412-1] 2.2Pitch 24P Wire End Female Housing

• 24-position circuit count of this 2.2Pitch 24P Female Housing offers a versatile mid-range option balancing harness density and manageable size for various applications.

• Secure locking mechanism of this Wire End 24P Female Housing maintains reliable engagement under vibration and variation, preventing interruption in critical system wiring.

• Consistent terminal retention geometry of this 24P Female Housing ensures each contact remains seated, supporting stable resistance throughout operational life.

• Standard pitch compatibility of this 2.2Pitch 24P Female Housing with available terminals and tooling simplifies procurement and supports multi-platform design reuse strategies.

• Extensive deployment history in automotive body electronics provides confidence in long-term reliability of this 24P Wire End Female Housing, backed by engineering services.
