How to Choose the Right FPC Connector for Your Circuit Design

Understand the Core Parameters Before Comparing Products

The first step is knowing which specifications actually matter for your application. There are four parameters that determine whether an FPC connector will work in your design.

Pitch size is the distance between adjacent contacts, measured in millimeters. Common pitches range from 0.3mm to 2.54mm. Smaller pitches allow higher pin counts in compact spaces but demand tighter manufacturing tolerances. For ultra-compact devices like wearables or hearing aids, 0.3mm to 0.5mm pitches are typical. For industrial or automotive boards where robustness matters more than miniaturization, 1.0mm to 2.54mm pitches offer better mechanical stability.

Contact type determines how the connector interfaces with the flexible cable. Top-contact connectors mate when the cable sits on top of the contacts. Bottom-contact connectors connect from below. Dual-contact (top-and-bottom) designs engage both sides of the cable, providing more reliable connections in vibration-prone environments. Your FPC cable's contact layout must match the connector's contact type — this is not interchangeable.

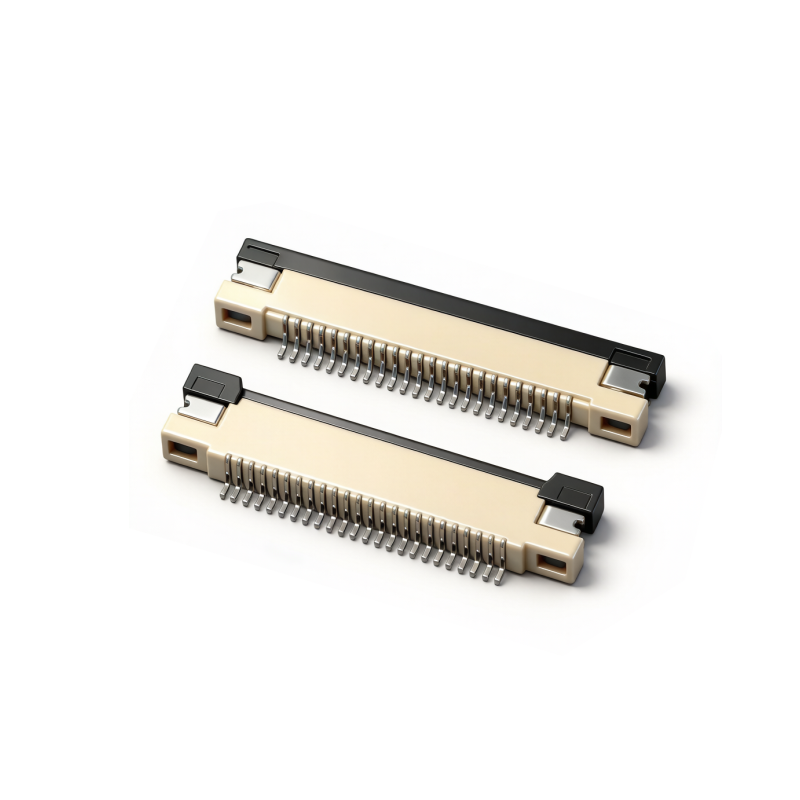

Actuator mechanism is how you lock and unlock the cable. The two most common types are ZIF (Zero Insertion Force) and LIF (Low Insertion Force). ZIF connectors use a flip-lock or slide-lock actuator that opens a gate for the cable to slide in with virtually no force, then closes to secure the contact. These are ideal for tight spaces where pushing force could damage surrounding components. LIF connectors require a small amount of insertion force but have fewer moving parts, making them more durable in high-mating-cycle applications.

Number of positions (pins) must match your circuit's conductor count. FPC connectors commonly come in 4-pin to 50-pin configurations, though higher counts exist. Always confirm the pin count matches your FPC cable exactly — even a one-pin mismatch means the cable will not seat properly.

Match the Connector to Your Application Environment

Once you have the electrical parameters locked down, the next step is evaluating the physical and environmental conditions the connector will face.

Space constraints often drive the initial selection. If your design demands a low-profile solution — say, a device under 2mm in total height — look for connectors with a mated height below 1.2mm. Flip-lock ZIF connectors tend to be taller than slide-type connectors, so check the datasheet dimensions early in your layout process.

Mating cycle requirements affect your actuator choice. If the connection needs to be disconnected and reconnected frequently (for example, in a modular device that requires regular servicing), choose an actuator rated for high mating cycles — typically 20 cycles or more. ZIF connectors with flip-lock actuators generally handle more mating cycles than slide-type alternatives because the mechanism distributes force more evenly.

Vibration and mechanical stress are critical in automotive and industrial applications. In these environments, dual-contact connectors provide a more stable connection than single-contact designs, and connectors with positive locking mechanisms (rather than friction-only retention) resist accidental disconnection. If the cable will flex repeatedly during operation, verify that the connector supports the cable's minimum bend radius without damaging the contacts.

Temperature and environmental exposure narrow your options further. Standard consumer-grade connectors typically operate between -25°C and +85°C. Automotive and industrial grades extend to -40°C to +105°C or higher. If your device will be exposed to moisture, dust, or chemicals, look for connectors with appropriate ingress protection ratings or consider adding a conformal coating over the mated connection.

Verify Compatibility Before Finalizing Your Design

The last step is a compatibility check that catches mismatches before they reach production. Start by confirming that the FPC cable thickness matches the connector's specified range — most connectors accept cables between 0.2mm and 0.3mm thick, but this varies by model. A cable that is too thin will not make reliable contact; one that is too thick will not insert at all.

Next, validate the contact finish. Connector contacts are typically plated with tin or gold. Gold-plated contacts offer lower contact resistance and better corrosion resistance, making them suitable for signal-critical or high-reliability applications. Tin-plated contacts are more cost-effective and sufficient for many consumer applications. Ensure the cable's contact finish is compatible with the connector's — mixing finishes can accelerate galvanic corrosion over time.

Finally, review the mounting orientation. FPC connectors come in horizontal (side-entry) and vertical (top-entry) orientations. Your PCB layout and enclosure design determine which orientation works. A horizontal connector lets the cable exit parallel to the board, saving vertical space. A vertical connector routes the cable perpendicular to the board, which may be necessary in stacked-board architectures.

Choosing the right FPC connector comes down to matching pitch, contact type, actuator mechanism, and environmental ratings to your specific design requirements. Take the time to verify cable thickness, contact finish, and mounting orientation before committing to a part — it is far easier to swap a connector on the schematic than to respin a PCB.
