6、FPC1.0mm带锁立贴一字形
| Current Rating：0.5A | Insulation Resistance：500MΩ/min |
| Voltage Rating：50V | Withstand Voltage：—— |
| Contact Resistance：≤30mΩ | Operating Temperature Range：-25℃~+85℃ |
| Plastic maerial：Nylon 、PA669T UL94V-0 | Terminal material：Phosphor Bronze |
tape and reel、 tube packaging、Tape and Reel Package
Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

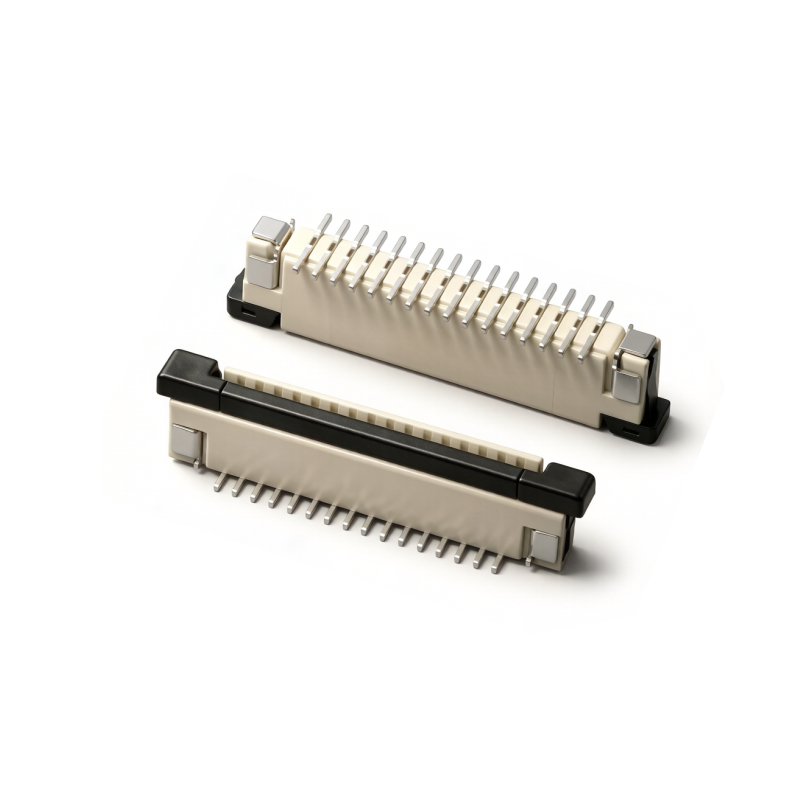

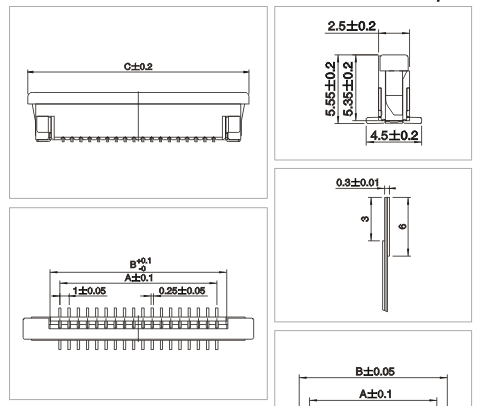

1.0mm Pitch FPC ZIF Locking Vertical SMT ZIF Locking Mechanism — The zero-insertion-force actuator secures the FPC without requiring insertion force, preventing gold finger wear and ensuring reliable contact after repeated mating cycles. Benefit: extends connector service life and reduces field failures in portable devices.
Vertical SMT Configuration — The connector stands the PCB, freeing board edge space for other components. This orientation is optimized for automated pick-and-place assembly and reflow soldering. Benefit: streamlines production and reduces assembly costs.
Stable Electrical Performance — Rated at 0.5A per contact with a 50V voltage rating, the connector maintains signal integrity within an operating range of -25°C to +85°C. The high-temperature LCP insulator withstands peak reflow temperatures up to 260°C. Benefit: delivers reliable performance across diverse operating environments.
Contact our engineering team for application-specific customization options. Contact our team for samples and technical documentation.
In Consumer Electronics applications, compact PCB designs increasingly require reliable FPC interconnects that occupy minimal board space without compromising signal quality. Standard connectors often force layout compromises, limiting component density and increasing board size. The 1.0mm Pitch FPC ZIF Locking Vertical SMT addresses this with its locking ZIF mechanism and space-efficient footprint, ensuring secure FPC retention while freeing critical board area for other components.
Within Industrial Automation equipment, designers face the challenge of maintaining reliable connections in environments subject to mechanical vibration and thermal cycling. Loose or intermittent FPC connections can cause system faults that are difficult to diagnose in the field. The locking ZIF design provides consistent contact pressure under dynamic conditions, with an operating range of -25°C to +85°C that covers typical application requirements.
For customized requirements, JKJ engineering team offers application-specific modifications including custom pin counts, plating options, and packaging configurations tailored to your production process. Our engineers are available to review your specific needs and recommend the optimal configuration for reliable performance.
20+ Years in Connector Manufacturing — Founded in 2000, JKJ has supplied interconnect solutions to over 500 clients worldwide, bringing extensive application experience across diverse application environments.
In-House Design Capability — From concept to production, our engineers provide full design support including DFM analysis and prototyping for custom connector requirements across diverse application environments.
Full Compliance Certification — All production lines operate under IATF 16949 and ISO 9001 certified quality systems, ensuring traceability and consistent output quality across diverse application environments.
RoHS Compliant Materials — All connector components fully comply with RoHS directives, supporting global regulatory requirements for electronic equipment manufacturers across international markets across diverse application environments.
Inquire about custom configurations for your production needs.
A: Yes, JKJ offers custom pin-count configurations. Contact our engineering team with your specific requirements for a feasibility and lead time assessment.
A: JKJ connectors are manufactured under IATF 16949 and ISO 9001 certified systems and fully comply with RoHS environmental directives for global markets.

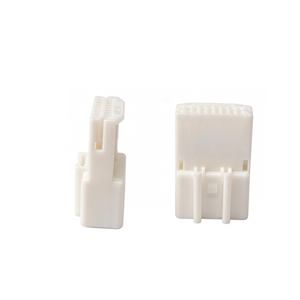

![[1565380-1] 2.2Pitch 16P Wire End Female Housing](http://iororwxhimpllk5p-static.micyjz.com/cloud/lqBpkKlmliSRolkpiipkkq/46-640-640.png)
