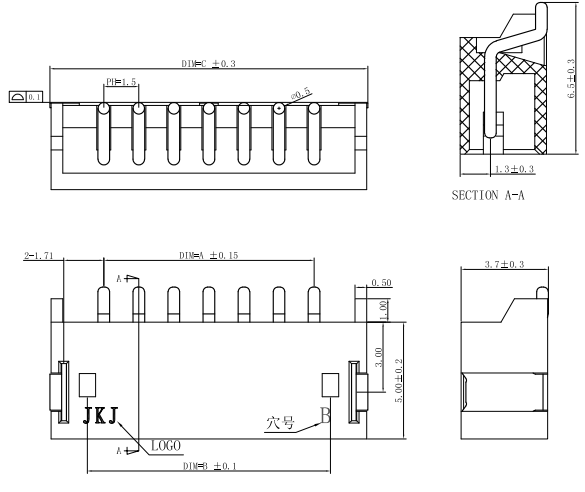

103101-***211-1
| Current Rating：1A | Insulation Resistance：1000MΩ/min |
| Voltage Rating：100V | Withstand Voltage：500 V AC / 1 minute |
| Contact Resistance：≤20mΩ | Operating Temperature Range：-40℃~+105℃ |
| Plastic maerial：LCP Natural UL94V-0 | Terminal material：BRASS |
tape and reel、 tube packaging、Tape and Reel Package
Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact
customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.
Housing — Natural-color LCP rated UL94 V-0. The material keeps its shape through reflow and limits flame spread, supporting automated SMT assembly.
Contacts — Brass terminals with a Tin finish of at least 100 micro-inches over a Nickel underplate of at least 50 micro-inches, giving a solderable, oxidation-resistant surface.
Retention — A CuSn welding piece anchors the socket to the board and holds pin alignment during placement and reflow.
Electrical — Rated 1A per contact at 100V AC/DC, with contact resistance at or below 20 milliohms, dielectric withstand of 500V AC for one minute, and insulation resistance of 1000 megohms minimum.
Environmental — Operates from -40°C to +105°C, covering consumer, industrial, and light automotive board layouts.

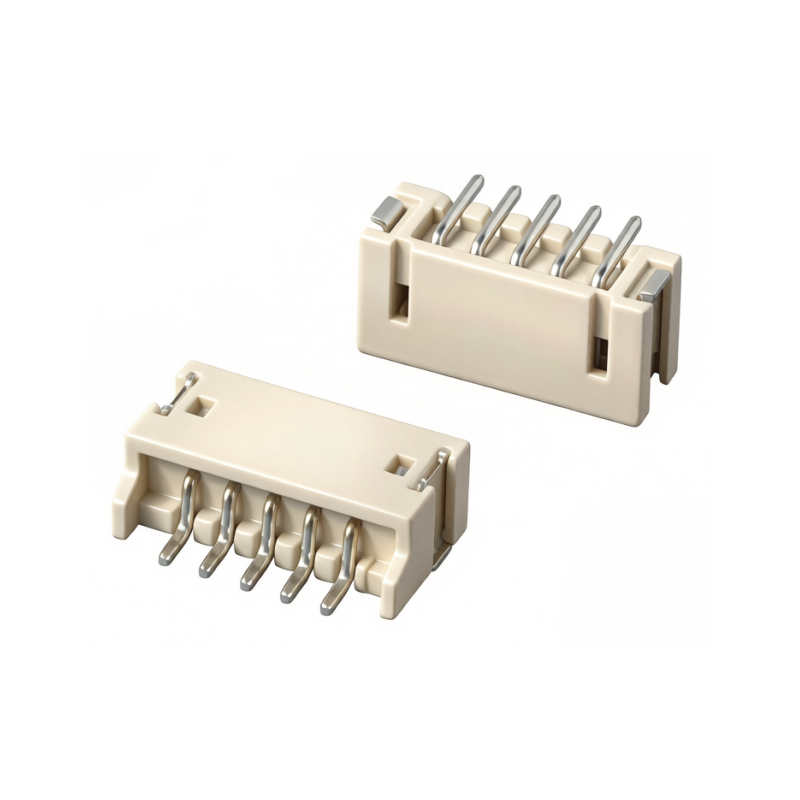

Termination — Horizontal surface-mount terminals sit flat on the pad, keeping the mated profile within the board thickness and freeing space above the PCB.
Slim consumer enclosures — Set-top boxes, LED modules, and small appliances often leave little height above the board. The horizontal footprint routes the mating cable parallel to the PCB, so a cover can close without clearance problems and the cavity above stays free for batteries or displays.
Industrial control boards — Lines that move 1A per contact at up to 100V need a stable, solderable link placed beside ICs in a single reflow pass. The CuSn welding piece keeps the socket seated through placement, and the LCP body holds tolerance during the heat.
Light automotive telematics — A cabin control unit sees wide seasonal temperatures. The socket's -40°C to +105°C operating span lets it sit near displays and sensors without drift, while horizontal mounting avoids adding standoff height in a tight dashboard cavity.
Documented electrical basis — Each contact is rated 1A at 100V AC/DC with 20mΩ max initial resistance and 500V AC dielectric withstand, giving a recorded baseline for signal and low-power distribution.
Stable reflow build — Natural LCP at UL94 V-0 and the CuSn anchor suit standard pick-and-place and reflow, so the part drops into existing automated lines without secondary soldering.
Height-saving form — A horizontal body keeps the mated profile within the board thickness, supporting denser stacked layouts where a vertical link would exceed the enclosure budget.
Q: What electrical ratings does the 1.5mm Pitch Horizontal SMT Pin Socket carry?
A: Each contact handles 1A at 100V AC/DC. Contact resistance stays at 20mΩ max initial, dielectric withstand is 500V AC for one minute, and insulation resistance reaches 1000MΩ minimum.
Q: Which boards benefit from the horizontal SMT form?
A: The horizontal profile routes the mating cable parallel to the PCB, using almost no height above the board. That frees the cavity for covers, batteries, or displays in slim enclosures.
Q: What housing and contact materials are used?
A: The housing is natural-color LCP rated UL94 V-0. Contacts are brass with a Tin finish of at least 100 micro-inches over a Nickel underplate of at least 50 micro-inches.
