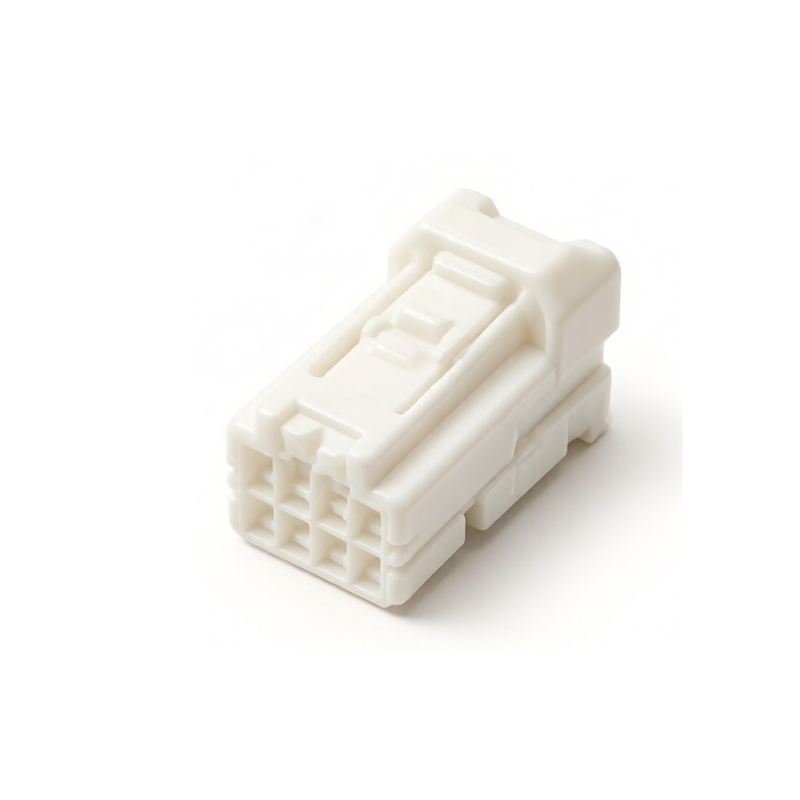

[6098-5269] 2.2Pitch 8P Male Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

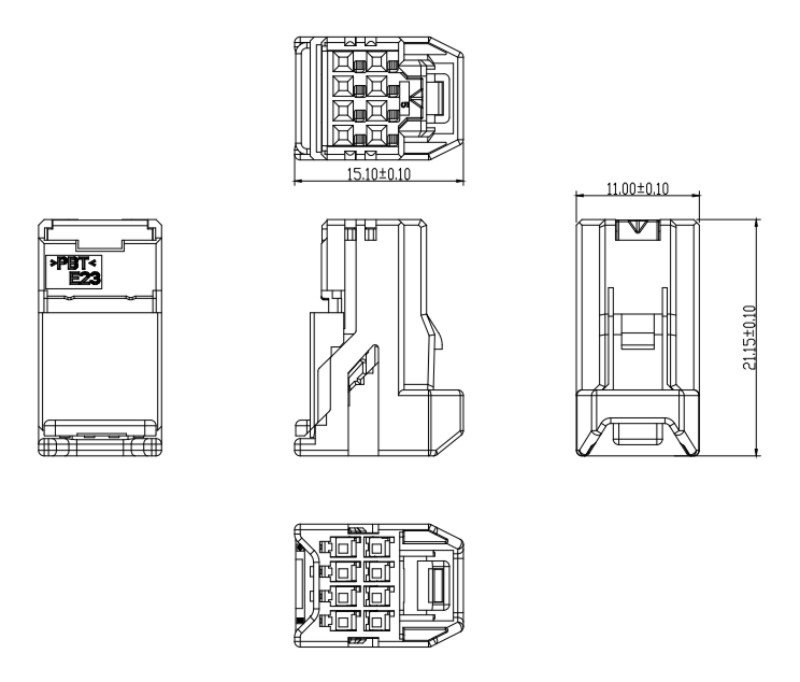

Drawing/Model

Product Features

This 2.2 Pitch 8P Male Housing features a compact form factor with integrated locking tabs that produce a secure, vibration-resistant connection when mated with the female header, maintaining electrical continuity in applications subject to mechanical stress and vibration from equipment operation. The housing is manufactured from high-impact nylon, providing the mechanical durability required for automotive and industrial service environments where connectors may be repeatedly engaged and disengaged during maintenance procedures. Terminal cavities are polarized to accept only correctly oriented crimp contacts, preventing assembly errors that could lead to electrical faults. The connector's small footprint allows dense placement on mounting panels, maximizing the number of circuits that can be accommodated within a given enclosure volume while maintaining adequate clearance for wire routing and ergonomic assembly. Optional strain relief accessories attach to the cable entry side, distributing mechanical loads away from terminal crimp joints and extending harness service life. The housing's material composition ensures dimensional stability through soldering and overmolding processes, maintaining consistent mating performance throughout production.

Application Scenarios

The 2.2 Pitch 8P Male Housing is utilized in automotive trunk release switch modules and fuel door actuator circuits, connecting control signal conductors within the vehicle's body electronics network for convenience features that consumers use regularly. Industrial door lock and access control systems employ this housing for organizing wiring between electric strike plates, request-to-exit sensors, and central security controllers in commercial and institutional facilities. Commercial kitchen ventilation equipment uses it for linking variable speed fan controllers to the main control board through a compact connector interface that must withstand heat and grease-laden atmospheres. In vending and self-service kiosks, the housing connects bill validators, coin mechanisms, and product dispensing motors to the transaction processing unit through a serviceable connector that facilitates field repair and component replacement. The male housing's compact design enables installation in tight panel spaces while providing sufficient contact capacity for basic control and signal applications. Standard cavity geometry accepts commonly available crimp terminals, simplifying harness fabrication and ensuring compatibility with corresponding female headers from multiple industry sources.

Why Choose [6098-5269] 2.2Pitch 8P Male Housing

• Compact 8-pin plug housing of this 2.2Pitch 8P Male Housing offers a space-efficient interface suitable for harness connections in electronics and sensors.

• Integrated locking structure of this 8P Male Housing provides positive retention with mating housing, maintaining reliable contact engagement during vibration and handling.

• Engineering polymer housing construction of this 2.2Pitch 8P Male Housing resists exposure typical of automotive service environments, ensuring structural performance.

• Standard pitch compatibility of this 8P Male Housing with the broad ecosystem simplifies sourcing and supports consistency across multiple wiring programs.

• Proven in high-volume applications with stable quality and available resources for harness design integration and manufacturing support of this 2.2Pitch 8P Male Housing.
