[6098-5279] 2.2Pitch 16P Male Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

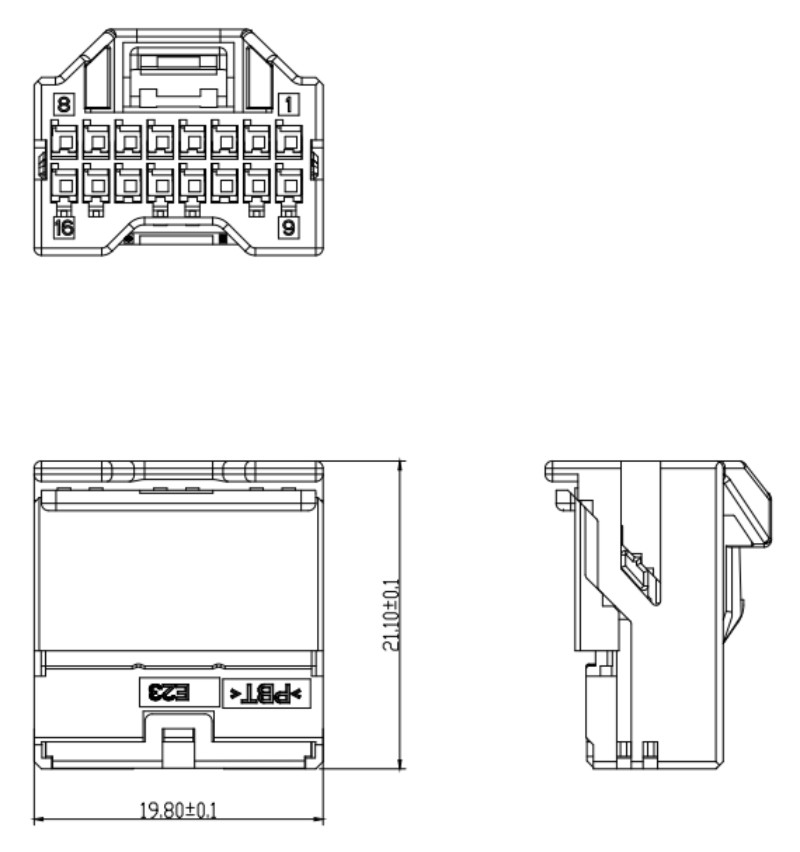

Drawing/Model

Product Features

This 2.2 Pitch 16P Male Housing features a robust construction with integrated locking tabs that engage firmly with the female mating connector, maintaining connection integrity under vibration and mechanical stress encountered in automotive and industrial operating environments. The housing is molded from high-impact nylon that resists cracking and deformation during handling, assembly, and service operations throughout the equipment's operational lifetime. Terminal cavities are polarized to accept only correctly oriented crimp contacts, preventing insertion errors that could create short circuits or open circuits in the finished harness. The compact footprint allows dense connector placement on mounting panels, maximizing the number of circuits that can be accommodated within a given enclosure volume while maintaining adequate wire routing clearance. Optional strain relief accessories attach to the cable entry face, distributing mechanical loads away from terminal crimp joints and extending harness service life in applications subject to cable movement or vibration. Cavity identification markings molded into the housing exterior assist wire routing during harness fabrication and facilitate troubleshooting during maintenance.

Application Scenarios

The 2.2 Pitch 16P Male Housing serves as a cable-side connector in automotive door handle sensor assemblies and keyless entry modules, linking capacitive touch sensors, RFID antenna circuits, and proximity detection electronics to the body control unit for seamless passive entry and start functionality. Industrial security and access control systems employ this housing for connecting card readers, electromagnetic lock drivers, and alarm signaling devices to central security panels that protect commercial and institutional facilities. Commercial point-of-sale terminals use it for organizing the wiring between barcode scanners, receipt printers, and payment devices in retail checkout environments where reliable connections must withstand frequent equipment reconfiguration. In material handling equipment, the housing links safety interlock switches and emergency stop circuits to the machine controller, ensuring that safety-critical shutdown functions operate reliably in all operating conditions. The male housing's compact design enables installation in confined spaces within equipment enclosures while providing sufficient circuit capacity for typical control and signal applications. Standard cavity spacing and terminal compatibility ensure straightforward harness fabrication using commonly available crimp tooling.

Why Choose [6098-5279] 2.2Pitch 16P Male Housing

• 16-pin plug housing of this 2.2Pitch 16P Male Housing offers precise alignment ensuring uniform engagement with receptacle for consistent electrical connectivity.

• Robust locking mechanism of this 16P Male Housing prevents unintended unmating under repeated stress and encountered in automotive and industrial use environments.

• Housing polymer selection of this 2.2Pitch Male Housing provides resistance to chemicals and thermal cycling, maintaining structural integrity throughout service life.

• Compatibility with the standard pitch terminal system of this 16P Male Housing enables straightforward integration with existing designs and available crimping tooling.

• Supported by a mature connector platform with proven quality and available professional resources, this 2.2Pitch 16P Male Housing reduces integration effort.
