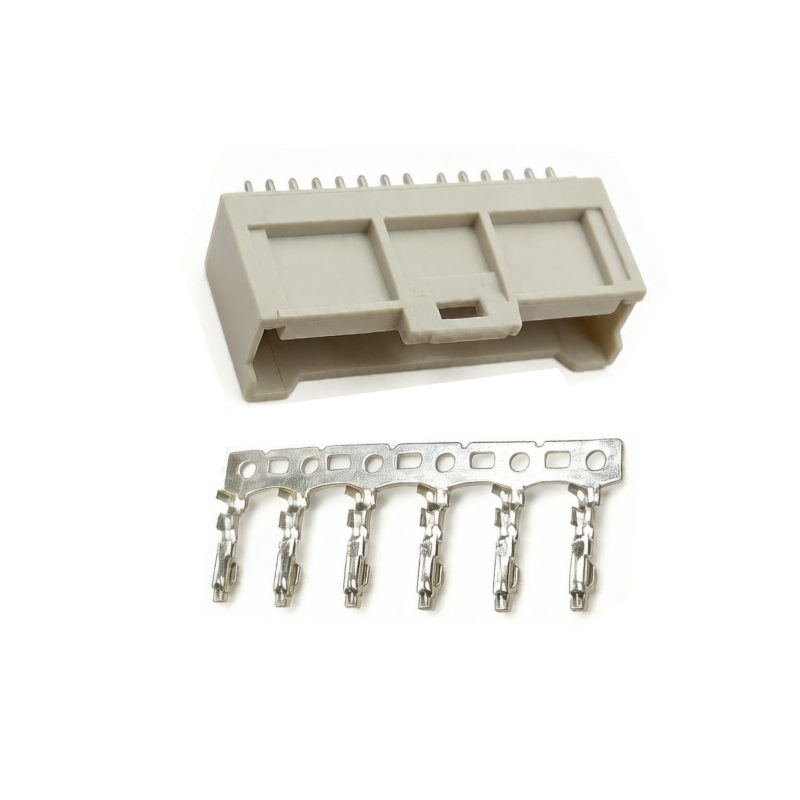

[1318772-1] 2.2Pitch 12P Board Connector

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

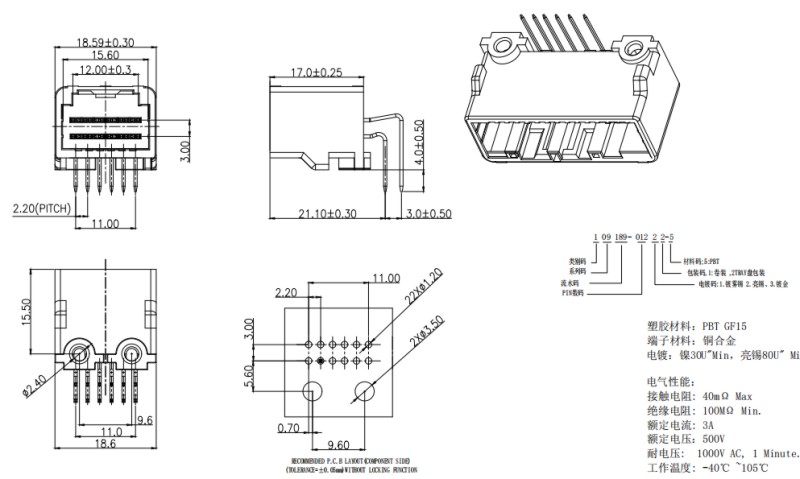

Drawing/Model

Product Features

This 2.2 Pitch 12P Board Connector features a low-profile housing that minimizes height above the PCB surface, a critical consideration for slim consumer product enclosures and automotive interior modules where vertical clearance is limited by design constraints. A built-in latch mechanism provides secure mating with corresponding wire-end housings, generating a noticeable click that confirms full engagement during assembly and eliminates the need for visual verification. Contacts are stamped from copper alloy and finished with tin plating, offering a cost-effective balance of conductivity, durability, and solderability for applications where gold-plated contacts are not required by the circuit design. Molded polarization features ensure correct orientation during mating, preventing damage from reverse insertion attempts that could bend contacts or crack the housing. The housing incorporates a terminal position assurance structure that resists contact back-out under vibration and thermal cycling conditions. Solder tails are designed for reliable through-hole attachment, with geometry optimized for consistent solder wetting during wave soldering processes. The connector's compact dimensions enable high-density board layouts without sacrificing mechanical robustness.

Application Scenarios

The 2.2 Pitch 12P Board Connector provides a compact board-level interface for small appliance control boards, including coffee makers, air purifiers, and countertop cooking devices where limited I/O functions are required and connector cost must be minimized. Its twelve contact positions are well-suited for basic sensor inputs, actuator outputs, and power supply connections within confined enclosure spaces where larger connectors would be impractical. HVAC thermostat modules employ this connector for linking temperature sensors, fan speed controllers, humidity detectors, and display interfaces to the main processing board in wall-mounted control units. In automotive applications, it serves in interior convenience modules such as sunroof controllers and seat memory units that require a moderate number of signal and power circuits without the expense of higher-pin-count connector systems. Industrial handheld instruments and portable test equipment also benefit from its small footprint and reliable contact system for connecting probes, displays, and communication ports in field-serviceable devices. The connector's design prioritizes ease of use during both automated production and field service operations, with intuitive polarization and locking features that reduce assembly errors and service time.

Why Choose [1318772-1] 2.2Pitch 12P Board Connector

• Moderate 12-position circuit count of this 2.2Pitch 12P Board Connector offers a practical balance between connectivity capacity and connector size for mid-density applications.

• Accurate terminal retention structure of this 12P Board Connector maintains reliable contact alignment during mating, supporting consistent performance over service life.

• Suitable for automotive sensor connectors and instrumentation where a compact yet dependable multi-circuit PCB interface is required, this 2.2Pitch Board Connector excels.

• Standard pitch of this 12P Board Connector enables compatibility with available wire-end housings and terminals, streamlining procurement and reducing component variety.

• Mature product design with established manufacturing quality of this 2.2Pitch 12P Board Connector provides consistent dimensional accuracy and electrical performance across batches.
