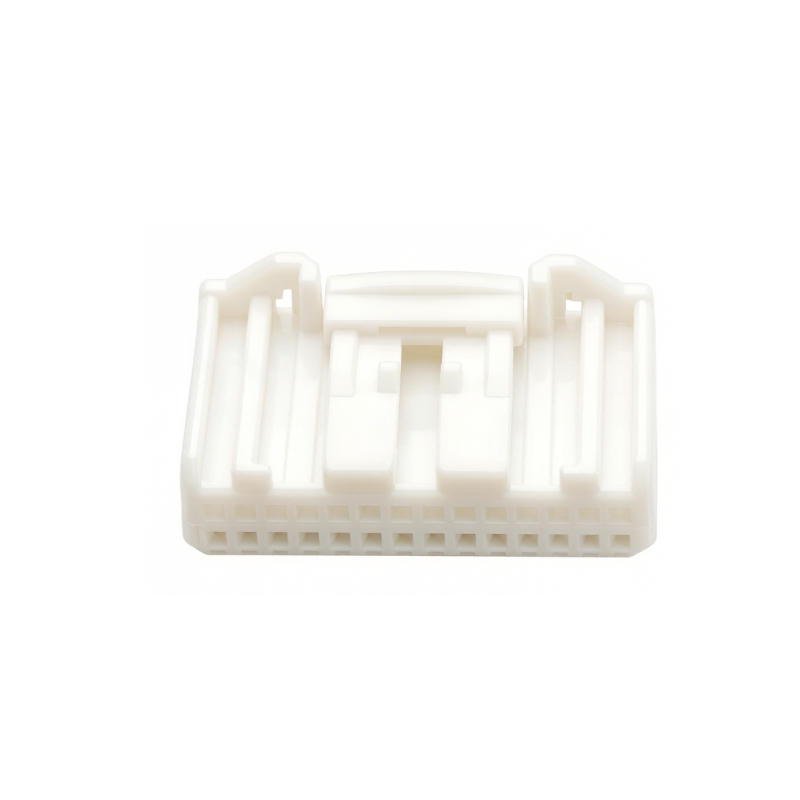

[1565380-1] 2.2Pitch 28P Wire End Male Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

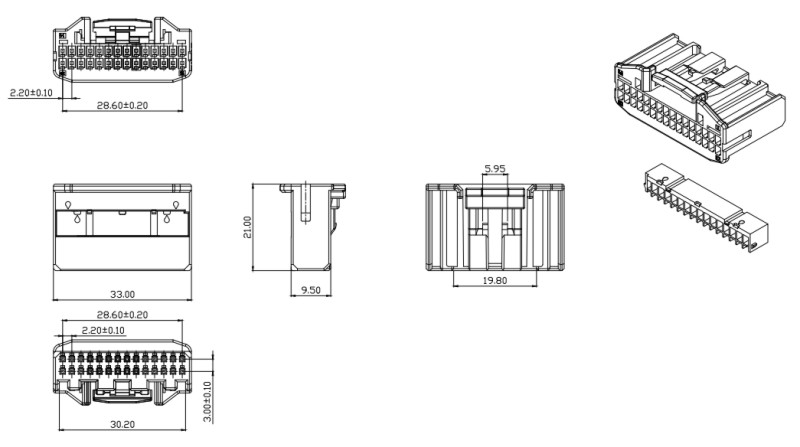

Drawing/Model

Product Features

This 2.2 Pitch 28P Wire End Male Housing features a robust construction with integrated locking ears that engage positively with the female mating connector, resisting disengagement from vibration or accidental cable pulls during vehicle operation and service procedures. The housing is injection-molded from high-impact nylon, providing mechanical resilience against the handling stresses encountered during vehicle assembly, installation, and field service operations throughout the equipment's operational lifetime. Terminal cavities are polarized to accept only correctly oriented male crimp terminals, preventing insertion errors that could create short circuits or open circuits in the finished harness assembly. A natural or color-coded finish supports visual identification during manufacturing and maintenance operations, helping technicians quickly locate the correct connector in complex multi-connector panel arrangements. The housing's wall geometry is optimized to provide adequate dielectric spacing between adjacent circuits while maintaining an overall compact envelope that facilitates dense connector placement. Multiple keying options are available to differentiate between connectors with identical cavity counts but distinct circuit assignments, eliminating cross-mating risk.

Application Scenarios

The 2.2 Pitch 28P Wire End Male Housing provides a cable-side connector interface for board-to-wire connections in automotive body electronics, including door lock controllers, window lift modules, mirror adjustment systems, and ambient lighting controllers. Its twenty-eight circuit positions accommodate a comprehensive set of signal and power conductors within a single organized connector body, simplifying harness architecture and reducing the total number of discrete wire terminations required. Industrial machinery builders employ this housing for signal distribution between control cabinets and remote sensor stations located throughout automated production lines. In commercial building automation, it connects HVAC damper actuators and lighting relay modules to centralized building management controllers that regulate energy consumption and occupant comfort across multiple zones. The male housing design mates with corresponding female board-mount connectors, establishing a reliable separable connection that facilitates both initial assembly and subsequent maintenance access without requiring permanent wire splicing. The standardized pitch and cavity layout ensure compatibility with commonly available crimp terminals and application tooling, streamlining harness production workflows.

Why Choose [1565380-1] 2.2Pitch 28P Wire End Male Housing

• 28-pin plug design of this 2.2Pitch Male Housing provides high circuit count in a compact footprint for efficient multi-channel connections in control and body harnesses.

• Positive locking mechanism of this 28P Wire End Male Housing firmly engages the female receptacle, preventing accidental unmating under shock and continuous vibration loads.

• Durable polymer molding of this 2.2Pitch Male Housing resists common fluids and temperature extremes, ensuring consistent dimensional stability over its service life.

• Standard pitch of this 28P Wire End Male Housing ensures broad terminal and tooling compatibility, supporting design flexibility across multiple harness programs.

• Proven in volume automotive production with a stable supply chain, this 2.2Pitch Male Housing has professional technical documentation for straightforward harness integration.
