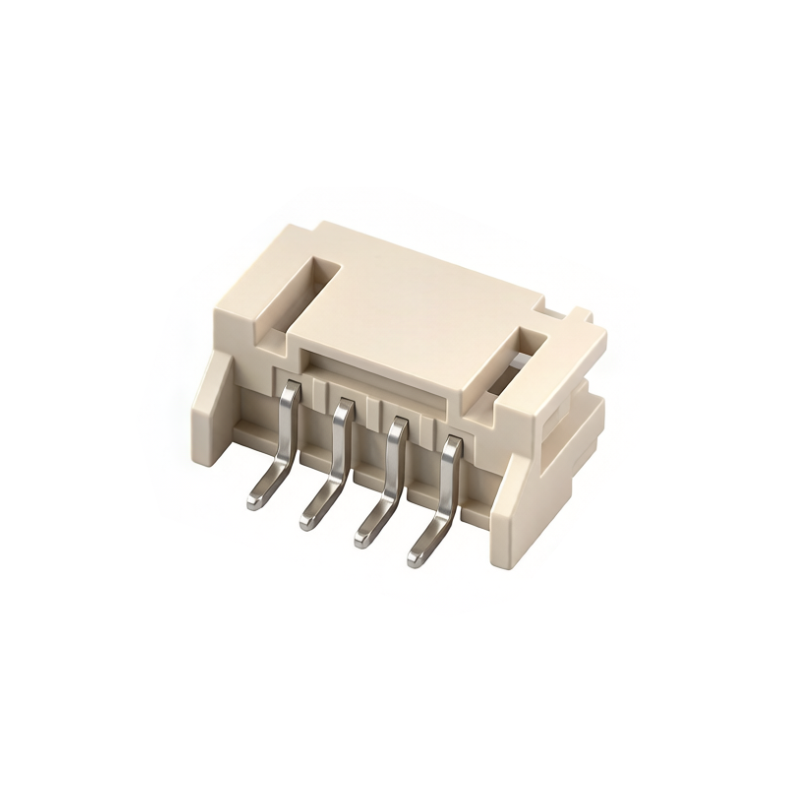

2.0mm Pitch Horizontal SMT Pin Socket

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact

customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

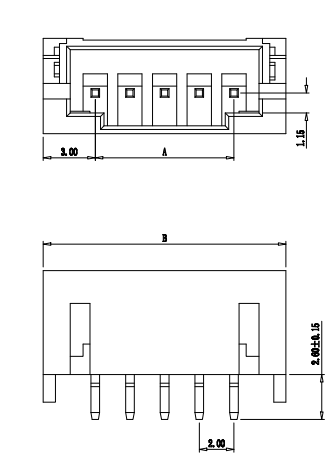

Drawing/Model

Product Features

2.0mm Pitch Horizontal SMT Pin Socket — key construction and ratings below.

Housing — LCP in black, rated UL94 V-0. The material keeps its shape through reflow and limits flame spread, supporting automated SMT assembly.

Contacts — H65 brass terminals with nickel underplate of at least 30µin and tin finish of at least 100µin, matte or bright. The stack supports standard soldering and slows surface oxidation at the mating point.

Fixing tab — C5191 phosphor bronze, nickel-underplated and tin-finished to the same 30µin / 100µin minima. It holds the socket to the board and preserves pin alignment during placement and reflow.

Electrical limits — 2.0A per contact, 250V AC/DC, contact resistance 20mΩ max, dielectric withstand 800V AC for 1 minute, insulation resistance 1000MΩ min.

Thermal range — operating temperature spans -40°C to +85°C, covering indoor and light industrial use.

Application Scenarios

2.0mm Pitch Horizontal SMT Pin Socket — where it fits.

Slim consumer enclosures — Set-top boxes, sensors, and small appliances often leave little height above the board. The horizontal footprint routes the cable parallel to the PCB, so a cover can close without clearance problems.

Power and signal distribution boards — Devices that move 2.0A per line at up to 250V need a stable, solderable contact. Tin-plated H65 terminals and the anchored fixing tab keep the link intact through reflow and field service.

Light industrial control — With a -40°C to +85°C range and UL94 V-0 housing, the socket works in indoor panels and mild environments where cost and board height drive the part choice.

Why Choose 2.0mm Pitch Horizontal SMT Pin Socket

2.0mm Pitch Horizontal SMT Pin Socket — reasons it holds up.

Reel-ready SMT build — The LCP body and horizontal terminal form suit standard pick-and-place and reflow, so the part drops into existing lines without special tooling or fixtures.

Stable plating stack — H65 brass with a 30µin nickel barrier and 100µin tin finish gives a solderable, oxidation-resistant surface that holds contact resistance at 20mΩ max across the rated life.

Environment-rated housing — Black LCP at UL94 V-0 with a -40°C to +85°C operating span keeps the socket serviceable in indoor and light industrial products.

FAQs

Q: What electrical ratings does the 2.0mm pitch horizontal SMT pin socket carry?

A: Each contact handles 2.0A and the socket is rated 250V AC/DC. Contact resistance stays at 20mΩ max, dielectric withstand is 800V AC for one minute, and insulation resistance reaches 1000MΩ min.

Q: How can the horizontal SMT layout help a dense board design?

A: The horizontal profile routes the mating cable parallel to the PCB, so it uses almost no height above the board. That frees space for enclosures, covers, and stacked parts in slim products.

Q: What plating is applied to the terminals and fixing tab?

A: Terminals use H65 brass with a 30µin nickel underplate and 100µin tin finish, matte or bright. The C5191 phosphor bronze fixing tab uses the same nickel and tin stack, which supports standard soldering.

Q: Which environments suit a socket rated -40°C to +85°C?

A: The -40°C to +85°C range with a UL94 V-0 LCP housing fits indoor electronics, appliance controls, and light industrial panels. It is not intended for under-hood automotive or outdoor exposure.
