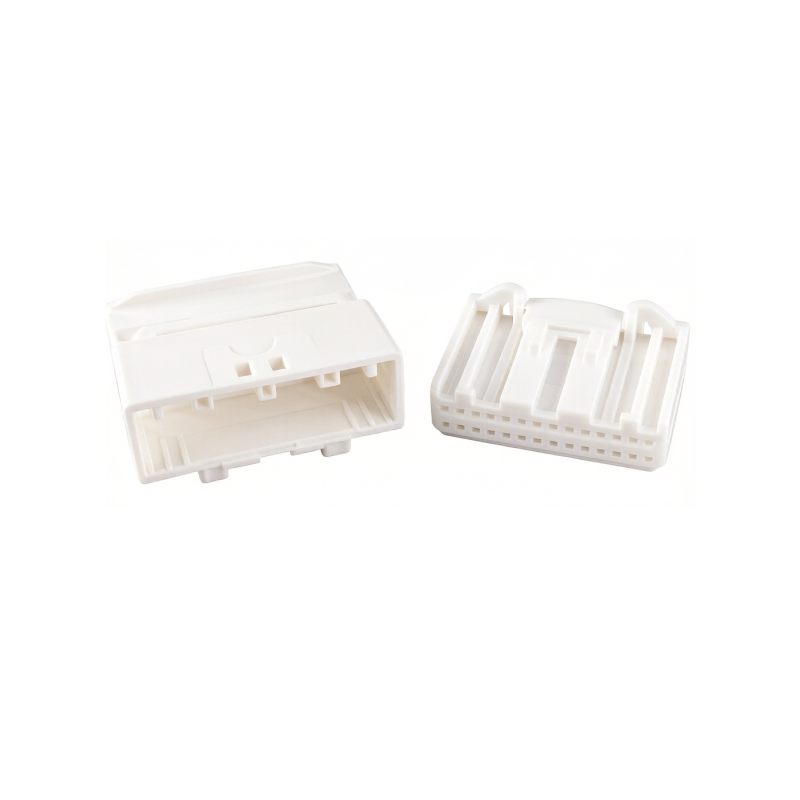

[2005091-1] 2.2Pitch 32P Wire End Female Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

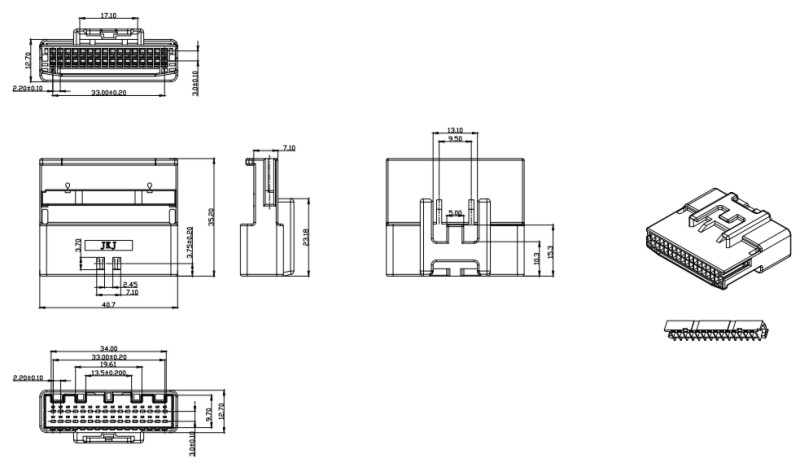

Drawing/Model

Product Features

This 2.2 Pitch 32P Wire End Female Housing features a robust construction with an integrated locking mechanism that provides audible and tactile engagement confirmation, enabling operators to verify correct assembly without visual inspection of the connector interface in confined installation spaces. The housing material meets UL94 V-0 flammability requirements, providing self-extinguishing properties that enhance equipment safety in enclosed electronic compartments where multiple heat-generating components operate in close proximity. Terminal cavities are polarized to accept only properly oriented crimp contacts, preventing insertion errors that could create short circuits or open circuits in the finished harness. Strain relief ribs molded into the cable entry area distribute tensile loads across a broader wire section, protecting crimp joints from fatigue failure caused by repeated flexing or pulling during vehicle operation and maintenance. The housing's compact footprint allows efficient use of available space within wire ducts and connector mounting panels. Optional color-coding differentiates between connectors of similar appearance, streamlining assembly and reducing the likelihood of cross-mating errors.

Application Scenarios

The 2.2 Pitch 32P Wire End Female Housing is a key cable-side component in automotive body control modules, linking door lock actuators, interior lighting circuits, window motor drives, and mirror heating elements to the central electronics unit through a consolidated thirty-two-circuit connector assembly. In industrial robotic arm controllers, it organizes the numerous signal cables connecting joint encoders, torque sensors, and end-effector actuators to the motion control processor within the robot base or controller cabinet. Agricultural equipment manufacturers employ this housing for implement connection interfaces that must withstand exposure to dust, moisture, and chemical sprays while maintaining electrical continuity season after season. Commercial building automation systems use it for connecting HVAC zone controllers to damper actuators and temperature sensors distributed across multiple floors and zones. The female cavity design accommodates standard crimp terminals, and the housing's polarization system ensures correct mating with the corresponding male header, preventing wiring errors that could damage sensitive electronic components during initial installation or subsequent field service operations.

Why Choose [2005091-1] 2.2Pitch 32P Wire End Female Housing

• 32-position female receptacle of this 2.2Pitch 32P Female Housing consolidates high counts into one connector, streamlining architecture and reducing assembly complexity.

• Robust locking structure of this Wire End 32P Female Housing resists accidental disconnection under stress, maintaining reliable multi-channel signal and power distribution.

• Engineering-grade polymer housing of this 32P Female Housing ensures dimensional stability under thermal cycling, preserving alignment and retention over service life.

• Standard pitch ecosystem compatibility of this 2.2Pitch 32P Female Housing allows flexible terminal selection and simplified integration with existing designs and tooling.

• Proven in automotive control module applications with comprehensive supply chain support, this 32P Female Housing facilitates rapid program integration and qualification.
